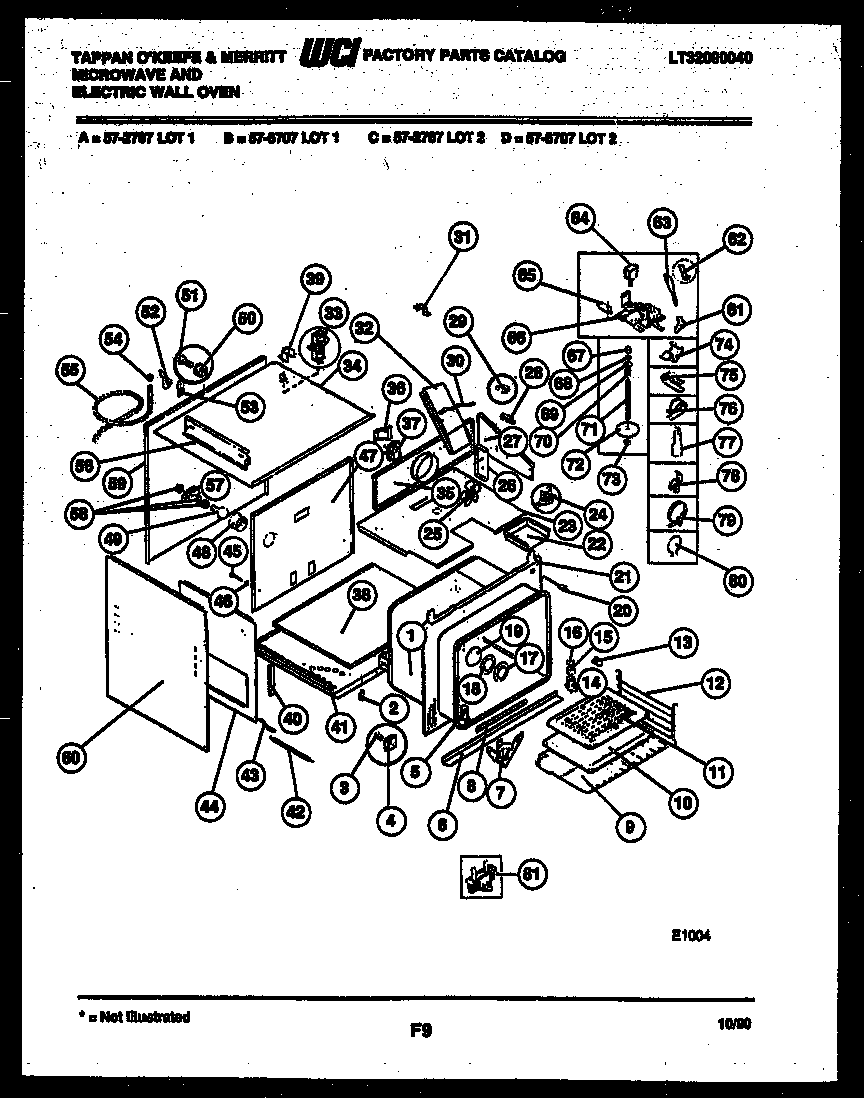

57-6707-10-01 03 – LOWER BODY PARTS

57-6707-10-01 03 – LOWER BODY PARTS

Written by

in

57-6707-10-01 03 – LOWER BODY PARTS

Products

PositionProduct
1LINER-OVEN
2WCI 08010560
3GROMMET-SPACER MTG (4)
4WCI 08017002
5WCI 08017003
6WCI 08014516
7AWCI 5303207693
7WCI 5303208218
8SHIELD-OVEN DOOR-BTM.
9WCI 591T038P09
10PAN-BROILER
11WCI 5303131356
12GLIDE-OVEN RACK (2)
13BRACKET-RACK GLIDE (4)
14WCI 08012165
15WCI 08012166
16WCI 08012167
17COLLAR-LENS MTG
18WCI 269T040P05
19WCI 08010611
20WCI 08012146
21FRONT-FRAME (INCLUDE REF. 3 & 4)
22BOX-LATCH
23SHIELD-WOOL-TOP
24WCI 08012168
25AWCI 08012199
25WCI 5303011668
26WCI 072T819F01
27WCI 024T079F01-18
27WCI 024T079F02-18
28WCI 08012033
30WCI 08012171
31WCI 08012172
32WCI 08014458
33WCI 558T031P02
34WCI 08014454
35COVER-INSTRUMENT-RR
36WCI 072T274F01
37WCI 08012183
38WCI 3011483
39WCI 174T299F01
40WCI 024T080F01-18
41WCI 036T030W05-18
42SPRING-DOOR CAM (2)
43BRACKET-SPRING ADJUST (2)
44WRAPPER-SIDE (INNER) (2)
45WCI 08010579
46WCI 789T053P25
47WCI 805T009F05-18
48WCI 3014480
49316538904 Frigidaire Oven Lamp Light
505303013272 Frigidaire Oven Nut
51SCREW-GROUND PL. MTG.
52WCI 5301506869
53WCI 554T356F01
54BUSHING-INSULATION (2)
56AWCI 008T502F02-18
56WCI 008T502F01-18
57WCI 08010585
58WCI 662T020P01
59WCI 5303206969
60WCI 5303014707
61WCI 5308010597
62WCI 08013188
63AWCI 08016997
63HANDLE-LATCH MECH.
64WCI 5303207825
65WCI 695T079P01
66WCI 08012189
66ASPRING-DOOR LATCH
67WCI 124T011P01
68RETAINER-RING CLIP
69WCI 08012152
70WCI 08012151
71WCI 08012150
72WCI 174T141F01
73WCI 5303203103
74CLIP-OVEN TO FRONT FRAME (8)
