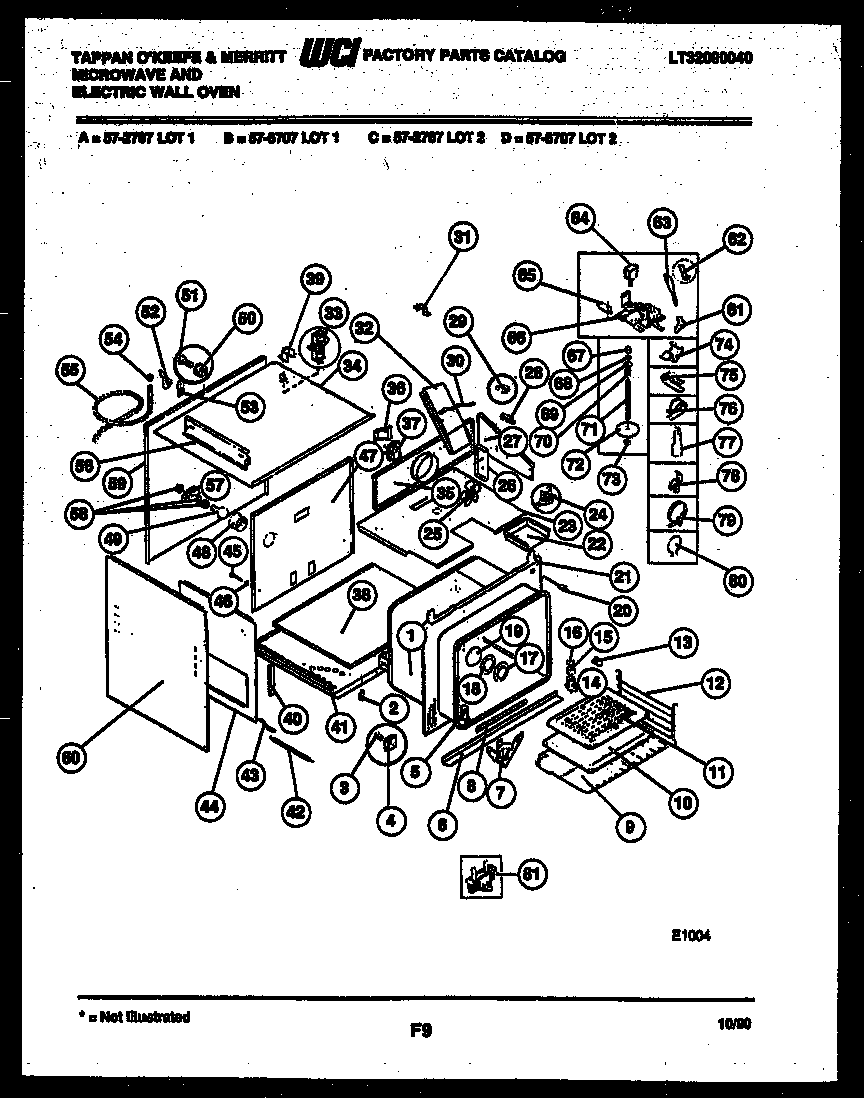

57-6707-10-02 03 – LOWER BODY PARTS – Aparts

57-6707-10-02 03 – LOWER BODY PARTS

Products

Position	Product
1	LINER-OVEN
2	WCI 08010560
3	GROMMET-SPACER MTG (4)
4	WCI 08017002
5	WCI 08017003
6	WCI 08014516
7A	WCI 5303207693
7	WCI 5303208218
8	SHIELD-OVEN DOOR-BTM.
9	WCI 591T038P09
10	PAN-BROILER
11	WCI 5303131356
12	GLIDE-OVEN RACK (2)
13	BRACKET-RACK GLIDE (4)
14	WCI 08012165
15	WCI 08012166
16	WCI 08012167
17	COLLAR-LENS MTG
18	WCI 269T040P05
19	WCI 08010611
20	WCI 08012146
21	FRONT-FRAME (INCLUDE REF. 3 & 4)
22	BOX-LATCH
23	SHIELD-WOOL-TOP
24	WCI 08012168
25A	WCI 08012199
25	WCI 5303011668
26	WCI 072T819F01
27	WCI 024T079F01-18
27	WCI 024T079F02-18
28	WCI 08012033
30	WCI 08012171
31	WCI 08012172
32	WCI 08014458
33	WCI 558T031P02
34	WCI 08014454
35	COVER-INSTRUMENT-RR
36	WCI 072T274F01
37	WCI 08012183
38	WCI 3011483
39	WCI 174T299F01
40	WCI 024T080F01-18
41	WCI 036T030W05-18
42	SPRING-DOOR CAM (2)
43	BRACKET-SPRING ADJUST (2)
44	WRAPPER-SIDE (INNER) (2)
45	WCI 08010579
46	WCI 789T053P25
47	WCI 805T009F05-18
48	WCI 3014480
49	316538904 Frigidaire Oven Lamp Light
50	5303013272 Frigidaire Oven Nut
51	SCREW-GROUND PL. MTG.
52	WCI 5301506869
53	WCI 554T356F01
54	BUSHING-INSULATION (2)
56A	WCI 008T502F02-18
56	WCI 008T502F01-18
57	WCI 08010585
58	WCI 662T020P01
59	WCI 5303206969
60	WCI 5303014707
61	WCI 5308010597
62	WCI 08013188
63A	WCI 08016997
63	HANDLE-LATCH MECH.
64	WCI 5303207825
65	WCI 695T079P01
66	WCI 08012189
66A	SPRING-DOOR LATCH
67	WCI 124T011P01
68	RETAINER-RING CLIP
69	WCI 08012152
70	WCI 08012151
71	WCI 08012150
72	WCI 174T141F01
73	WCI 5303203103
74	CLIP-OVEN TO FRONT FRAME (8)
