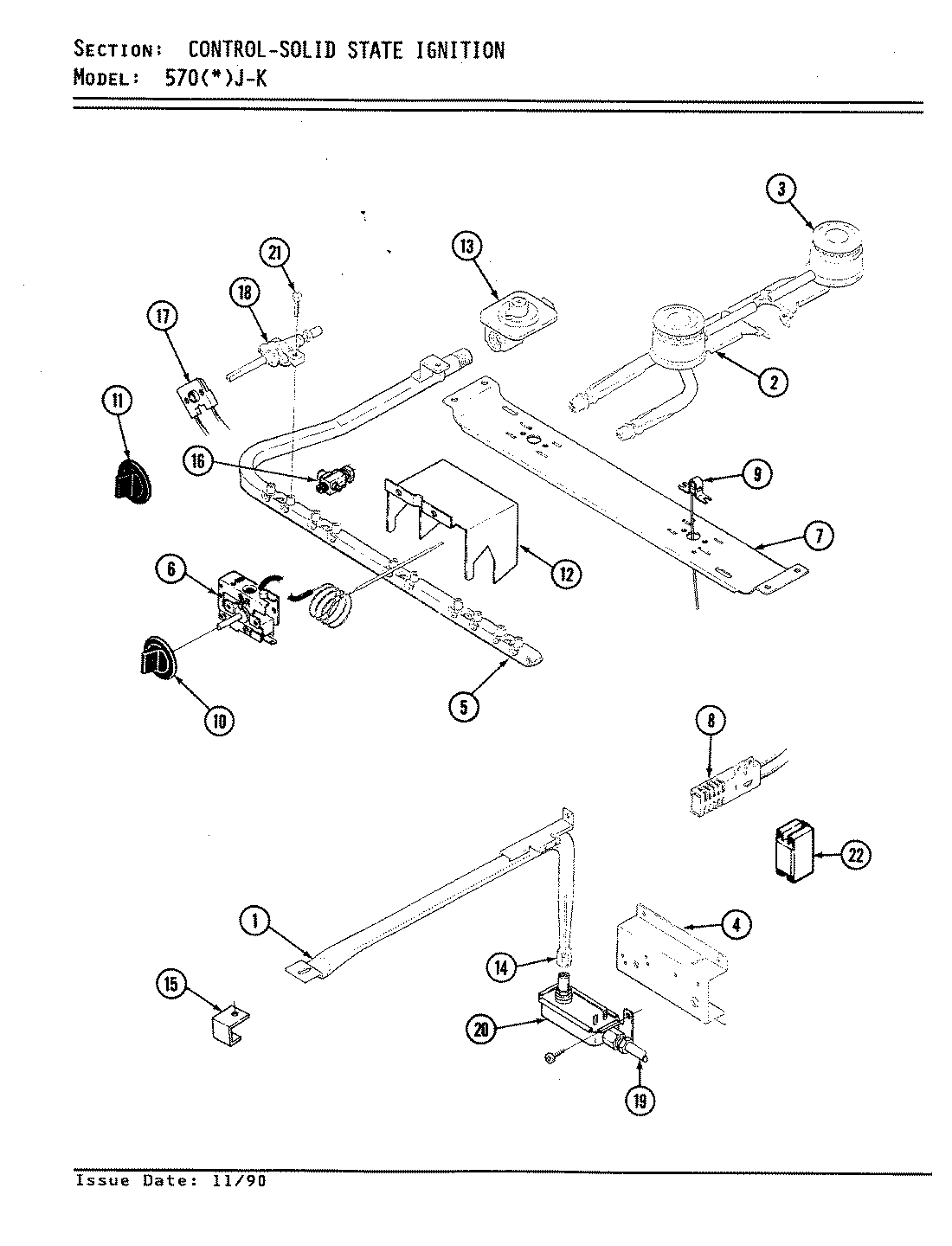

570WJ-K 03 – CONTROL SYSTEM (SOLID STATE IGNITION)

570WJ-K 03 – CONTROL SYSTEM (SOLID STATE IGNITION)

Written by

in

570WJ-K 03 – CONTROL SYSTEM (SOLID STATE IGNITION)

Products

PositionProduct
1MAY 3403A015-45
2MAY 7505P173-60
3MAY 7505P172-60
4MAY 3807F370-45
5MAY 7513P129-60
5MAY 7513P100-60
6W10828565 Whirlpool Screw
6MAY 7404P062-60
7MAY 3807F354-80
8MAY 7432P064-60
9MAY 7432P029-60
9MAY 7432P028-60
10MAY 7731P040-60
11MAY 7733P015-60
12MAY 4005F320-51
13MAY 7510P022-60
14MAY 3411F006-35
15MAY 3807F336-51
16MAY 7502P002-60
17MAY 7403P259-60
17MAY 7403P285-60
17MAY 7403P216-60
17WP7403P190-60 Whirlpool Switch
18MAY 7502P167-60
18MAY 7502P127-60
19MAY 3414F085-44
20MAY 7501P106-60
20MAY 7501P015-60
21MAY 7101P043-60
21MAY 7101P296-60
22MAY 7431P006-60
