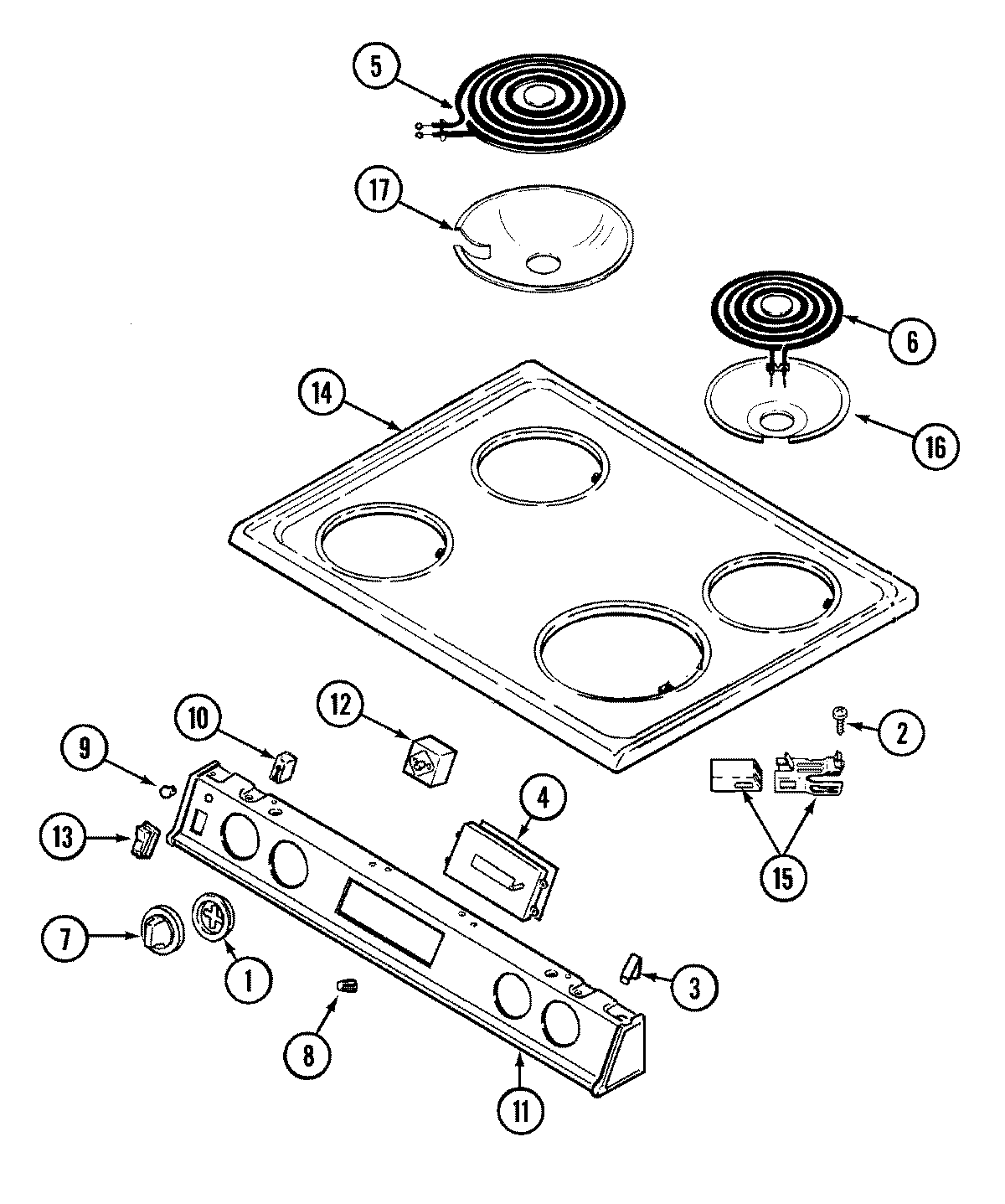

5892VVV 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7740P023-60
2	SCREW
3	MAY 7112P087-60
4	MAY 74003191
4	MAY 7601P279-60
4	MAY 7101P346-60
5	MAY 7406P080-60
5	MAY 74004087
5	MAY 7406P088-60
5	MAY 74001775
6	MAY 7406P087-60
6	WPW10259868 Whirlpool Surface Heating Element
6	MAY 74001777
6	MAY 74004088
7	MAY 7731P081-60
8	MAY 7711P493-60
9	W11690131 Whirlpool Light Lens
10	W10852510 Whirlpool Indicator Light
11	MAY 7722P135-60
11	MAY 74003009
11	SCREW (8BX3/8-NI)
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	SCREW
12	WP7403P239-60 Whirlpool Oven Switch
13	MAY 7403P200-60
14	WP74003976 Whirlpool Screw
14	MAY 74001248
14	SCREW
15	MAY 1430306K
16	MAY 74001519
16	MAY 7725P048-60
16	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
17	MAY 74001518
17	MAY 7725P047-60
18	MAY 74001671
18	MAY 74001583
18	MAY 74001589
18	MAY 5170P228-60
19	MAY 8113P068-60
19	MAY 8113P026-60
20	MAY 16000329
