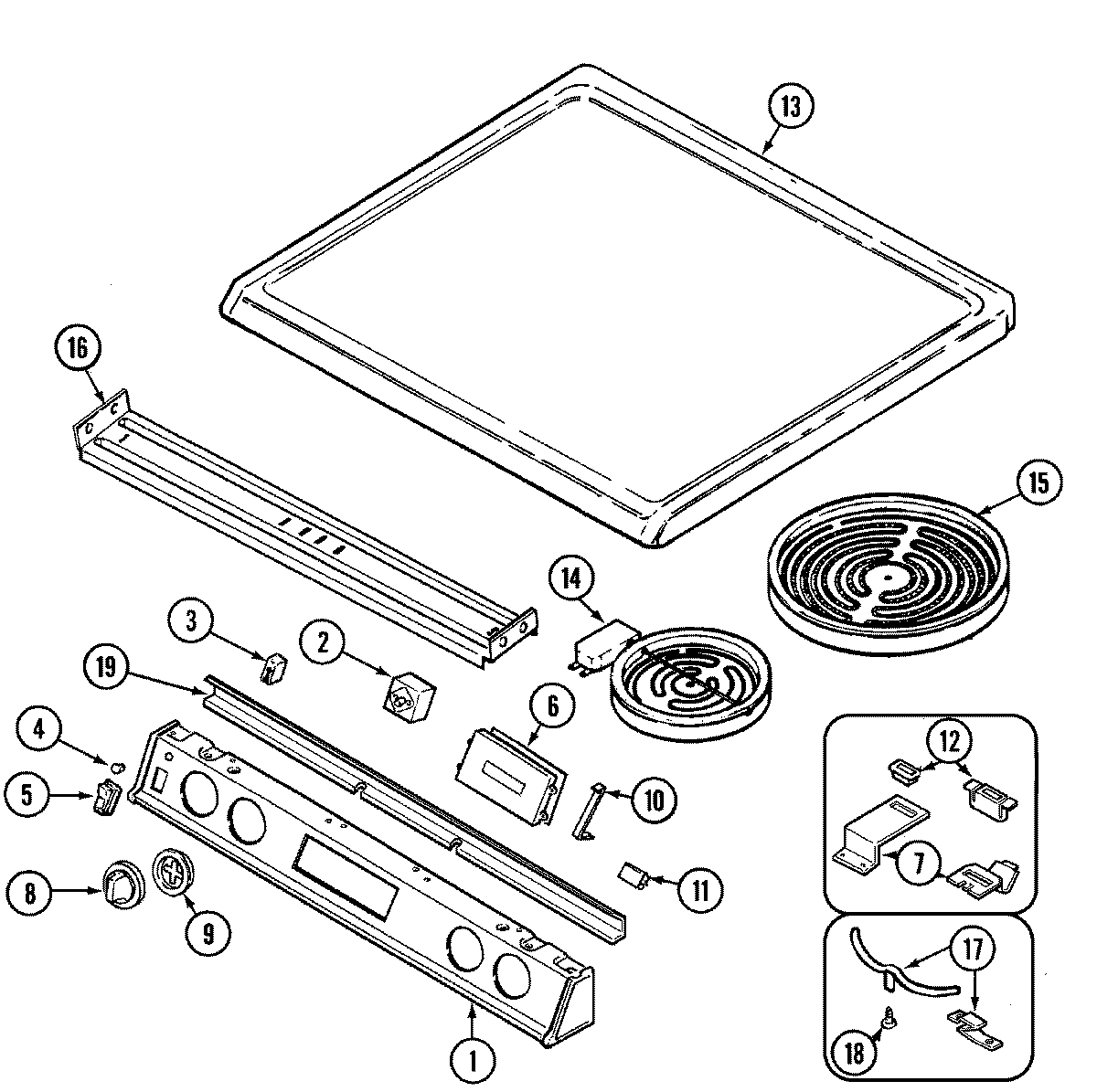

5898VVV 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003009
1	MAY 7722P135-60
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 74002272
6	MAY 7601P279-60
6	MAY 7711P493-60
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7731P081-60
9	MAY 7740P023-60
10	MAY 74003191
11	MAY 7112P087-60
11	MAY 7112P102-60
12	MAY 7407P098-60
12	MAY 74003043
13	MAY 5706S056-81
13	MAY 74003022
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY 7406P074-60
14	MAY 12500041
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 7406P073-60
15	MAY 12500040
16	MAY 3807F390-45
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74002976
17	MAY 8004P015-60
18	WP59002061 Whirlpool Microwave Screw
19	MAY 74002647
19	MAY 5195D097-60
19	MAY 5170P228-60
19	MAY 74001583
19	MAY 5175D076-60
20	MAY 8113P068-60
20	MAY 16007454
21	MAY 16000329
