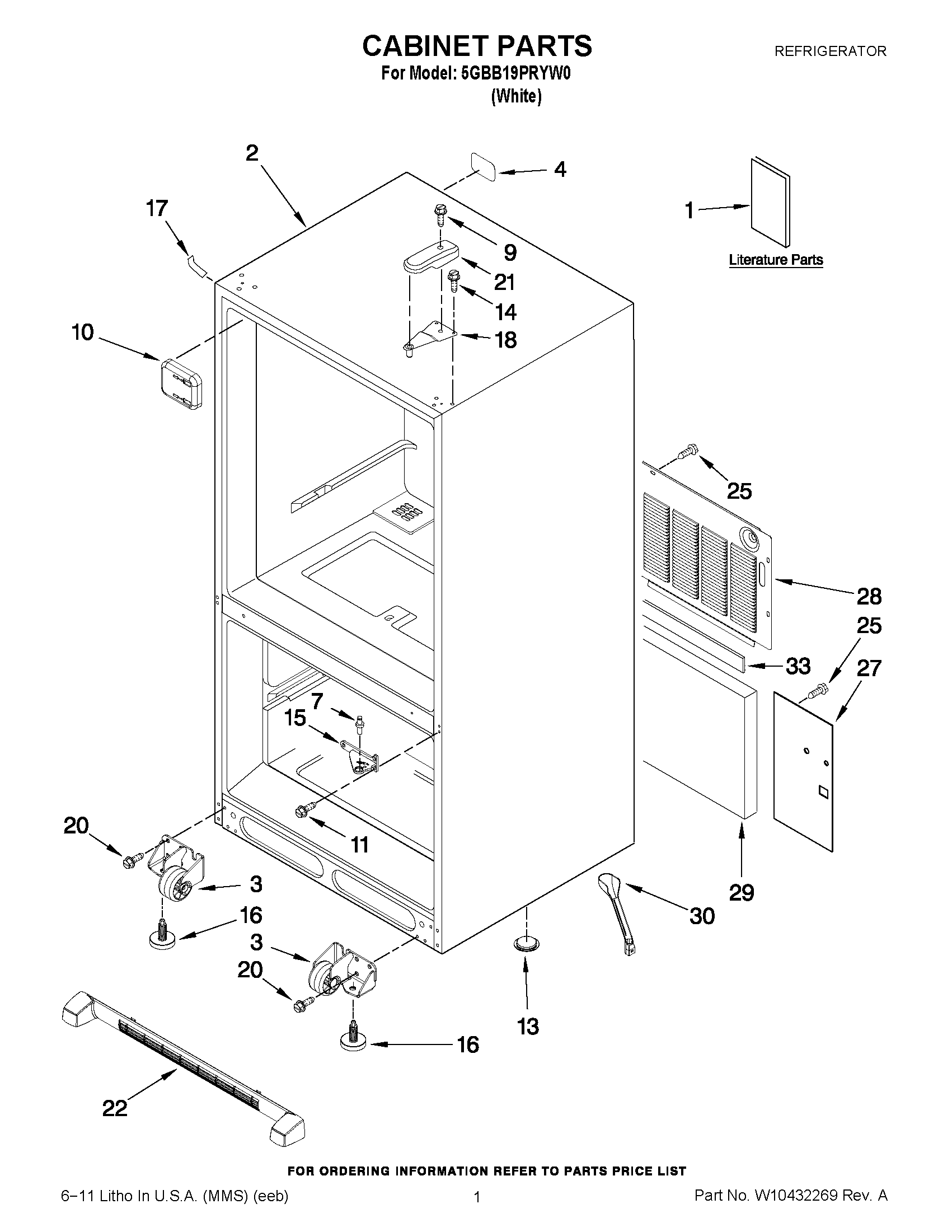

5GBB19PRYW0 01 – CABINET PARTS

Products

Position	Product
1	MAY 12828189SP
1	MAY W10308619
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSY. (FRONT) (RIGHT)
3	ROLLER ASSY. (FRONT) (LEFT)
4	LABEL-FILL TUBE
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	Grille Assembly (White)
25	SCREW (10)
27	MAY W10217701
28	MAY W10211980
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
