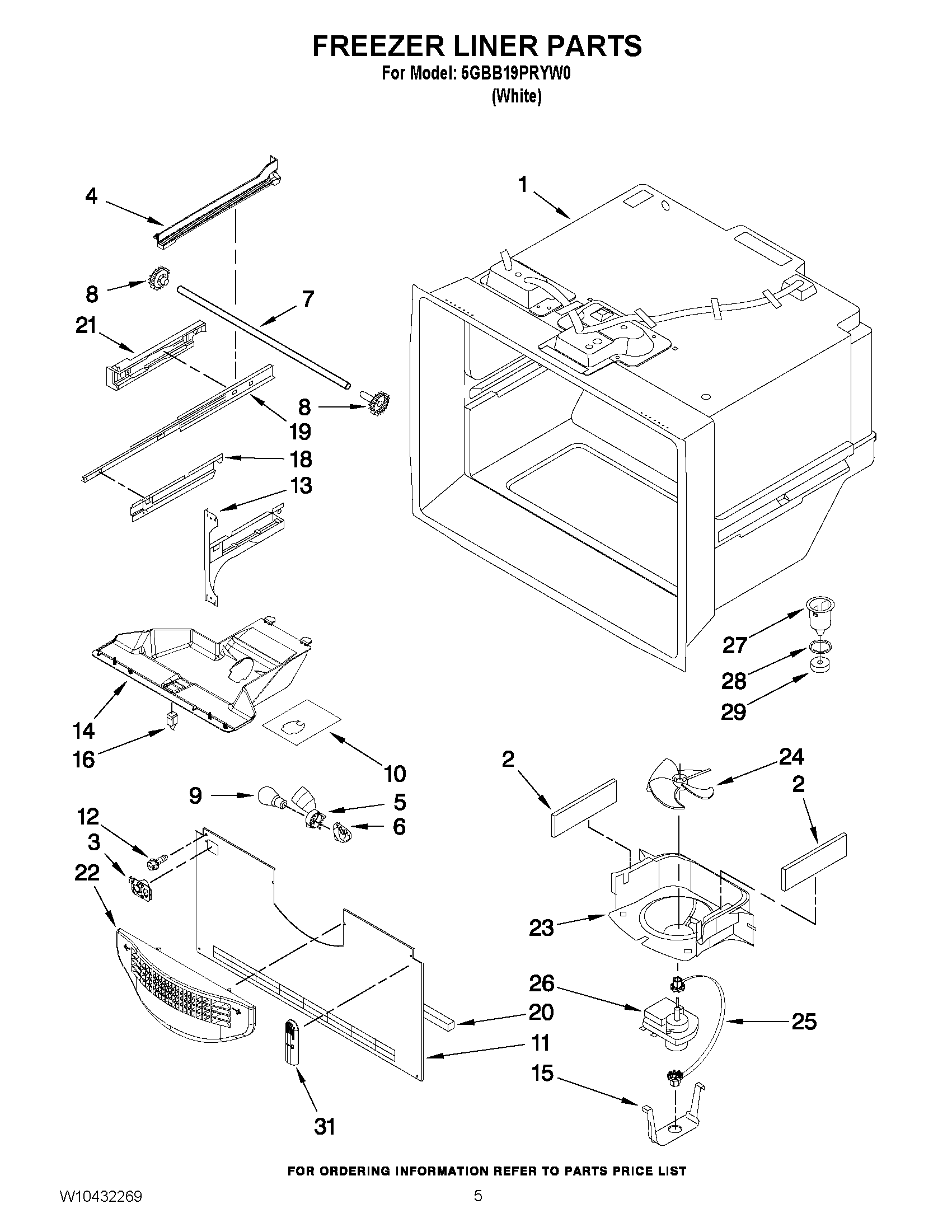

5GBB19PRYW0 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4RACK-SIDE (RIGHT)
4RACK-SIDE (LEFT)
5SHROUD-LGHT SOCKET
6MAY W10134764V
7SHAFT-RACK
812002497 Whirlpool Refrigerator Drawer Gear Kit
9MAY A0282808V
10FOIL-FZ LIGHT
11MAY W10308419
12MAY 12990101
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466114
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19MAY W10120018
20MAY 12739111
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY 10449516
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
