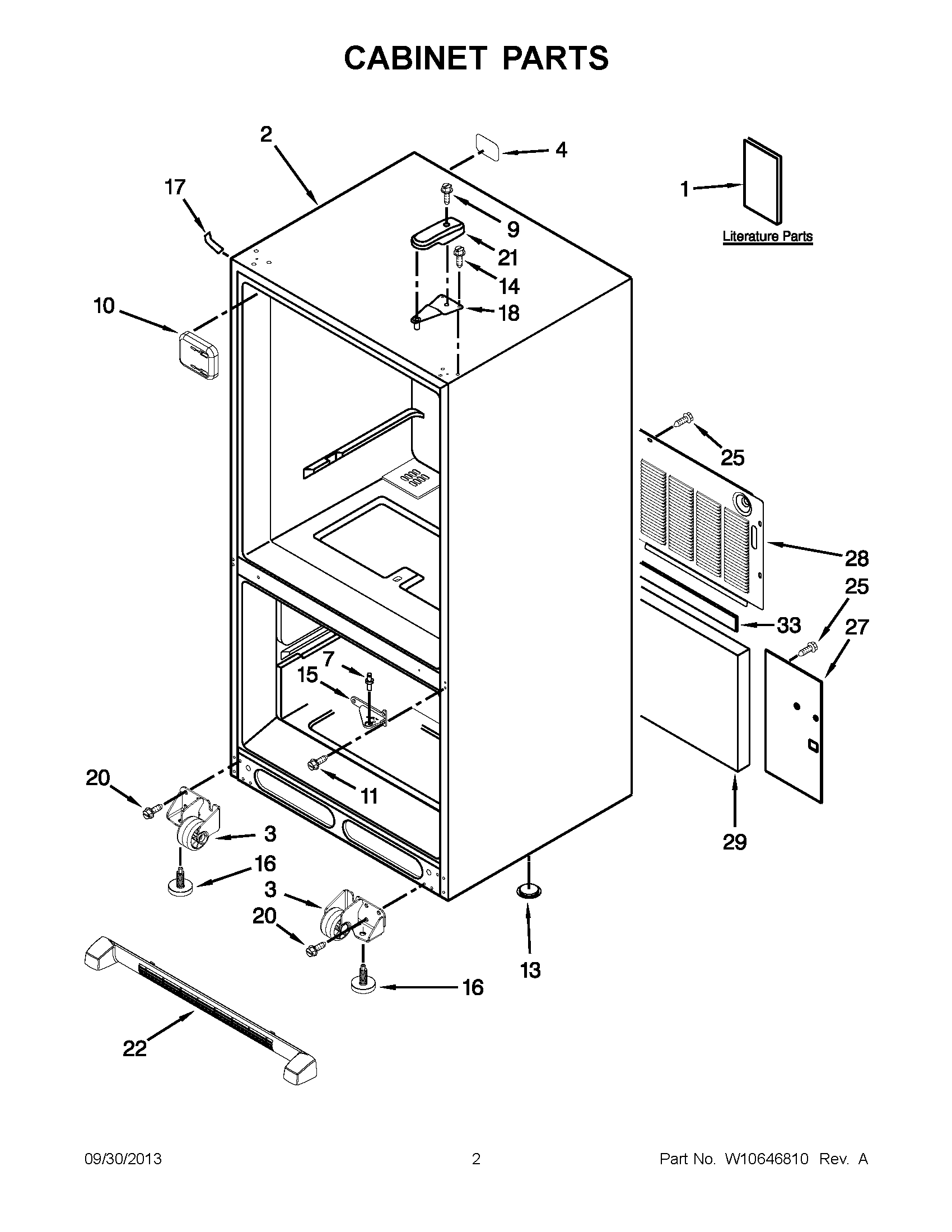

5GBL22PRAA00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10308619
1	MAY 12828189SP
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSEMBLY (LEFT HAND)
3	ROLLER ASSEMBLY (RIGHT HAND)
4	LABEL-FILL TUBE
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	MAY W10339086
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103AP
16	Brake, Foot
17	COVER, CORNER (GREY)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601AP
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (GREY)
25	SCREW (10)
27	MAY W10217701
28	MAY W10212535
29	Insulation, Sound
33	MAY B5759655
