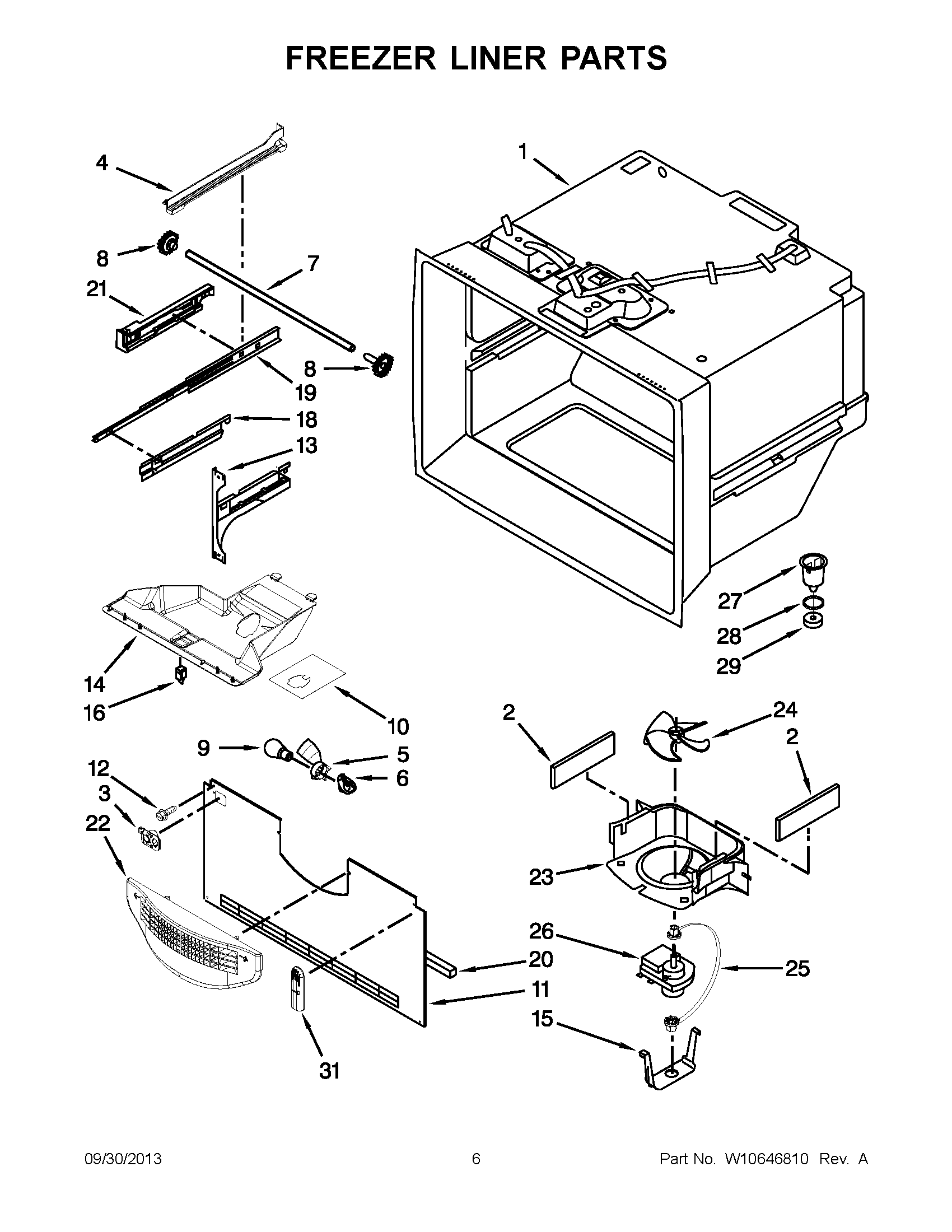

5GBL22PRAA00 04 – FREEZER LINER PARTS

5GBL22PRAA00 04 – FREEZER LINER PARTS

Written by

in

5GBL22PRAA00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4MAY W10516603
4MAY W10516602
5SHROUD-LGHT SOCKET
6MAY W10134764V
7MAY 12812902WD
812002497 Whirlpool Refrigerator Drawer Gear Kit
9MAY A0282808V
10FOIL-FZ LIGHT
11MAY W10308417
12MAY 12990101
13MAY W10330991
13MAY W10330993
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466114
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19MAY W10120018
20Gasket, Bottom
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY 10449516
27MAY W10585187
28MAY M0500703
29Gasket
31MAY 12815301
