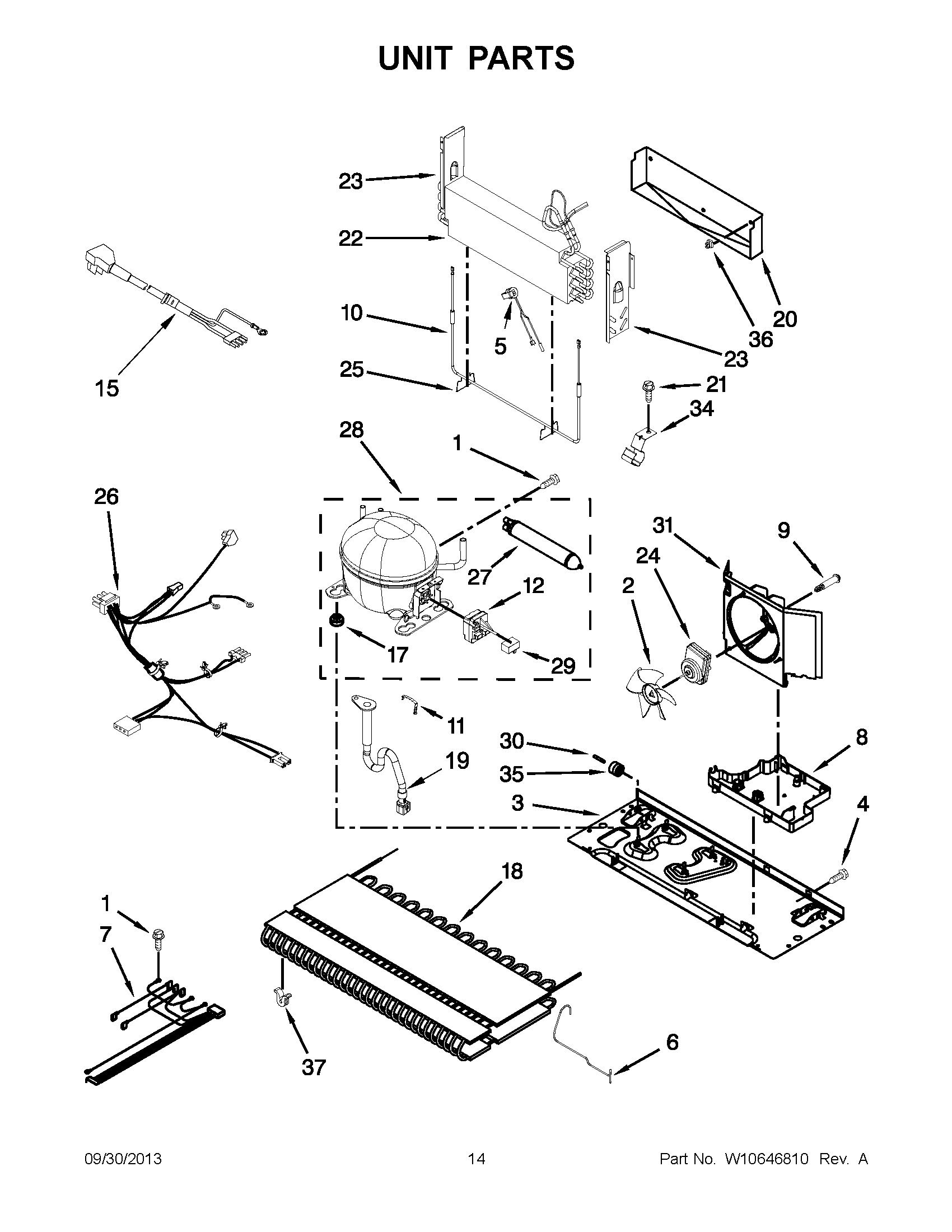

5GBL22PRAA00 08 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	Thermostat, Def.
6	MAY W10306059
7	HARNESS, EVAP. HEATER
8	MAY W10296784
9	MAY W10622701
10	MAY 12729131
11	STRAP, BALE
12	START DEVICE
15	MAY W10462018
17	Grommet (4)
18	MAY W10346420
19	MAY W10588598
20	MAY W10292802
21	MAY 12990701
22	MAY W10317013
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10246191
25	W11673433 Whirlpool Clip
26	MAY W10273559
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	CAPACITOR
30	Axle, Roller (2)
31	SHROUD
34	MAY W10281329
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
