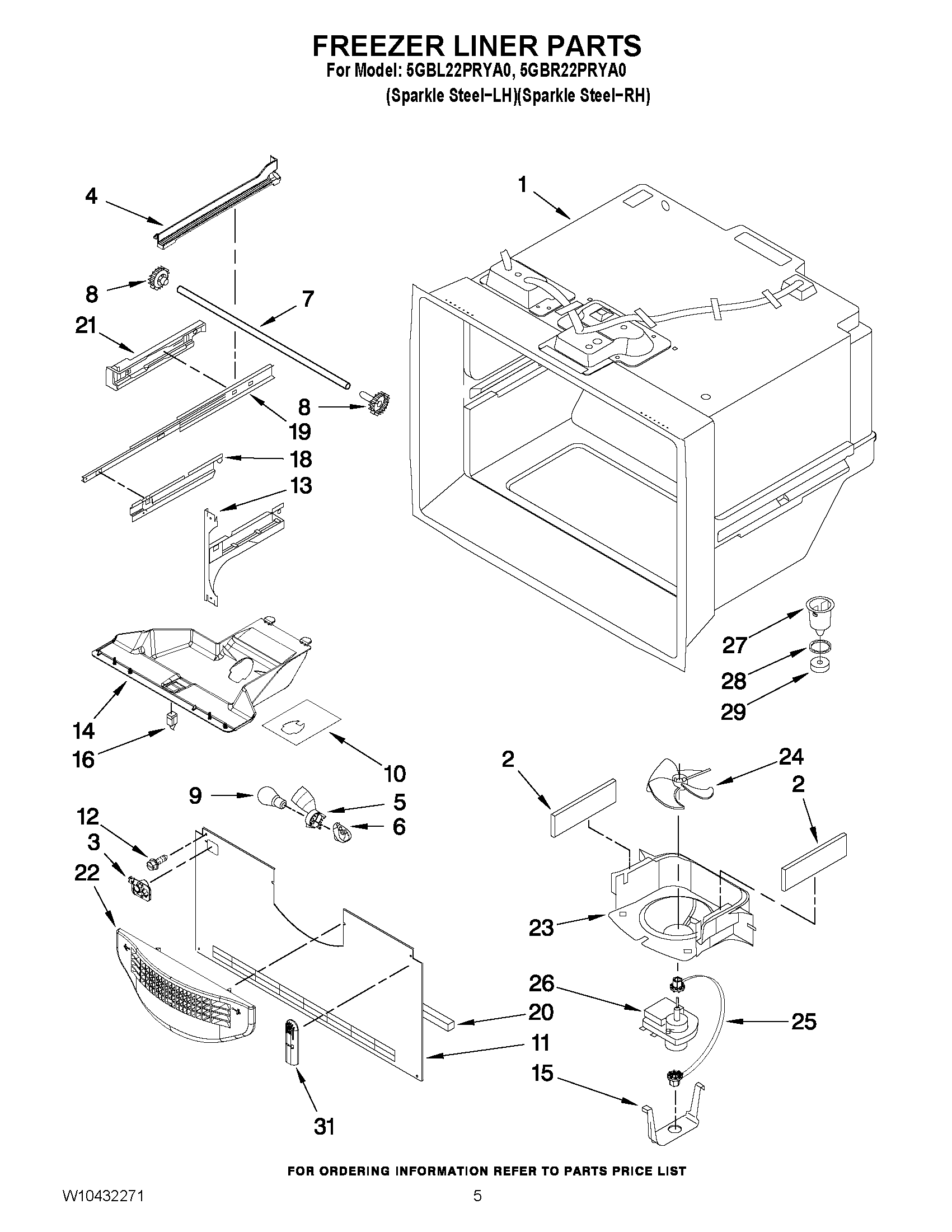

5GBR22PRYA0 03 – FREEZER LINER PARTS

5GBR22PRYA0 03 – FREEZER LINER PARTS

Written by

in

5GBR22PRYA0 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4RACK-SIDE (RIGHT)
4RACK-SIDE (LEFT)
5SHROUD-LGHT SOCKET
6MAY W10134764V
7MAY 12812902WD
812002497 Whirlpool Refrigerator Drawer Gear Kit
9MAY A0282808V
10FOIL-FZ LIGHT
11MAY W10308417
12MAY 12990101
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466114
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20Gasket, Bottom
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY 10449516
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
