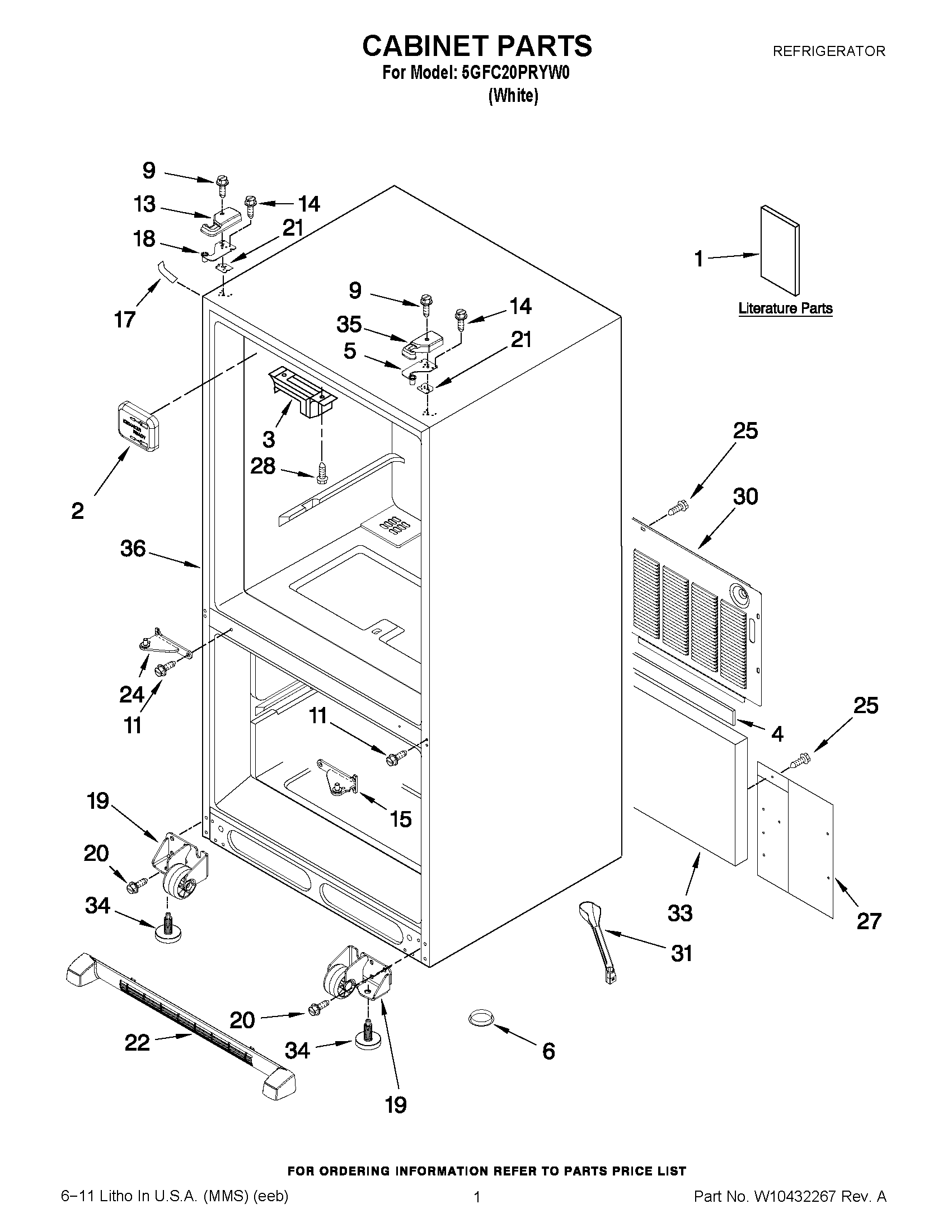

5GFC20PRYW0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10308620
1	MAY 12828189SP
2	COVER-FILL TUBE
3	Block, Pivot
4	MAY B5759655
5	MAY 12963205ED
6	A3076901 Whirlpool Refrigerator Plug
9	MAY 12992602
11	SCREW (6)
13	MAY W10337634
14	SCREW (6)
15	Hinge, Center (RT) (White)
17	Cover, Corner (2) (White)
18	MAY 12963204ED
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10244559
24	Hinge, Center (LT) (White)
25	SCREW (10)
27	MAY W10217701
28	SCREW (2)
30	MAY W10212203
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY 12962302W
36	LINER (NOT A SERVICEABLE PART)
