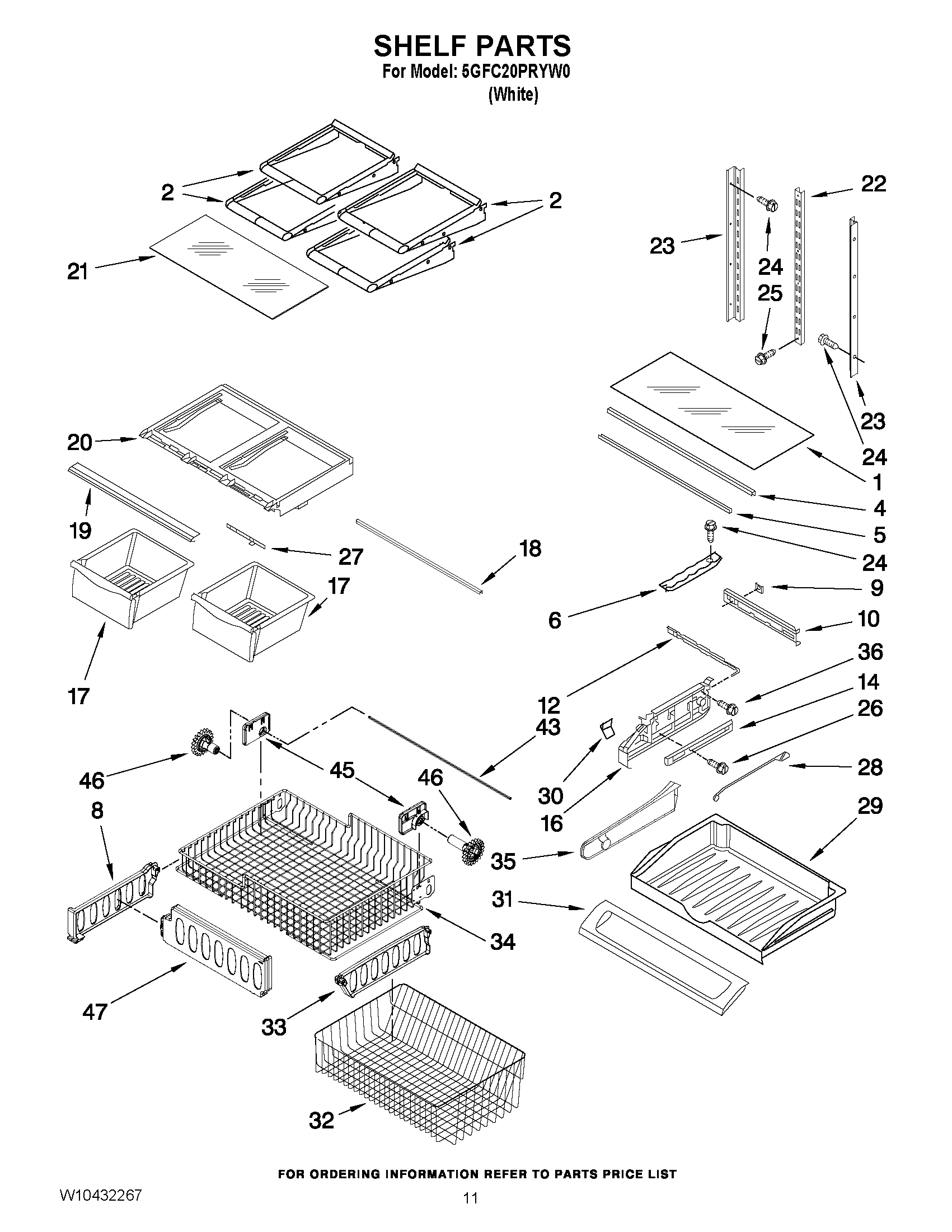

5GFC20PRYW0 07 – SHELF PARTS

5GFC20PRYW0 07 – SHELF PARTS

Written by

in

5GFC20PRYW0 07 – SHELF PARTS

Products

Position	Product
1	MAY 12204829
2	SHELF, GLIDE (4)
4	MAY 12655902SP
5	MAY 12227305WH
6	TRACK, PANTRY
9	MAY 12656901
10	MAY 12656202
12	SLIDE, TEMPERATURE
14	MAY W10235370
16	Endcap, Pantry (Left)
16	ENDCAP, PANTRY (RIGHT)
17	PAN, CRISPER (2)
18	Brace, Crisper
19	MAY W10231346
20	MAY 12531202SP
21	Glass, Crisper Cover
22	MAY W10273463
23	MAY W10251971
24	MAY 12990513
25	MAY W10215666
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12655702
30	MAY 12655204V
31	LID, PANTRY
32	MAY W10150040
33	DIVIDER, LOWER BASKET
34	MAY W10188805
35	DIVIDER, PANTRY DRAWER
36	MAY 12990504
43	MAY 12812904WD
45	MOUNT-GEAR (LEFT HAND)
45	MOUNT-GEAR (RIGHT HAND)
46	MAY W10146446
46	MAY W10158749
47	Divider, Upper Basket
