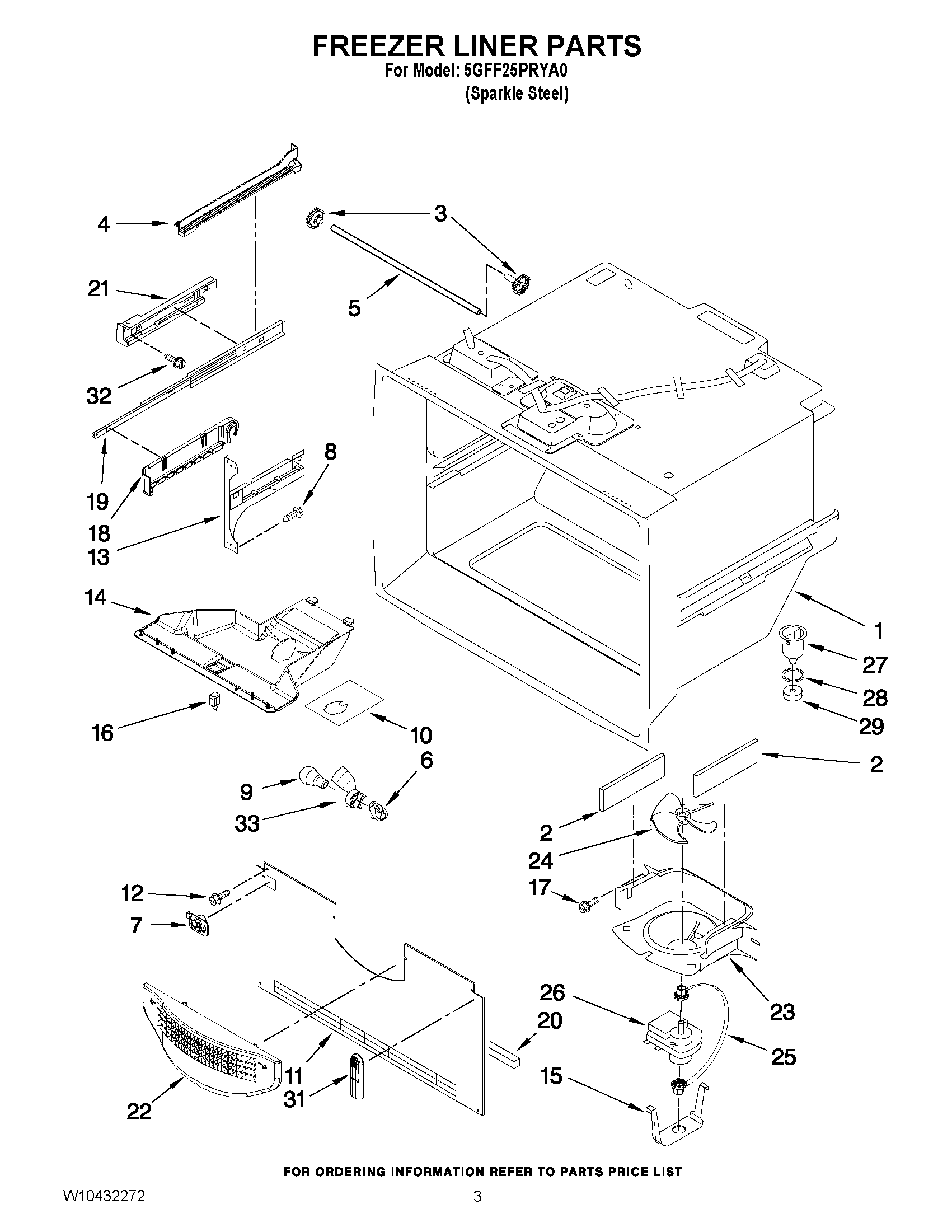

5GFF25PRYA0 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	RACK-SIDE (RIGHT)
4	RACK-SIDE (LEFT)
5	SHAFT
6	MAY W10134764V
7	MAY 12932103
8	Screw (8)
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY W10308418
12	SCREW (10)
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE-FZ LIGHT
15	MAY 10623002
16	MAY 12466114
17	MAY 12990504
18	CRADLE-BASKET (RIGHT HAND)
18	CRADLE-BASKET (LEFT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	ADAPTER, SLIDE (LEFT HAND)
21	ADAPTER, SLIDE (RIGHT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
33	SHROUD-LGHT SOCKET
