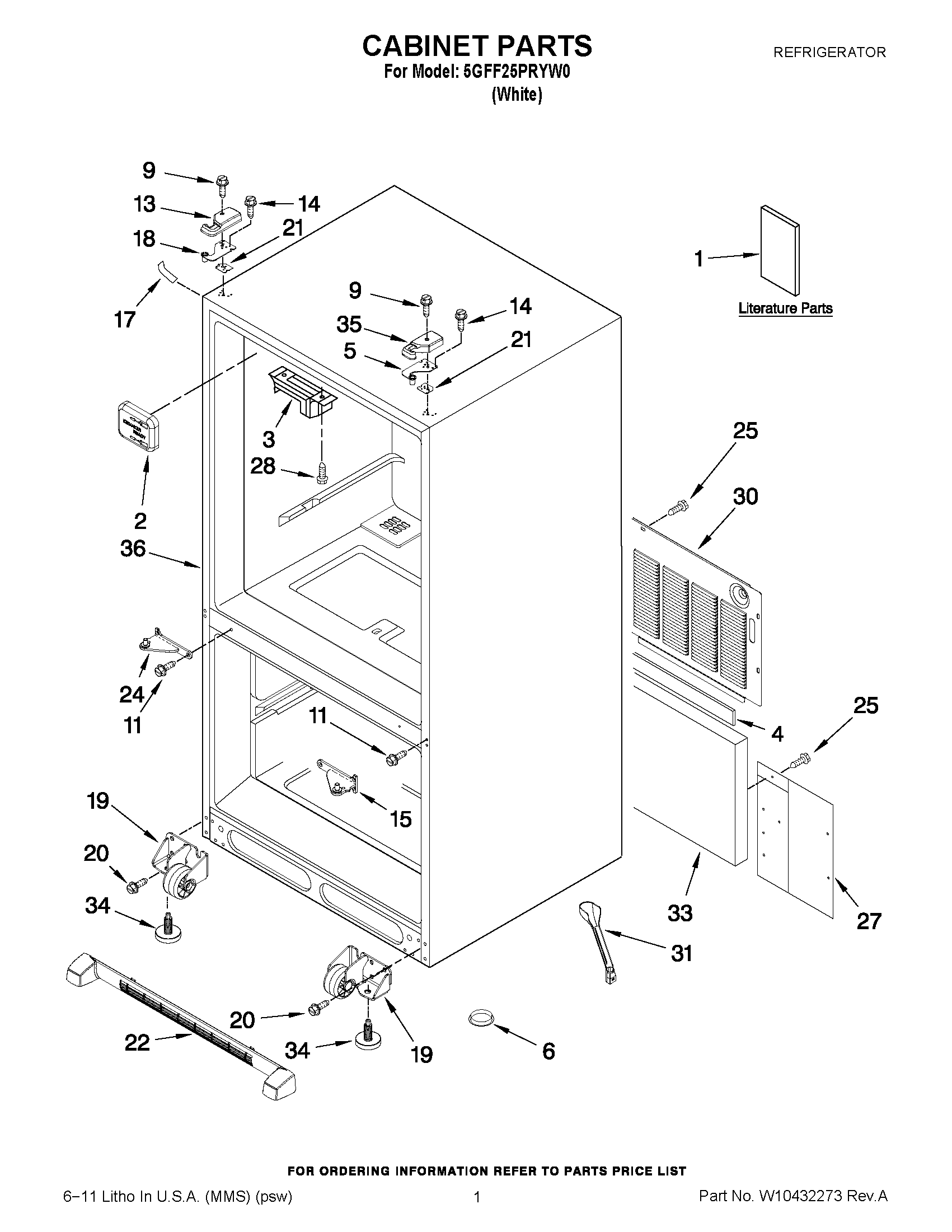

5GFF25PRYW0 01 – CABINET PARTS

5GFF25PRYW0 01 – CABINET PARTS

Written by

in

5GFF25PRYW0 01 – CABINET PARTS

Products

PositionProduct
1MAY W10308620
1MAY 12828189SP
2COVER-FILL TUBE
3Block, Pivot
4MAY B5759655
5MAY 12963205ED
6A3076901 Whirlpool Refrigerator Plug
9MAY 12992602
11SCREW (6)
13MAY W10337634
14SCREW (6)
15Hinge, Center (RT) (White)
17Cover, Corner (2) (White)
18MAY 12963204ED
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY 12999502
21MAY 12999501
22MAY W10244559
24Hinge, Center (LT) (White)
25SCREW (10)
27MAY W10217701
28SCREW (2)
30MAY W10212541
31MAY W10210988
33Insulation, Sound
34Brake, Foot
35MAY 12962302W
36LINER (NOT A SERVICEABLE PART)
