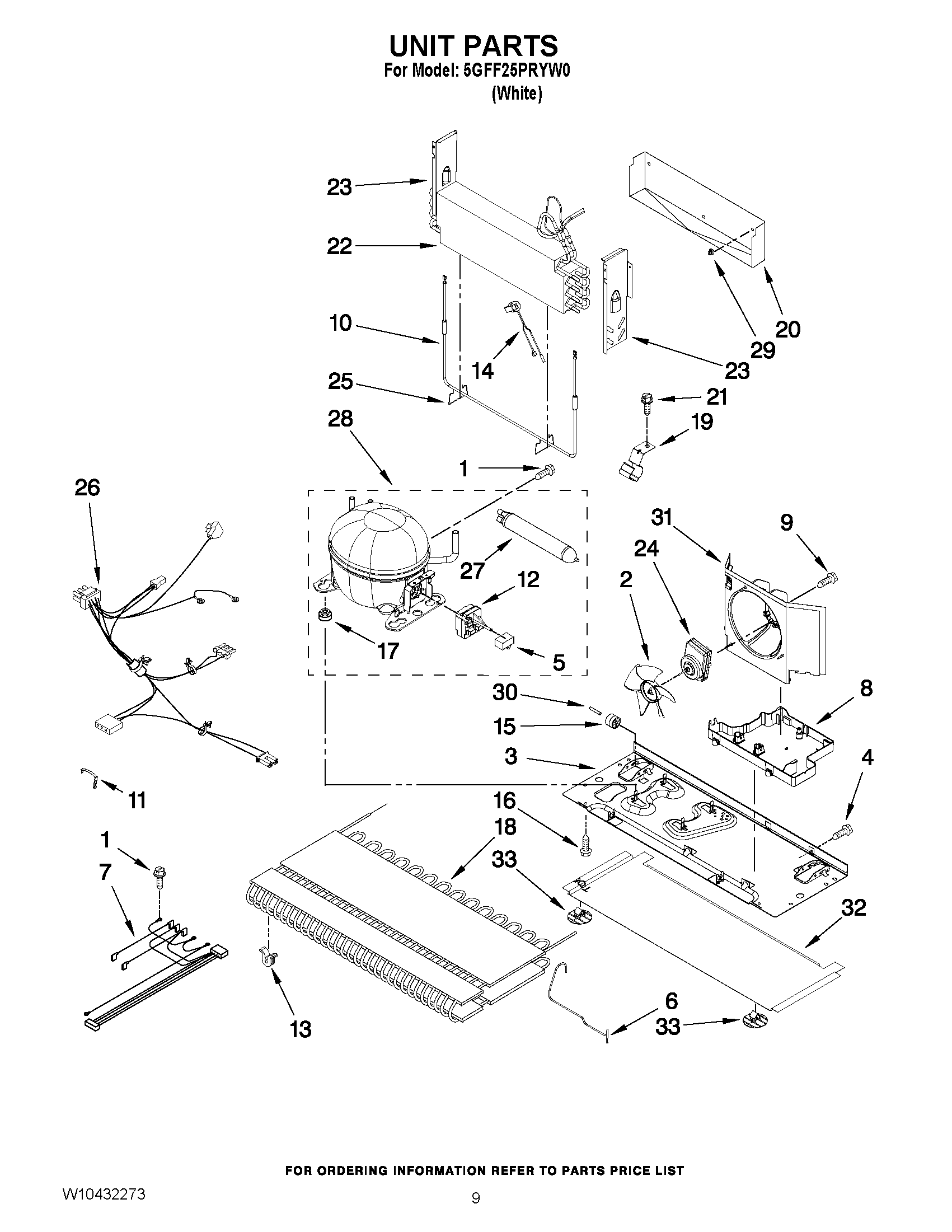

5GFF25PRYW0 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	CAPACITOR
6	MAY W10217747
7	HARNESS, EVAP. HEATER
8	MAY W10296785
9	MAY W10216919
10	MAY 12729132
11	STRAP, BALE
12	START DEVICE
14	Thermostat, Def.
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10246191
25	W11673433 Whirlpool Clip
26	MAY W10273559
27	Drier
28	MAY W10223234
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	EXTENSION, BASEPAN
33	MAY W10206339
