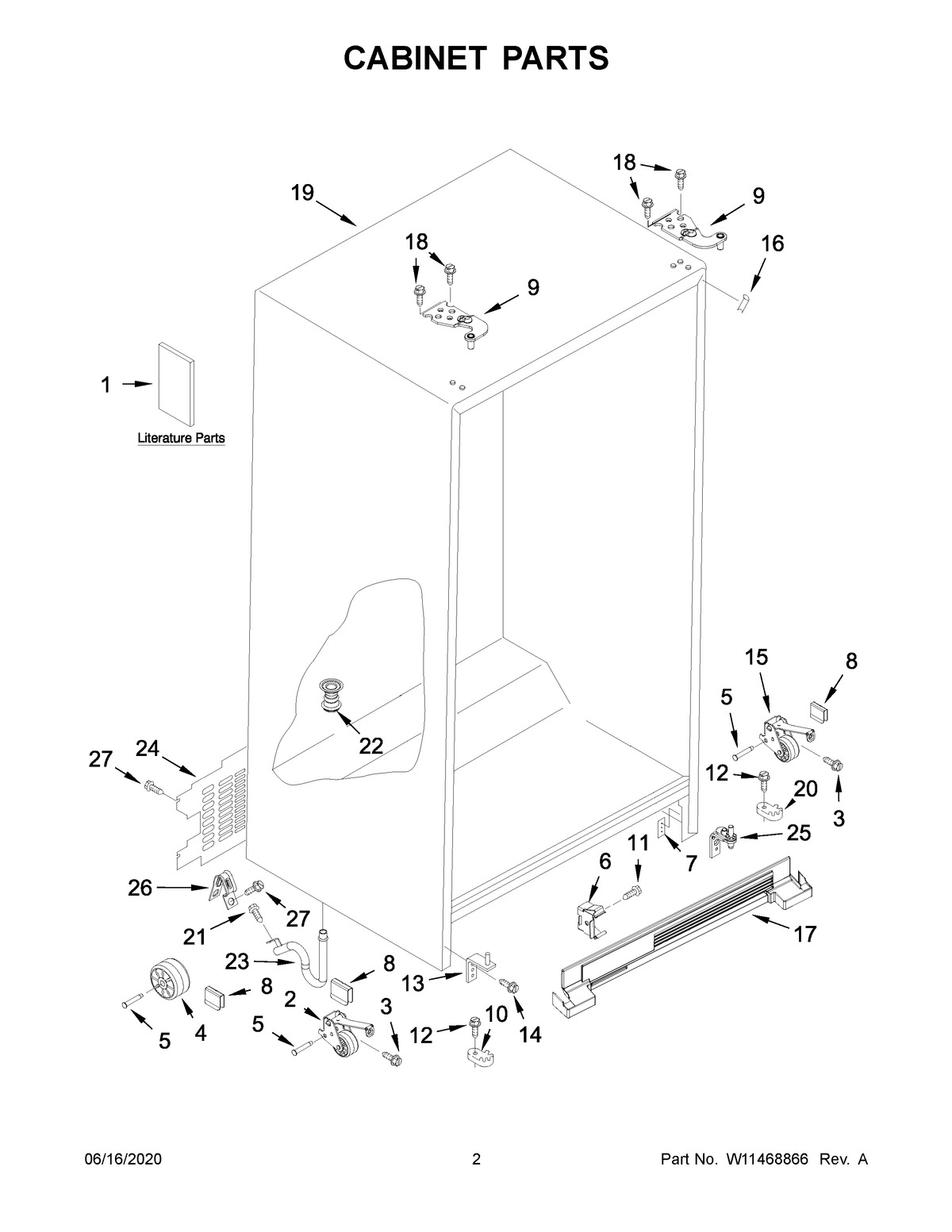

5GRS315NHM00 02 – CABINET PARTSadmin2025-04-26T12:01:30+00:005GRS315NHM00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W11447263 |
| 1A | MAY W11443740 |
| 1 | MAY W11335015 |
| 2 | ROLLER, FRONT (LEFT) |
| 3 | MAY 2152958 |
| 4 | Roller |
| 5 | AXLE, ROLLER |
| 6 | MAY 2155013 |
| 7A | PLATE, SCREW (FREEZER) |
| 7 | PLATE, SCREW (REFRIGERATOR) |
| 8 | CLIP, ROLLER |
| 9A | HINGE, TOP (TOP RIGHT) |
| 9 | HINGE, TOP (TOP LEFT) |
| 10 | CLOSER, DOOR (FREEZER) |
| 11 | MAY 488500 |
| 12 | MAY W10142234 |
| 13 | ASSEMBLY, BOTTOM HINGE (FREEZER) |
| 14 | Screw (4) |
| 15 | ROLLER, FRONT (RIGHT) |
| 16 | FILLER, WRAPPER (GREY) |
| 17 | GRILLE (GREY) |
| 18 | SCREW, HINGE |
| 19 | LINER (NOT A SERVICEABLE PART) |
| 20 | CLOSER, LOWER CAM DOOR (REFRIGERATOR) |
| 21 | Screw (3) |
| 22 | MAY 2304888 |
| 23 | MAY W10153550 |
| 24 | COVER ASSY-UNIT-COMPARTMENT |
| 25 | ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) |
| 26 | MAY 549193 |
| 27 | MAY W10141645 |
