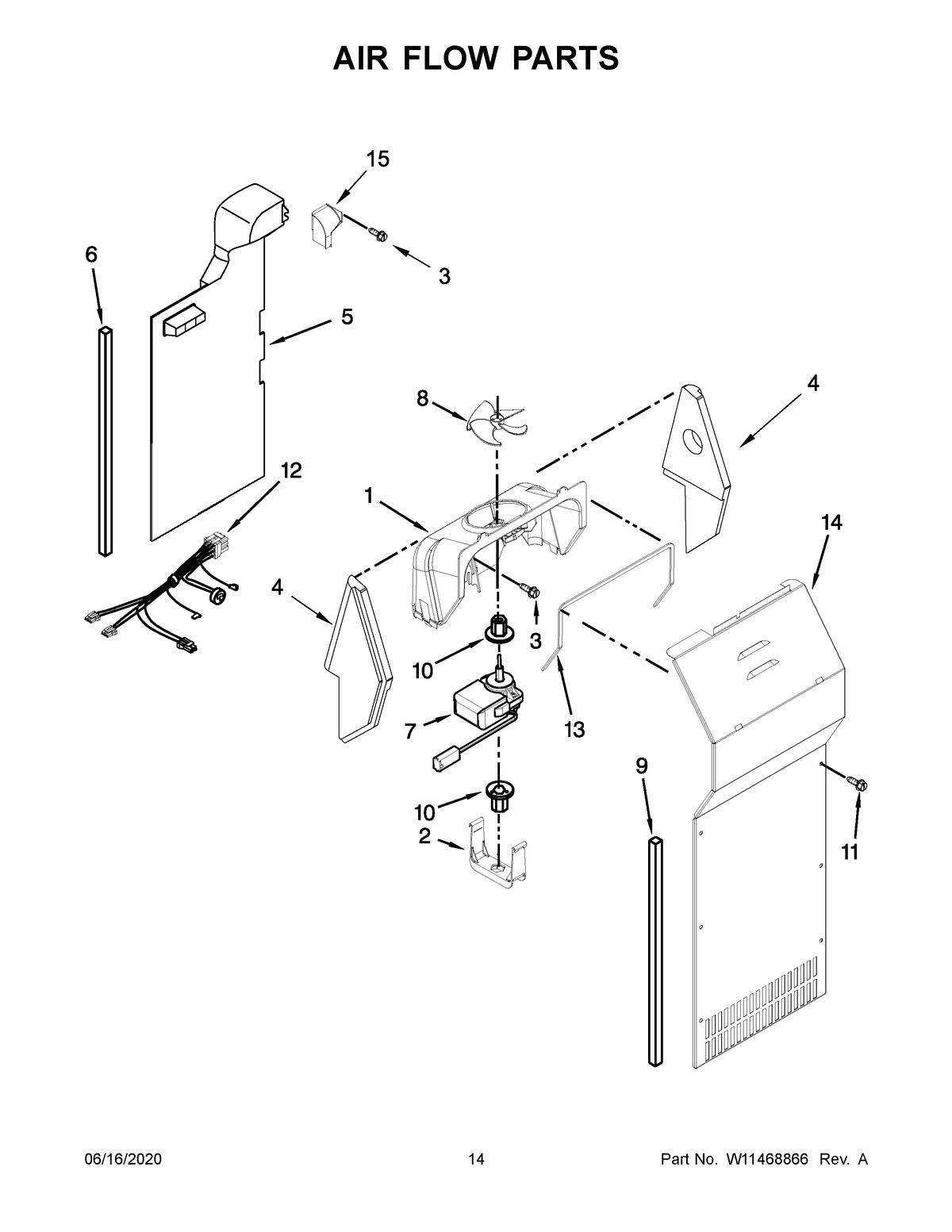

5GRS315NHM00 08 – AIR FLOW PARTS

Written by

Products

Position	Product
1	SCROLL, FAN
2	MAY W10188846
3	MAY 489478
4A	SUPPORT, FAN SCROLL (RIGHT HAND)
4	SUPPORT, FAN SCROLL (LEFT HAND)
5	DUCT, FREEZER AIR
6	MAY 2203876
7	MOTOR, FAN
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	SCREW
12	MAY W11208468
13	Gasket, Fan Scroll
14	MAY W10463013
15	SCOOP, AIR ASSEMBLY
