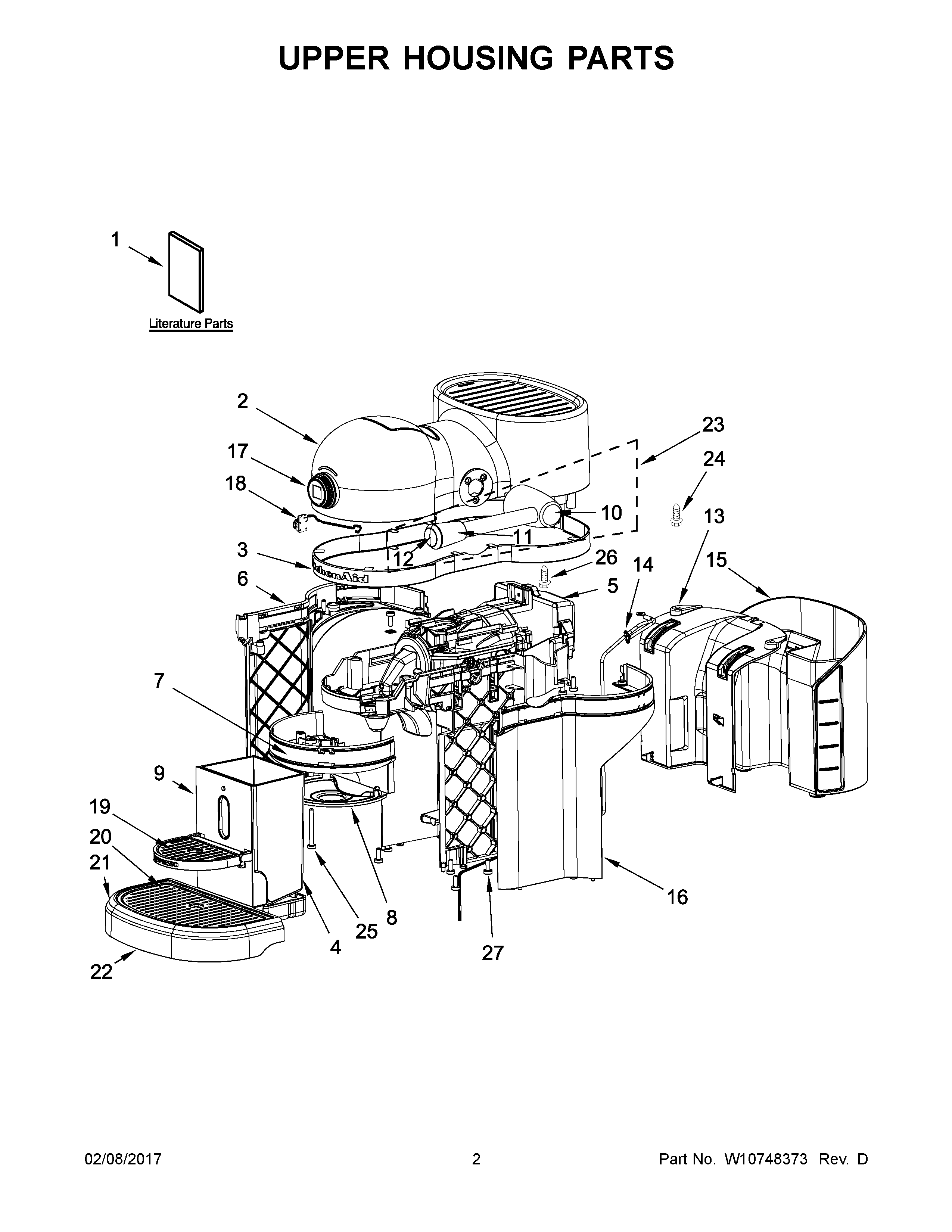

5KES0503BCA0 02 – UPPER HOUSING PARTS

5KES0503BCA0 02 – UPPER HOUSING PARTS

Written by

in

5KES0503BCA0 02 – UPPER HOUSING PARTS

Products

PositionProduct
1USE & CARE GUIDE (UNITED STATES)
1AUSE & CARE GUIDE (EUROPE/UNITED KINGDOM/SWITZERLAND)
1BUSE & CARE GUIDE (AUSTRALIA)
2GTOP HOUSING (SLATE)
2FTOP HOUSING (SUGAR PEARL)
2ETOP HOUSING (ONYX BLACK)
2DTOP HOUSING (MEDALLION SILVER)
2CTOP HOUSING (FROSTED PEARL)
2ATOP HOUSING (CANDY APPLE)
2BTOP HOUSING (EMPIRE RED)
2TOP HOUSING (ALMOND CREME)
3TRIM BAND (UNITED STATES/AUSTRALIA)
3ATRIM BAND (EUROPE/UNITED KINGDOM/SWITZERLAND)
4W10725108 Whirlpool Container
5CHASSIS, CABINET
6SIDE PANEL (LEFT) (ALMOND CREME)
6ASIDE PANEL (LEFT) (CANDY APPLE)
6CSIDE PANEL (LEFT) (FROSTED PEARL)
6GSIDE PANEL (LEFT) (SLATE)
6FSIDE PANEL (LEFT) (SUGAR PEARL)
6ESIDE PANEL (LEFT) (ONYX BLACK)
6DSIDE PANEL (LEFT) (MEDALLION SILVER)
6BSIDE PANEL (LEFT) (EMPIRE RED)
7FHEAD RING (SUGAR PEARL)
7GHEAD RING (SLATE)
7DHEAD RING (MEDALLION SILVER)
7CHEAD RING (FROSTED PEARL)
7BHEAD RING (EMPIRE RED)
7AHEAD RING (CANDY APPLE)
7HEAD RING (ALMOND CREME)
7EHEAD RING (ONYX BLACK)
8SPOUT, COFFEE
9EWPL W10725137
9FRONT COVER (ALMOND CREME)
9AFRONT COVER (CANDY APPLE)
9BFRONT COVER (EMPIRE RED)
9CFRONT COVER (FROSTED PEARL)
9DFRONT COVER (ME
9FWPL W10758008
9GWPL W10758009
10WPL W10749017
11WPL W10749016
12WPL W10749015
13WPL W10725215
14WPL W10725229
15WPL W10725107
16DWPL W10725181
16CWPL W10725179
16AWPL W10725171
16EWPL W10725175
16BWPL W10725173
16FWPL W10758014
16GWPL W10758015
16WPL W10725176
17WPL W10749013
18WPL W10725056
19WPL W10725123
20W10725111 Whirlpool Grid
21CWPL W10725128
21DWPL W10725125
21BWPL W10725127
21AWPL W10725124
21WPL W10725134
21FWPL W10758005
21GWPL W10758006
21EWPL W10725126
22WPL W10725121
23WPL W10748409
24WPL W10757797
25WPL W10757807
26W10757808 Whirlpool Screw
27WPL W10757809
