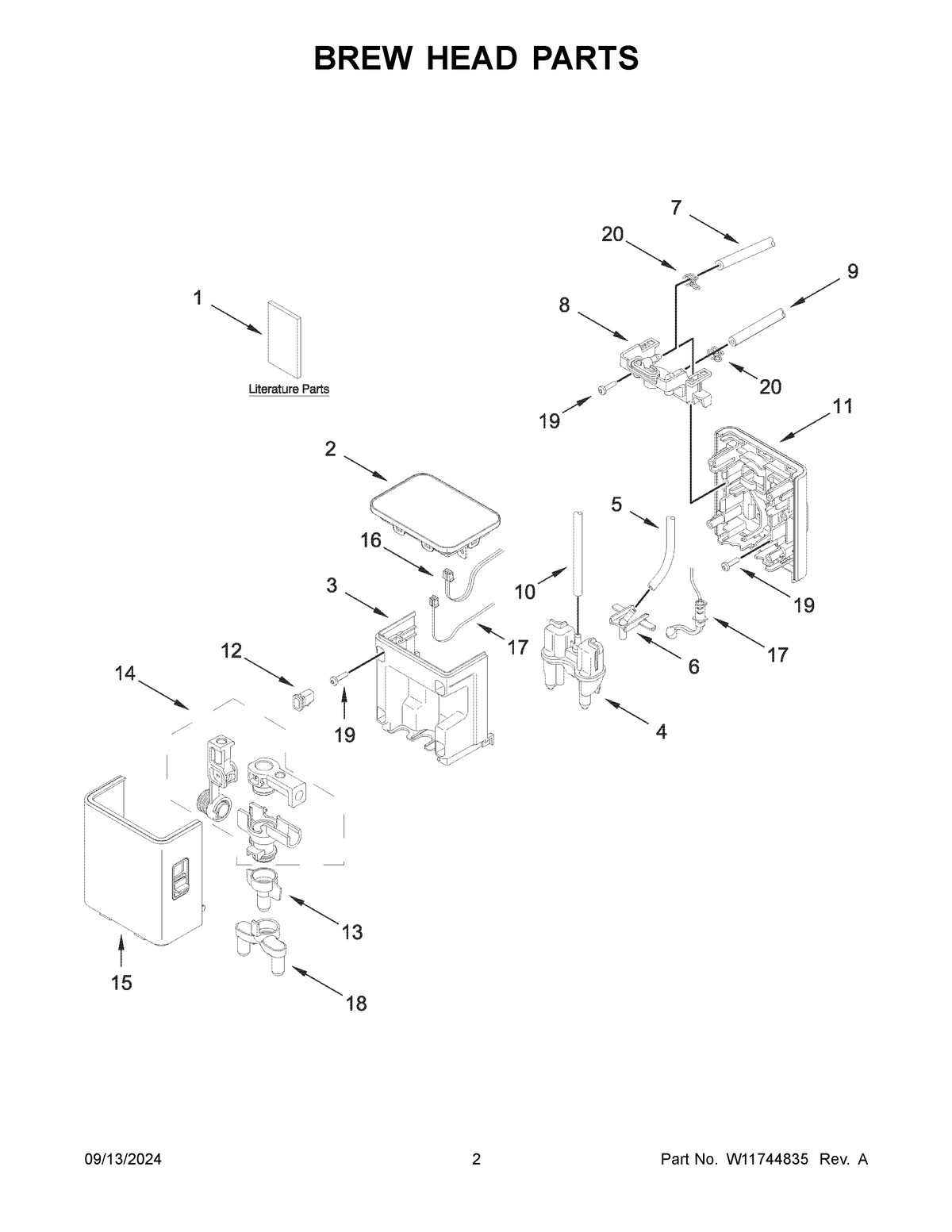

5KES8556EBK0 02 – BREW HEAD PARTSadmin2025-04-26T11:35:59+00:005KES8556EBK0 02 – BREW HEAD PARTS
Products
| Position | Product |
|---|
| 1 | OWNER'S MANUAL |
| 2 | COVER, BREW HEAD W/ LED |
| 3 | BREW HEAD CHASSIS FRONT |
| 4 | WATER SPOUT |
| 5 | HOSE, BREW HEAD TO SOLENOID VALVE |
| 6 | OUTLET, HOT WATER |
| 7 | HOSE, BREW HEAD TO SOLENOID VALVE (RED) |
| 8 | BRACKET, STEAM HOSE |
| 9 | HOSE, BREW HEAD TO F-VALVE |
| 10 | HOSE, BREW HEAD TO CENTER INSERT |
| 11A | BREW HEAD CHASSIS BACK (PORCELAIN WHITE) |
| 11 | BREW HEAD CHASSIS BACK (CAST IRON BLACK) |
| 11B | BREW HEAD CHASSIS BACK (STAINLESS STEEL FINISH) |
| 12 | COVER, SCREW |
| 13 | OUTLET, MILK DISPENSER |
| 14 | DISPENSER, MILK |
| 15B | COVER, BREW HEAD (STAINLESS STEEL FINISH) |
| 15A | COVER, BREW HEAD (PORCELAIN WHITE) |
| 15 | COVER, BREW HEAD (CAST IRON BLACK) |
| 16 | JUMPER, BREW HEAD TO UI |
| 17 | LED CUP LIGHT |
| 18 | OUTLET, MILK DISPENSER |
| 19 | SCREW |
| 20 | CLAMP |
