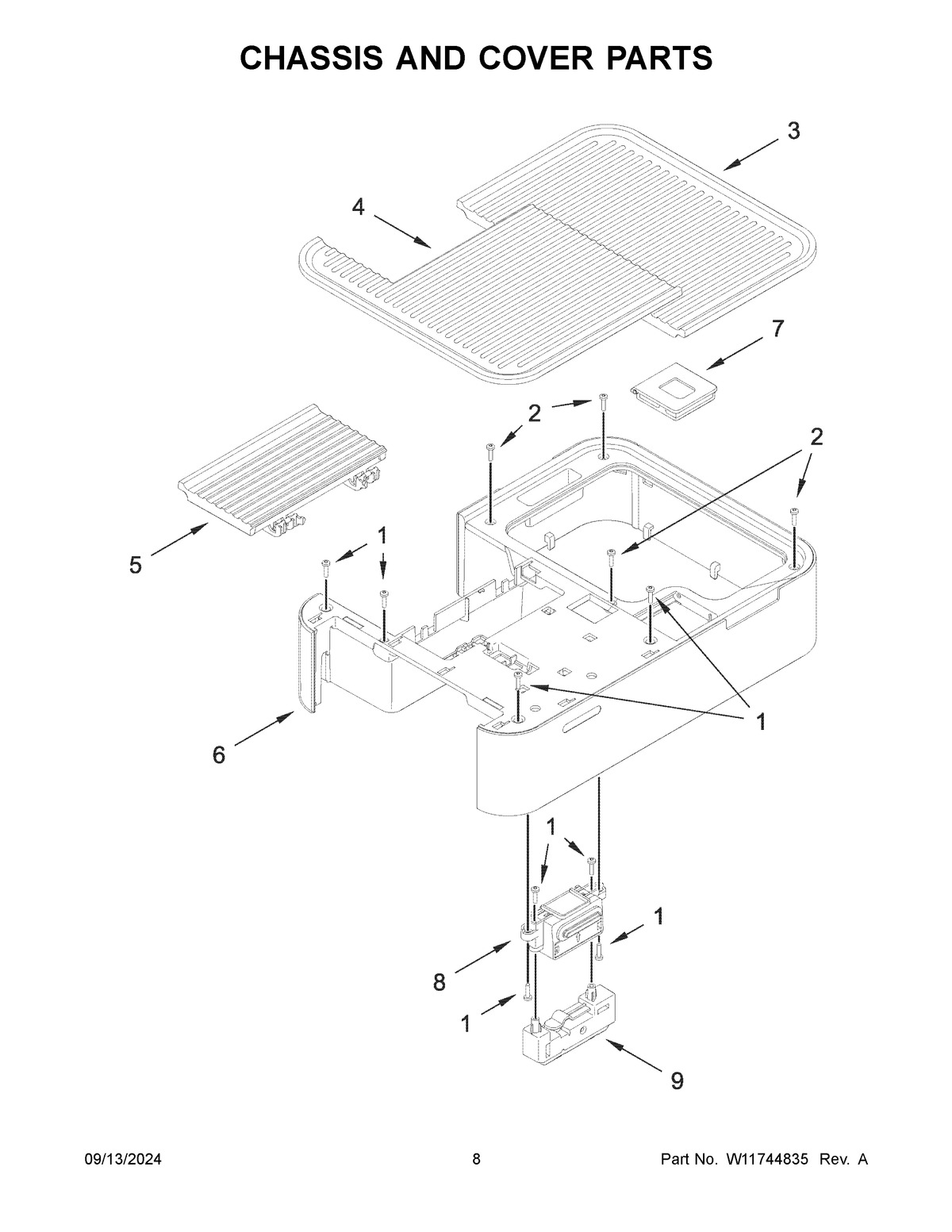

5KES8556EPL0 05 – CHASSIS AND COVER PARTS

Products

PositionProduct
1SCREW
2SCREW
3COVER, BEAN HOPPER
4COVER, FRONT
5COVER, WATER TANK
6CHASSIS, TOP
7COVER, GROUND COFFEE
8SENSOR BODY, TOP CHASSIS
9SENSOR SWITCH, TOP CHASSIS
