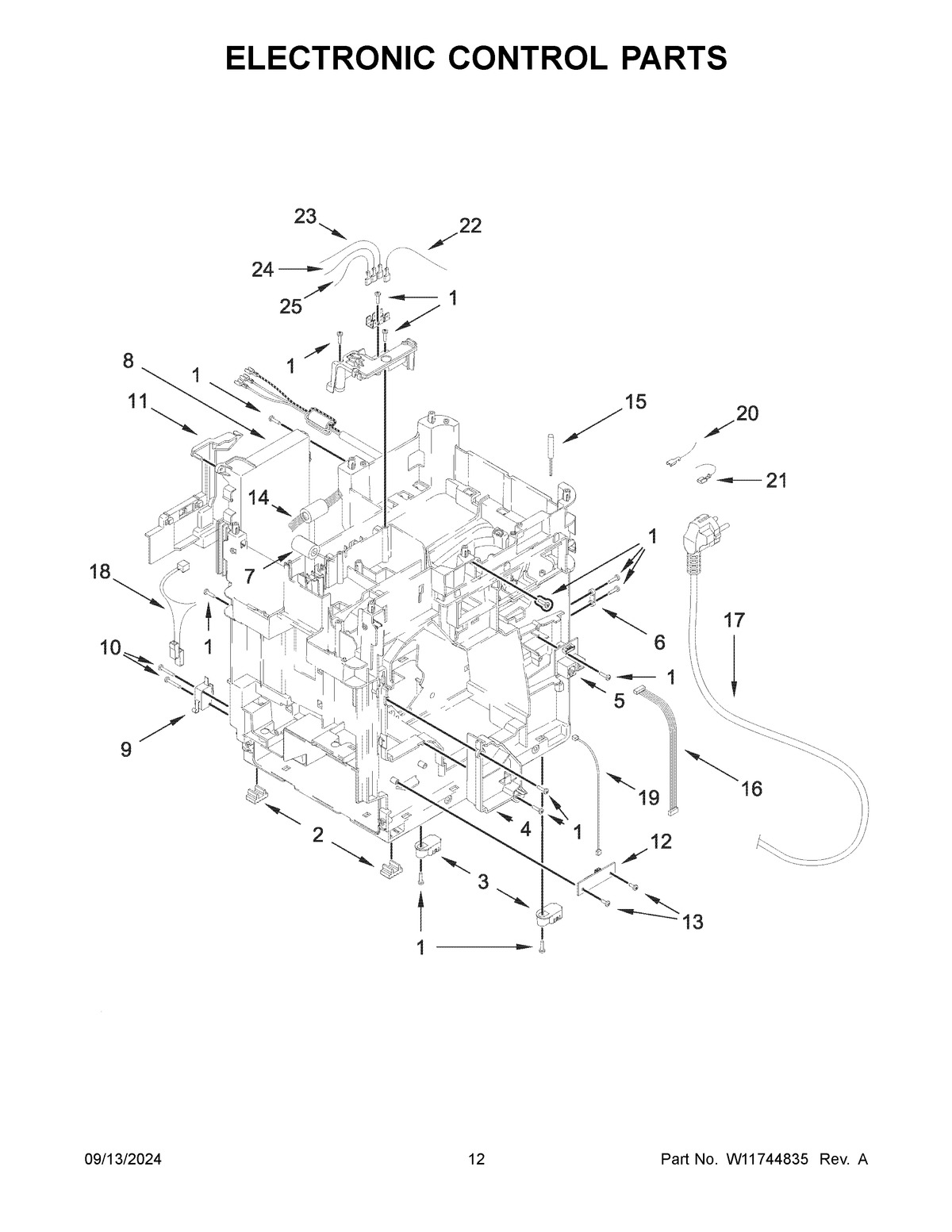

5KES8556ESX0 07 – ELECTRONIC CONTROL PARTSadmin2025-04-26T11:33:35+00:005KES8556ESX0 07 – ELECTRONIC CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | FEET, RUBBER |
| 3 | ROLLERS |
| 4 | ALIGNMENT GUIDE, BREW UNIT |
| 5 | CONTROL, SERVICE PCBA |
| 6 | STRAIN RELIEF, POWER CORD |
| 7 | FERRITE BEAD |
| 8 | CONTROL, MAIN PCBA |
| 9 | MICROSWITCH |
| 10 | SCREW |
| 11 | COVER, PCBA |
| 12 | BOARD, PIEZO |
| 13 | SCREW |
| 14 | JUMPER, UI TO PCBA |
| 15 | SWITCH, REED |
| 16 | JUMPER, SERVICE PCBA TO PCBA |
| 17 | CORD, POWER |
| 18 | JUMPER, CENTER INSERT |
| 19 | JUMPER, PIEZO BOARD TO PCBA |
| 20 | WIRE, RED |
| 21 | WIRE, GROUND |
| 22 | WIRE, RED |
| 23 | WIRE, BREW HEAD TO BOILER COVER |
| 24 | WIRE, PCBA COVER TO BOILER COVER |
| 25 | WIRE, BOILER COVER |
