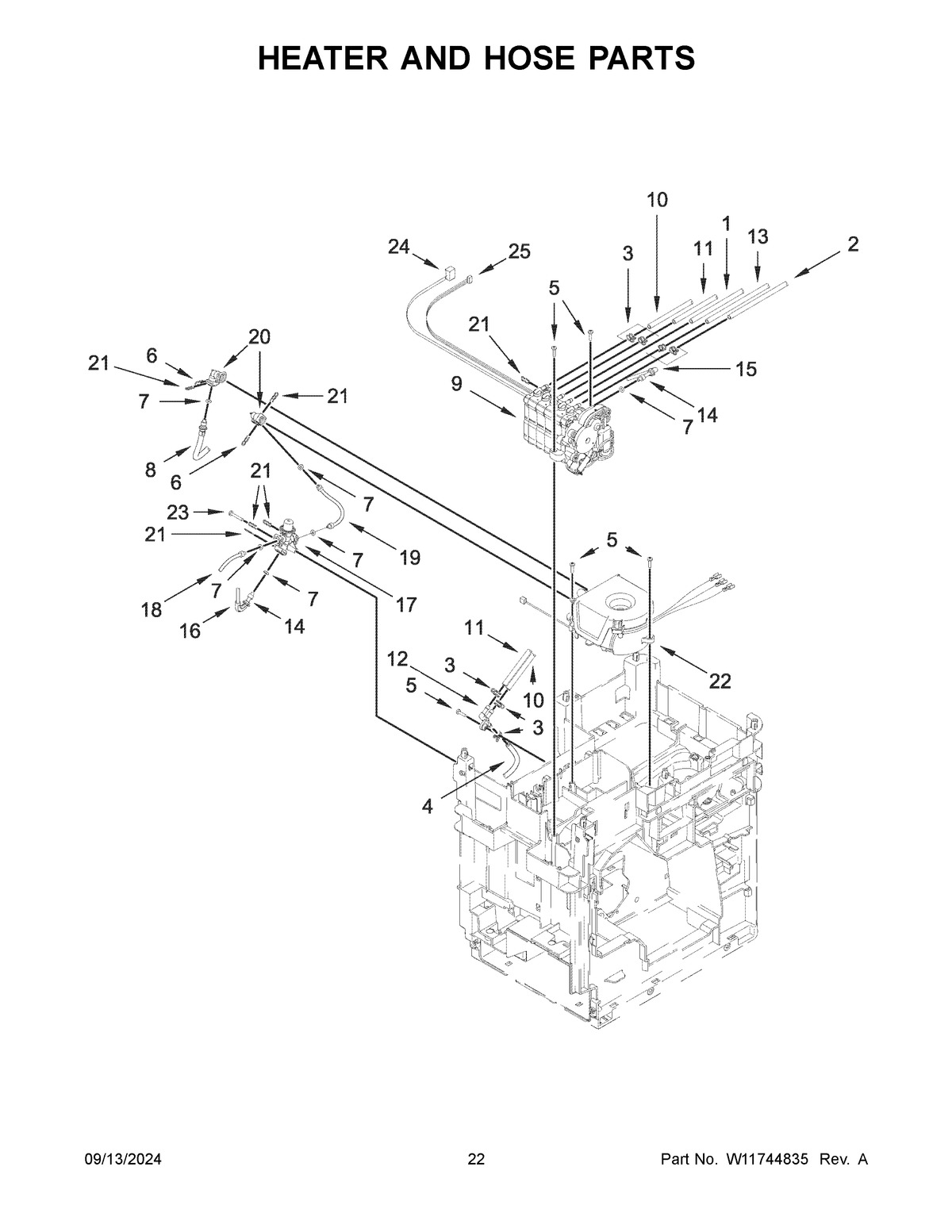

5KES8556ESX0 12 – HEATER AND HOSE PARTS

Products

Position	Product
1	HOSE, BREW HEAD TO SOLENOID VALVE
2	HOSE, BREW HEAD TO SOLENOID VALVE (RED)
3	CLAMP
4	HOSE, BREW HEAD TO F-VALVE
5	SCREW
6	CLIP
7	O-RING
8	HOSE, PUMP TO HEATER
9	SOLENOID VALVE
10	HOSE, F-VALVE TO SOLEVNOID VALVE (OPAQUE)
11	HOSE, F-VALVE TO SOLENOID VALVE (GREEN)
12	CONNECTOR, WATER
13	HOSE, SOLENOID VALVE TO CENTER INSERT
14	HOSE, 3-WAY VALVE TO SOLENOID VALVE
15	HOSE, U-BEND 90
16	HOSE, U-BEND 120
17	VALVE, 3-WAY
18	HOSE, 3-WAY VALVE TO CENTER INSERT
19	HOSE, 3-WAY VALVE TO HEATER
20	CONNECTOR, WATER
21	CLIP
22	HEATER
23	SCREW
24	JUMPER, SOLENOID TO PCBA
25	JUMPER, SOLENOID SWITCHES TO PCBA
