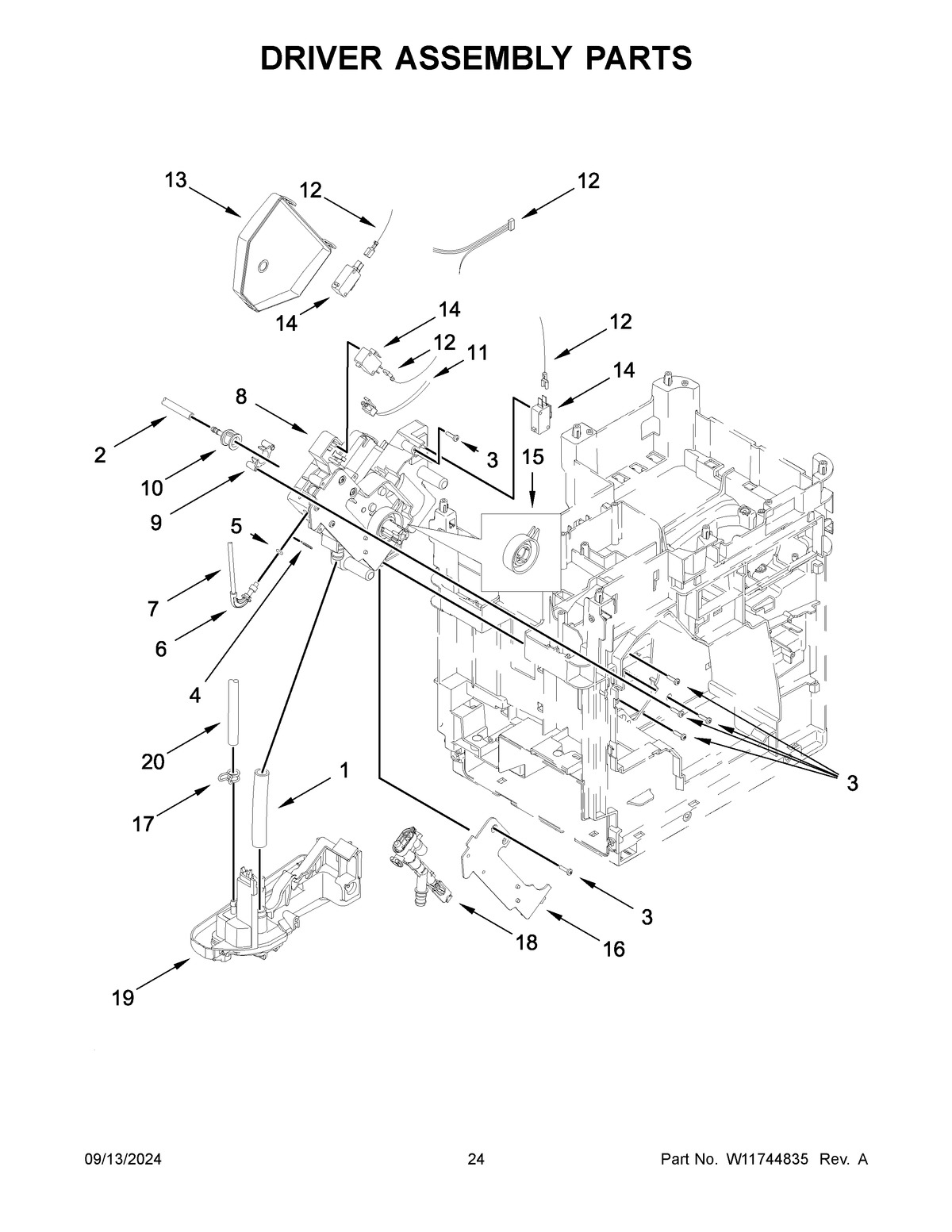

5KES8556ESX0 13 – DRIVER ASSEMBLY PARTSadmin2025-04-26T11:34:58+00:005KES8556ESX0 13 – DRIVER ASSEMBLY PARTS
Products
| Position | Product |
|---|
| 1 | HOSE, RELIEVE TANK TO LID COUPLER |
| 2 | HOSE, BREW HEAD TO CENTER INSERT |
| 3 | SCREW |
| 4 | CLIP |
| 5 | O-RING |
| 6 | HOSE, U-BEND 120 |
| 7 | HOSE, 3-WAY VALVE TO CENTER INSERT |
| 8 | DRIVER ASSEMBLY, BREW UNIT |
| 9 | SUPPORT, DRIVER |
| 10 | CONNECTOR, WATER |
| 11 | JUMPER, CENTER INSERT |
| 12 | CONNECTOR, CENTER INSERT SWITCHES TO PCBA |
| 13 | COVER, DRIVER |
| 14 | MICROSWITCH, CENTER INSERT |
| 15 | GEAR, BREW UNIT DRIVER |
| 16 | COVER, BREW UNIT DRIVER |
| 17 | CLAMP |
| 18 | VALVE, BREW UNIT TO DRIP TRAY |
| 19 | LID, DRIP TRAY |
| 20 | HOSE, SOLENOID VALVE TO CENTER INSERT |
