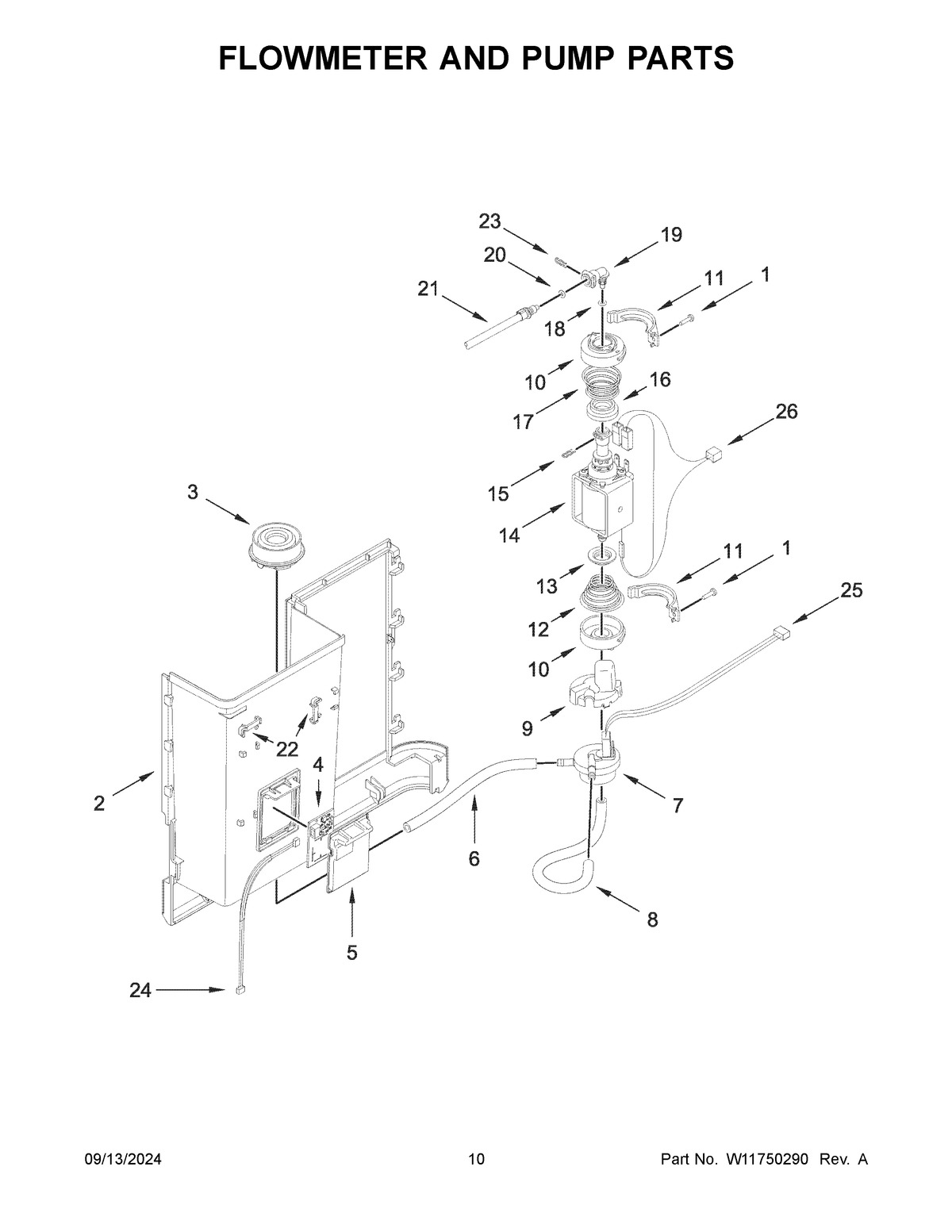

5KES8557EBK0 06 – FLOWMETER AND PUMP PARTS

Products

Position	Product
1	SCREW
2A	SIDE, PANEL (LEFT – JUNIPER BERRY)
2	SIDE, PANEL (LEFT – CAST IRON BLACK)
2B	SIDE, PANEL (LEFT – PORCELAIN WHITE)
2C	SIDE, PANEL (LEFT – STAINLESS STEEL FINISH)
3	HOLDER, WATER TANK
4	CONTROL, WATER LEVEL SENSOR
5	COVER, WATER LEVEL SENSOR
6	HOSE, FLOWMETER TO WATER TANK
7	FLOWMETER
8	HOSE, FLOWMETER
9	COVER, FLOMETER
10	DAMPER, PUMP
11	SUPPORT, PUMP
12	SPRING, PUMP (LOWER)
13	HOLDER, PUMP (LOWER)
14	PUMP
15	CLIP
16	HOLDER, PUMP (UPPER)
17	SPRING, PUMP (UPPER)
18	O-RING
19	CONNECTOR, WATER
20	O-RING
21	HOSE, PUMP TO HEATER
22	CABLE HOLDER
23	CLIP
24	JUMPER, WATER HARNESS
25	JUMPER, FLOWMETER
26	JUMPER, PUMP TO PCBA
