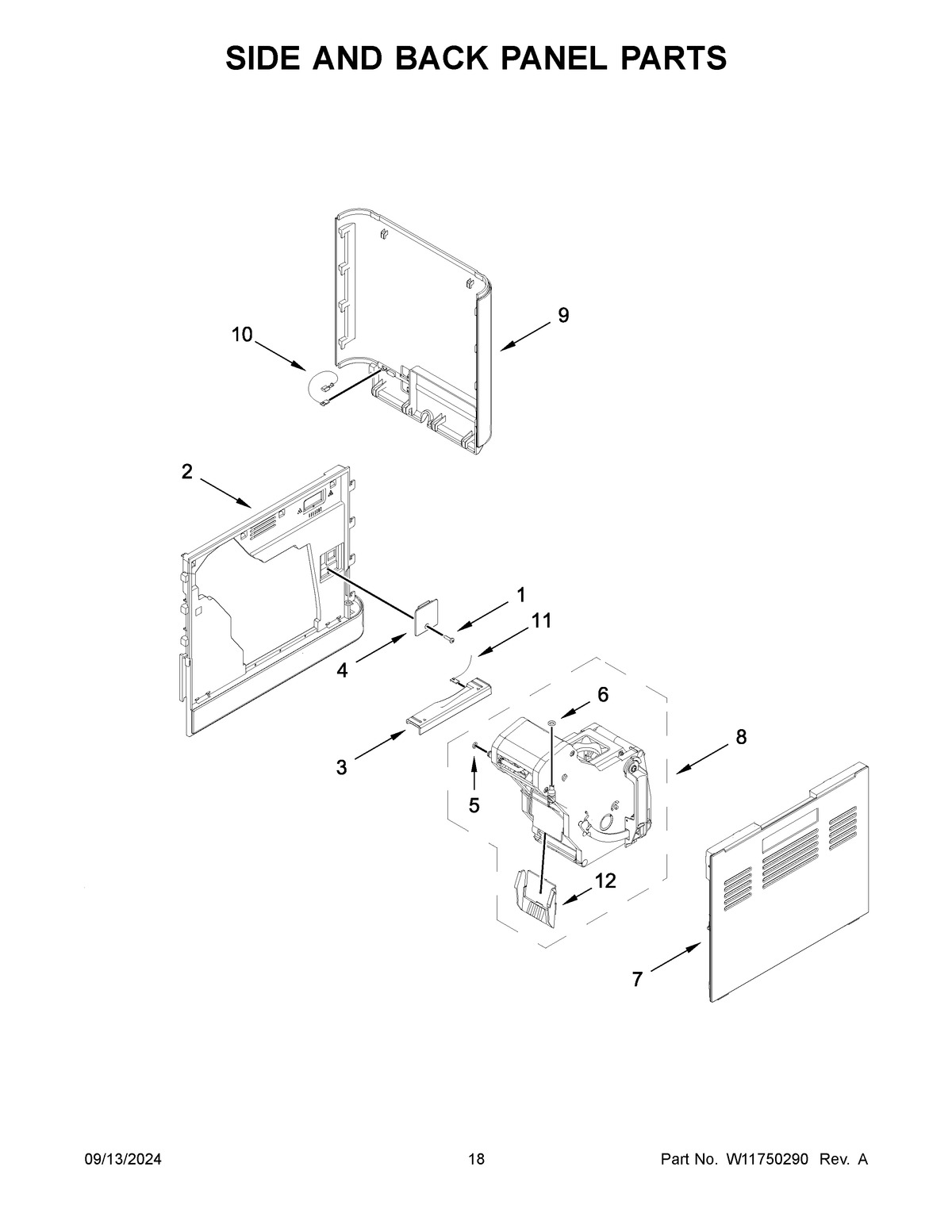

5KES8557EBK0 10 – SIDE AND BACK PANEL PARTS

Products

Position	Product
1	SCREW
2	HOUSING, BREW UNIT
3	SUPPORT, SIDE PANEL ALIGNMENT
4	COVER, PORT
5	O-RING
6	O-RING
7C	SIDE PANEL(RIGHT – STAINLESS STEEL FINISH)
7A	SIDE PANEL(RIGHT – JUNIPER BERRY)
7B	SIDE PANEL (RIGHT – PORCELAIN WHITE)
7	SIDE PANEL (RIGHT – CAST IRON BLACK)
8	BREW UNIT ASSEMBLY
9C	BACK PANEL (STAINLESS STEEL FINISH)
9B	BACK PANEL (PORCELAIN WHITE)
9	BACK PANEL (CAST IRON BLACK)
9A	BACK PANEL (JUNIPER BERRY)
10	WIRE, GROUND
11	WIRE, RED
12	CHUTE, GROUNDS
