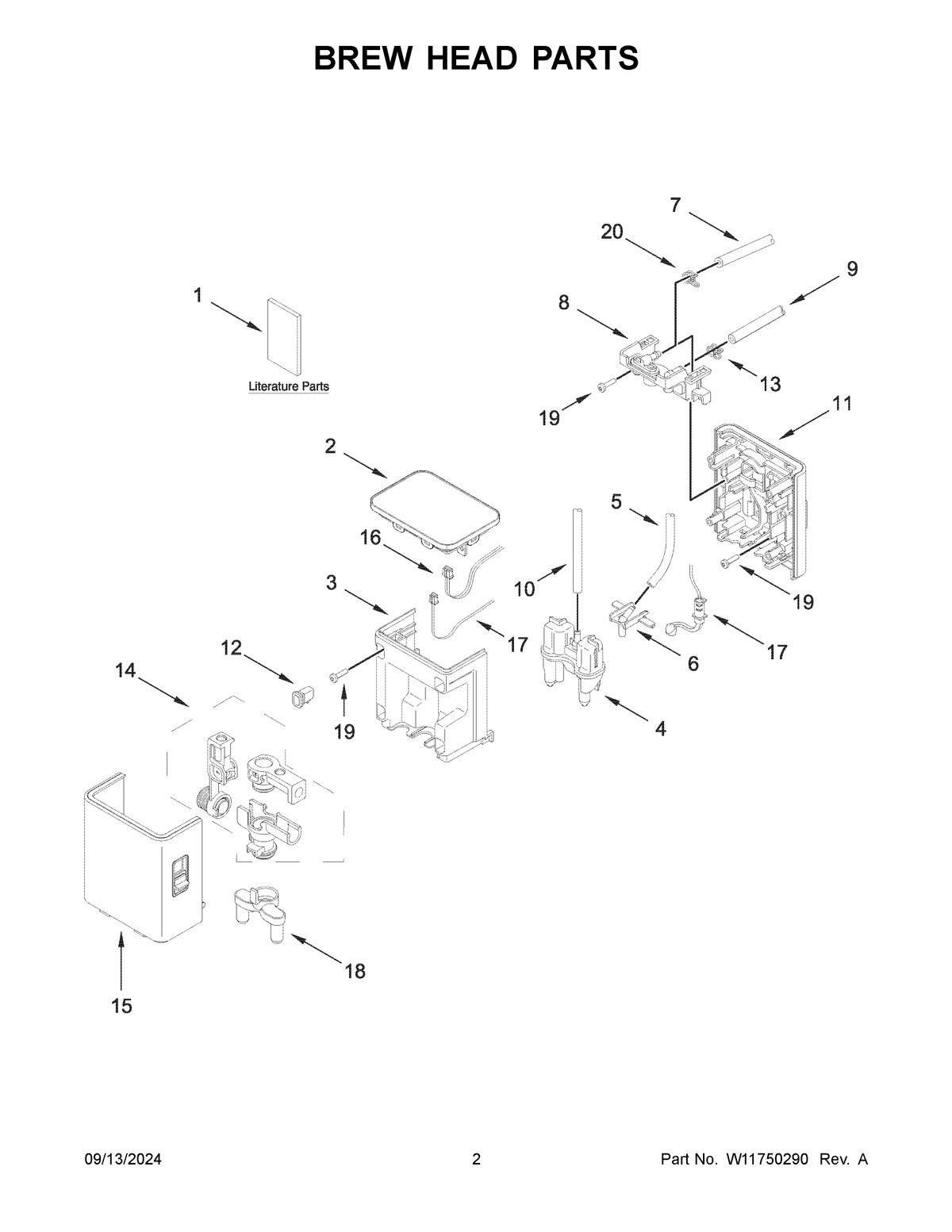

5KES8557EPL0 02 – BREW HEAD PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	COVER, BREW HEAD W/ LED
3	BREW HEAD CHASSIS FRONT
4	WATER SPOUT
5	HOSE, BREW HEAD TO SOLENOID VALVE
6	OUTLET, HOT WATER
7	HOSE, BREW HEAD TO SOLENOID VALVE (RED)
8	BRACKET, STEAM HOSE
9	HOSE, BREW HEAD TO F-VALVE
10	HOSE, BREW HEAD TO CENTER INSERT
11A	BREW HEAD CHASSIS BACK (JUNIPER BERRY)
11	BREW HEAD CHASSIS BACK (CAST IRON BLACK)
11B	BREW HEAD CHASSIS BACK (PORCELAIN WHITE)
11C	BREW HEAD CHASSIS BACK (STAINLESS STEEL FINISH)
12	COVER, SCREW
13	CLAMP
14	DISPENSER, MILK
15	COVER, BREW HEAD (CAST IRON BLACK)
15A	COVER, BREW HEAD (JUNIPER BERRY)
15C	COVER, BREW HEAD (STAINLESS STEEL FINISH)
15B	COVER, BREW HEAD (PORCELAIN WHITE)
16	JUMPER, BREW HEAD TO UI
17	LED CUP LIGHT
18	OUTLET, MILK DISPENSER
19	SCREW
