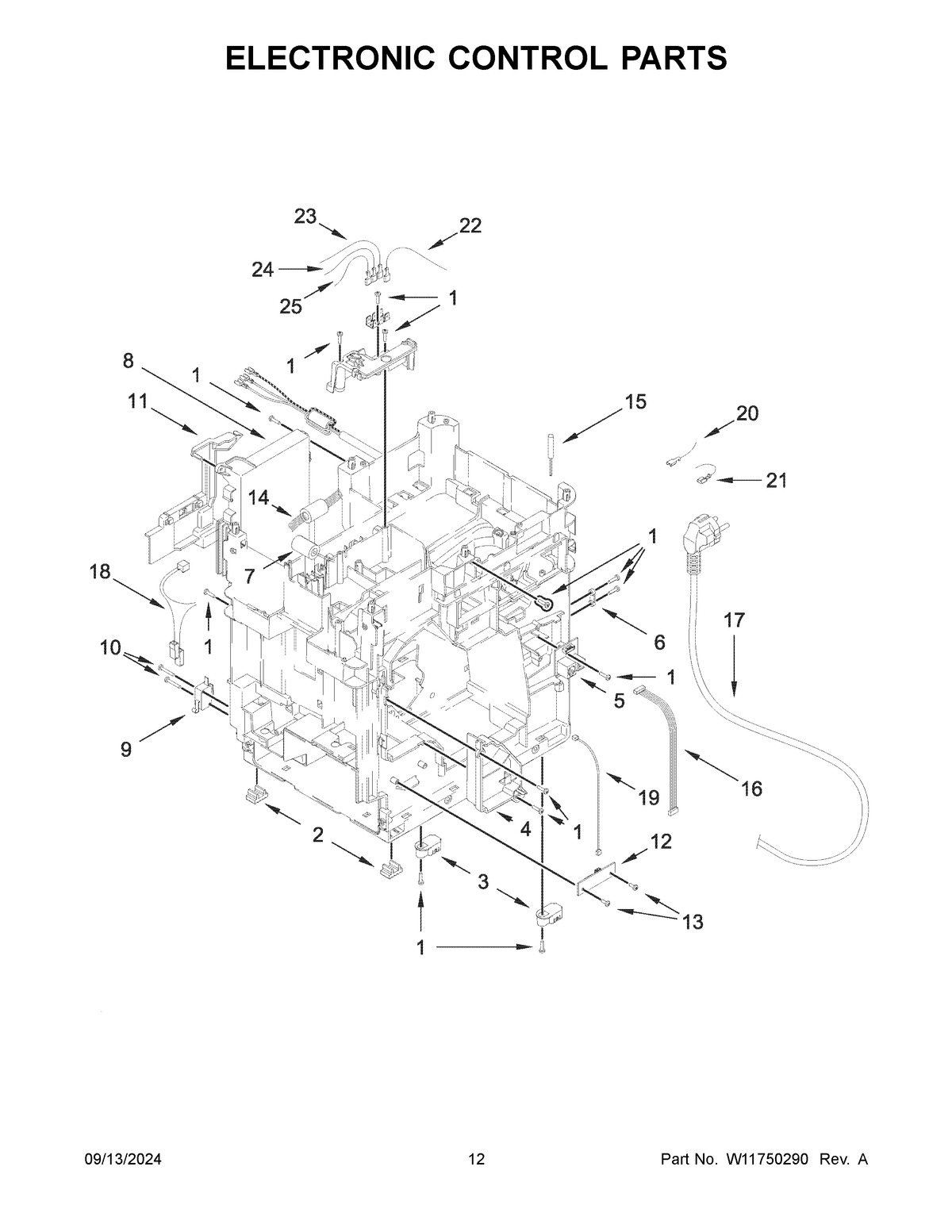

5KES8557EPL0 07 – ELECTRONIC CONTROL PARTS

Products

Position	Product
1	SCREW
2	FEET, RUBBER
3	ROLLERS
4	ALIGNMENT GUIDE, BREW UNIT
5	CONTROL, SERVICE PCBA
6	STRAIN RELIEF, POWER CORD
7	FERRITE BEAD
8	CONTROL, MAIN PCBA
9	MICROSWITCH
10	SCREW
11	COVER, PCBA
12	BOARD, PIEZO
13	SCREW
14	JUMPER, UI TO PCBA
15	SWITCH, REED
16	JUMPER, SERVICE PCBA TO PCBA
17	CORD, POWER
18	JUMPER, CENTER INSERT
19	JUMPER, PIEZO BOARD TO PCBA
20	WIRE, RED
21	WIRE, GROUND
22	WIRE, RED
23	WIRE, BREW HEAD TO BOILER COVER
24	WIRE, PCBA COVER TO BOILER COVER
25	WIRE, BOILER COVER
