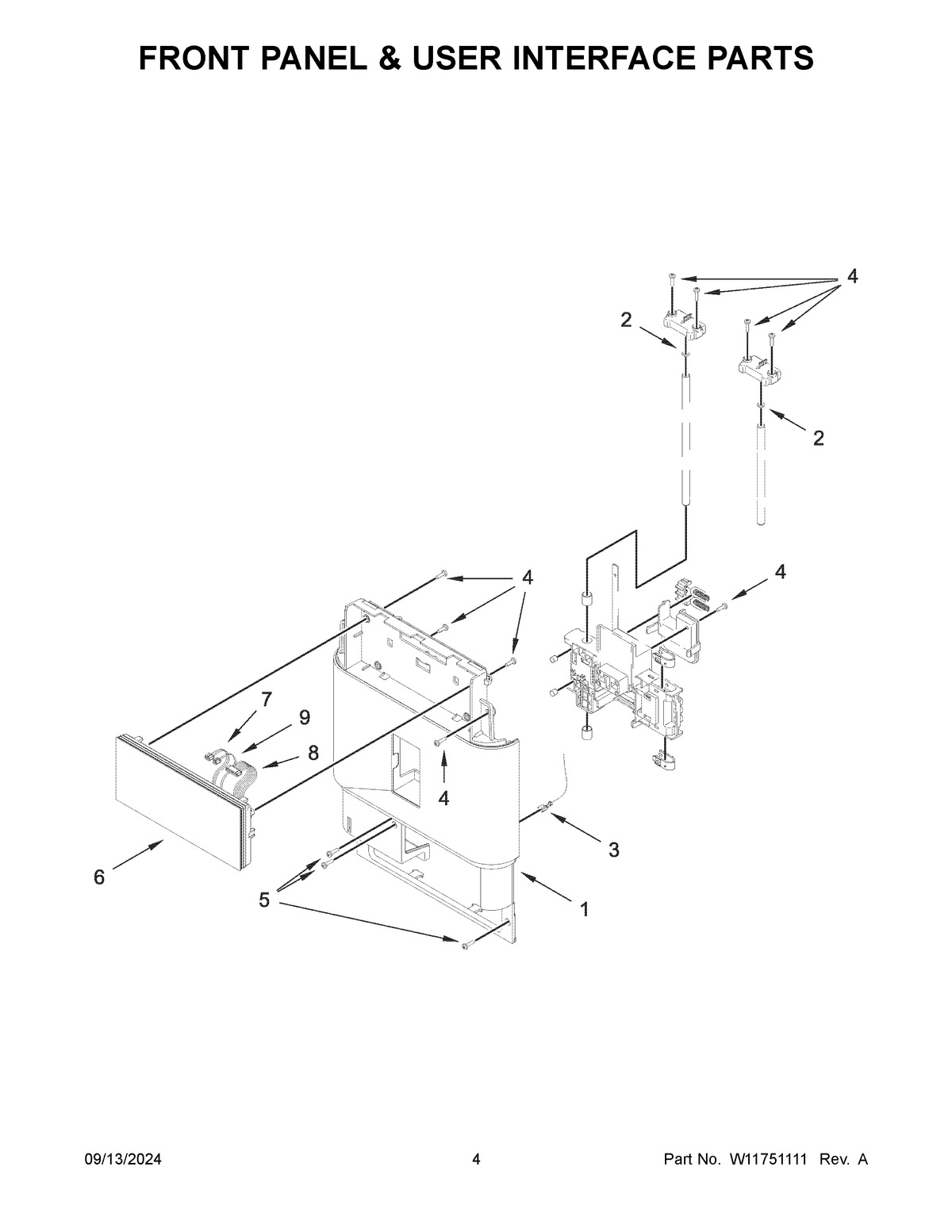

5KES8558EJP0 03 – FRONT PANEL & USER INTERFACE PARTS

5KES8558EJP0 03 – FRONT PANEL & USER INTERFACE PARTS

Written by

in

5KES8558EJP0 03 – FRONT PANEL & USER INTERFACE PARTS

Products

PositionProduct
1PANEL, FRONT (CAST IRON BLACK)
1BPANEL, FRONT (PORCELAIN WHITE)
1CPANEL, FRONT (STAINLESS STEEL FINISH)
1APANEL, FRONT (JUNIPER BERRY)
2O-RING
3WIRE, BREW HEAD TO BOILER COVER
4SCREW
5SCREW
6DISPLAY, USER INTERFACE
7JUMPER, BREW HEAD TO UI
8JUMPER, UI TO PCBA
9JUMPER, PIEZO BOARD TO PCBA
