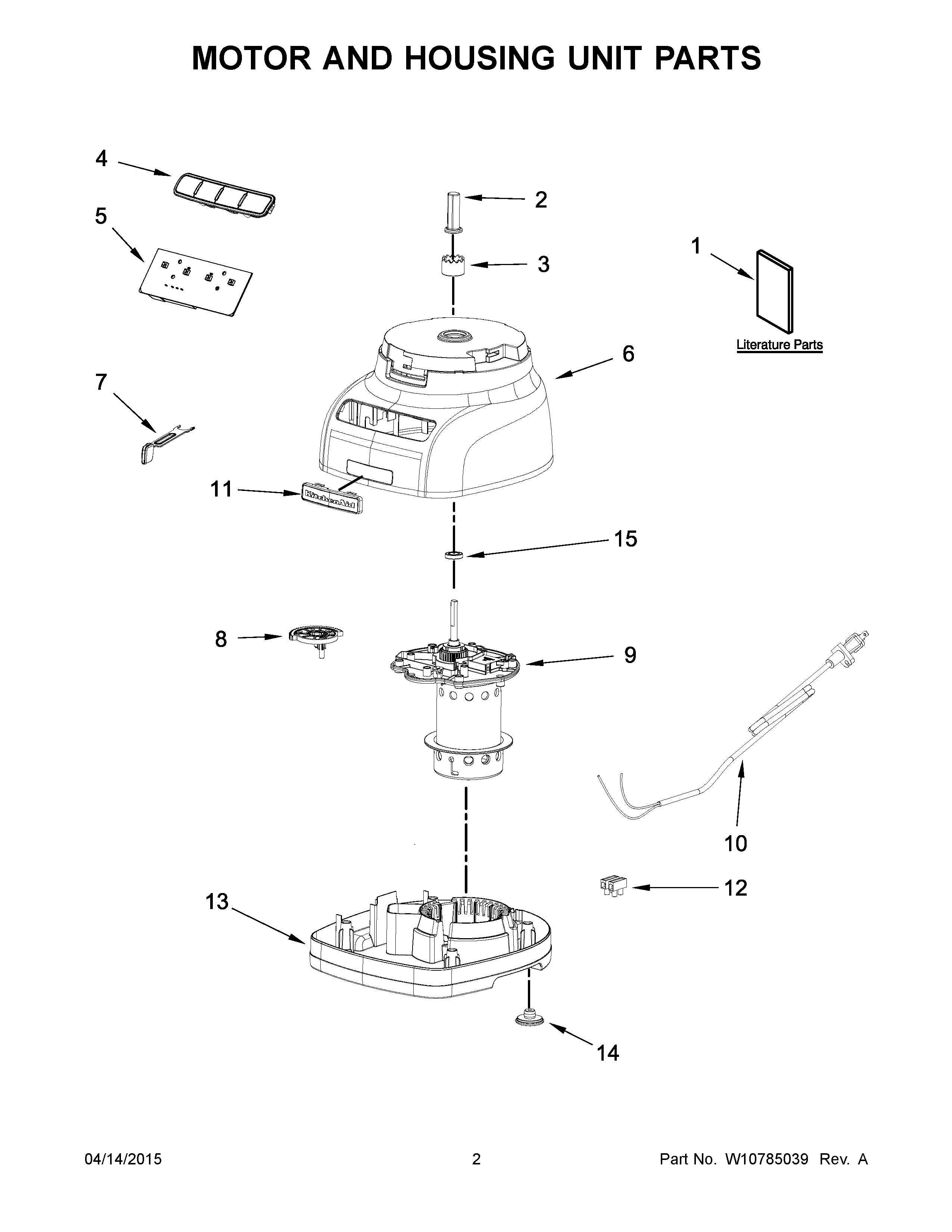

5KFP1444GFP0 02 – MOTOR AND HOUSING UNIT PARTS

5KFP1444GFP0 02 – MOTOR AND HOUSING UNIT PARTS

Written by

in

5KFP1444GFP0 02 – MOTOR AND HOUSING UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2WPW10451326 Whirlpool Adapter
3WPW10451327 Whirlpool Support
4W10592795 Whirlpool Overlay
5PCB ASSEMBLY
6AHOUSING, UPPER (MEDALLION SILVER)
6BHOUSING, UPPER (FROSTED PEARL)
6HOUSING, UPPER (CANDY APPLE)
7BUTTON, ADJUST
8LEVER, ADJUST CONTROL
9MOTOR WITH GEARBOX
10APOWER CORD (INDIA)
10POWER CORD (ASIA)
11NAMEPLATE
12BLOCK, TERMINAL
13BASE, HOUSING
14W10451320 Whirlpool Foot Assembly
15BEARING, BALL
