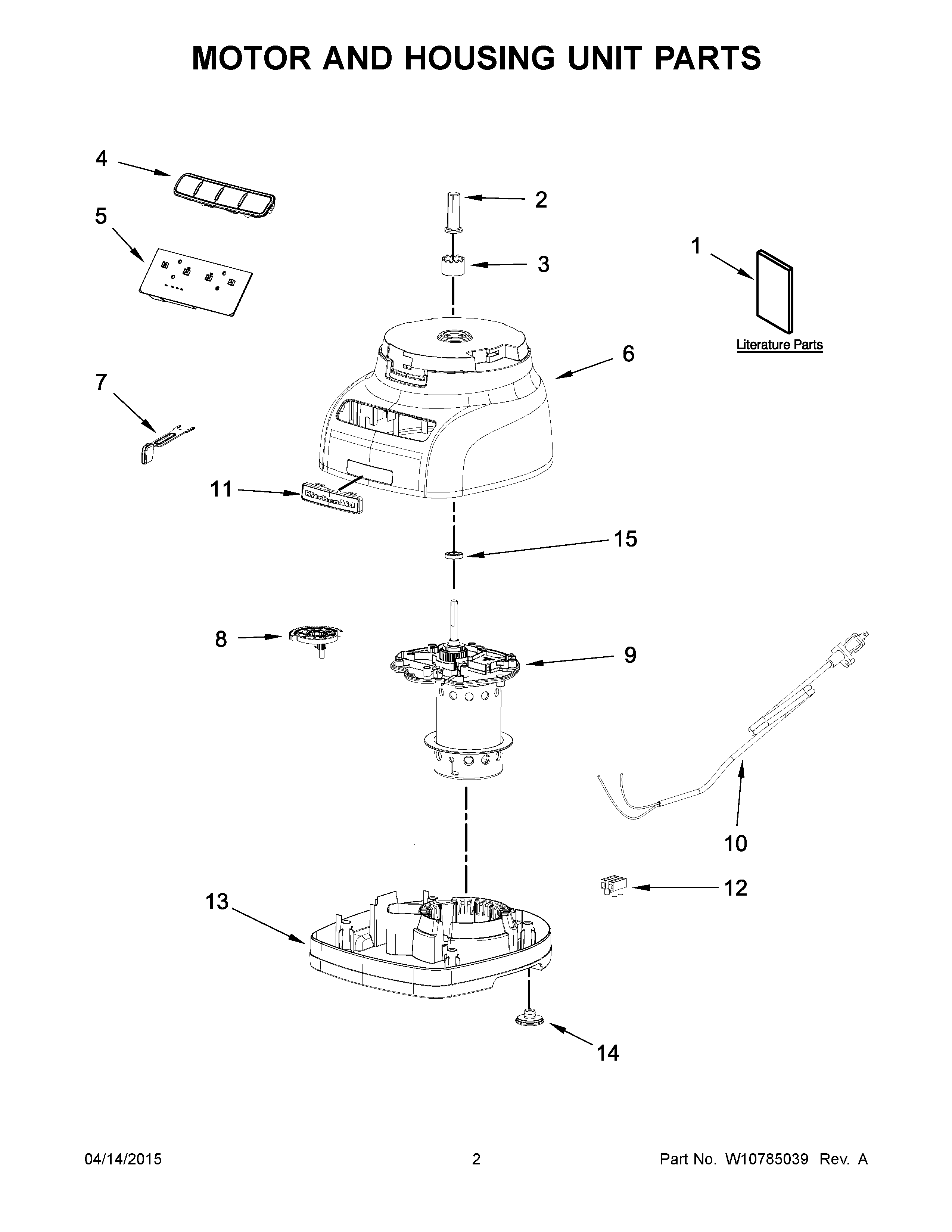

5KFP1444GMS0 02 – MOTOR AND HOUSING UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	WPW10451326 Whirlpool Adapter
3	WPW10451327 Whirlpool Support
4	W10592795 Whirlpool Overlay
5	PCB ASSEMBLY
6A	HOUSING, UPPER (MEDALLION SILVER)
6B	HOUSING, UPPER (FROSTED PEARL)
6	HOUSING, UPPER (CANDY APPLE)
7	BUTTON, ADJUST
8	LEVER, ADJUST CONTROL
9	MOTOR WITH GEARBOX
10A	POWER CORD (INDIA)
10	POWER CORD (ASIA)
11	NAMEPLATE
12	BLOCK, TERMINAL
13	BASE, HOUSING
14	W10451320 Whirlpool Foot Assembly
15	BEARING, BALL
