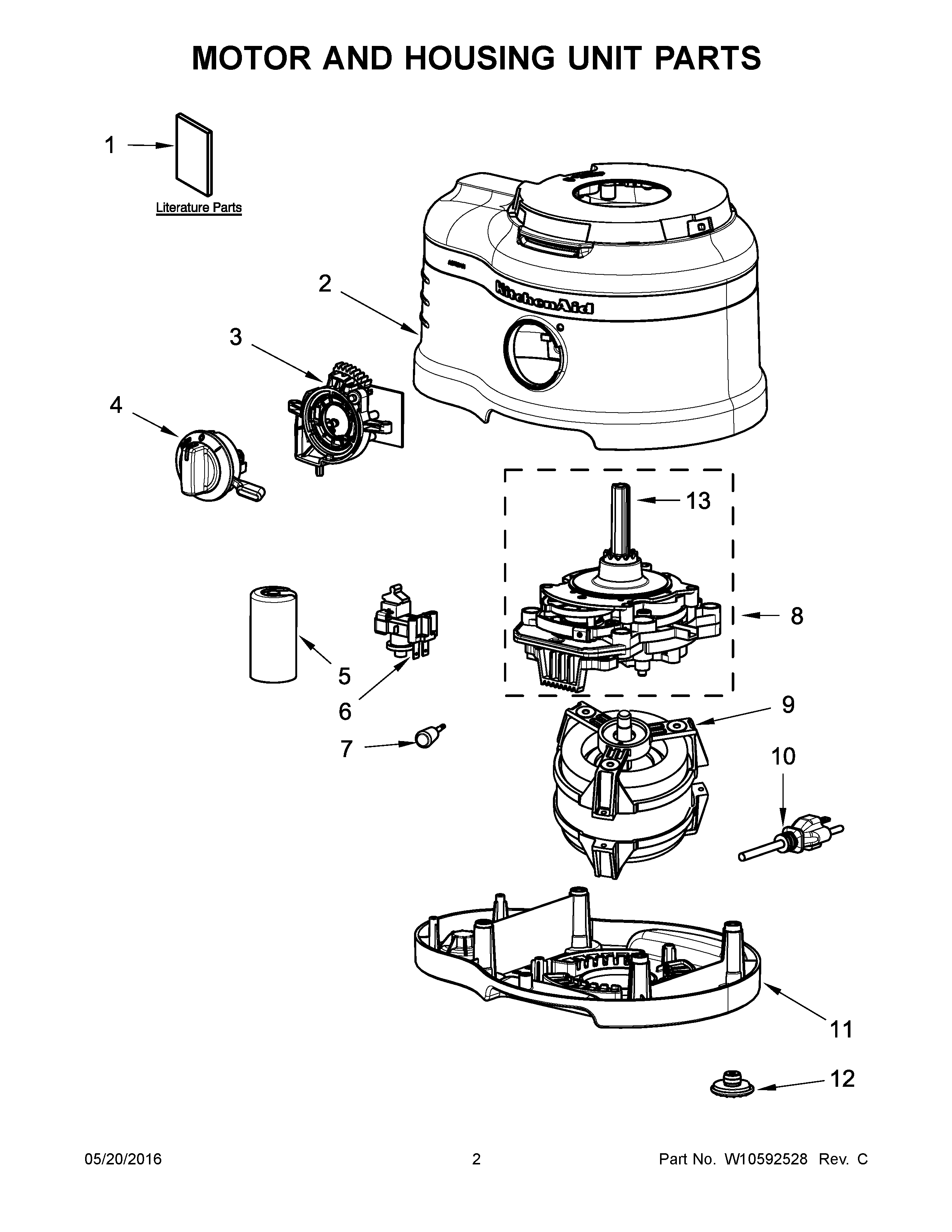

5KFP1644BER0 02 – MOTOR AND HOUSING UNIT PARTS

5KFP1644BER0 02 – MOTOR AND HOUSING UNIT PARTS

Written by

in

5KFP1644BER0 02 – MOTOR AND HOUSING UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AUSE AND CARE GUIDE, BRAZIL
2FHOUSING (CANDY APPLE, BRAZIL)
2EHOUSING (FROSTED PEARL)
2DHOUSING (ALMOND CREME)
2CHOUSING (EMPIRE RED)
2BHOUSING (CANDY APPLE)
2AHOUSING (MEDALLION SILVER)
2HOUSING (ONYX BLACK)
3W10597637 Whirlpool Button
4KNOB, ADJUST
5ACAPACITOR, BRAZIL
5CAPACITOR
6SWITCH, RELAY ASSEMBLY
7WPW10597675 Whirlpool Knob
8W10597642 Whirlpool Gearbox
9MOTOR
10CCORD, POWER (BRAZIL)
10BCORD, POWER (AUSTRALIA)
10ACORD, POWER (UNITED KINGDOM)
10CORD, POWER (EUROPE)
11W10597699 Whirlpool Base Assembly
11ABASE, BRAZIL
12FOOT
13W10895825 Whirlpool Shaft
