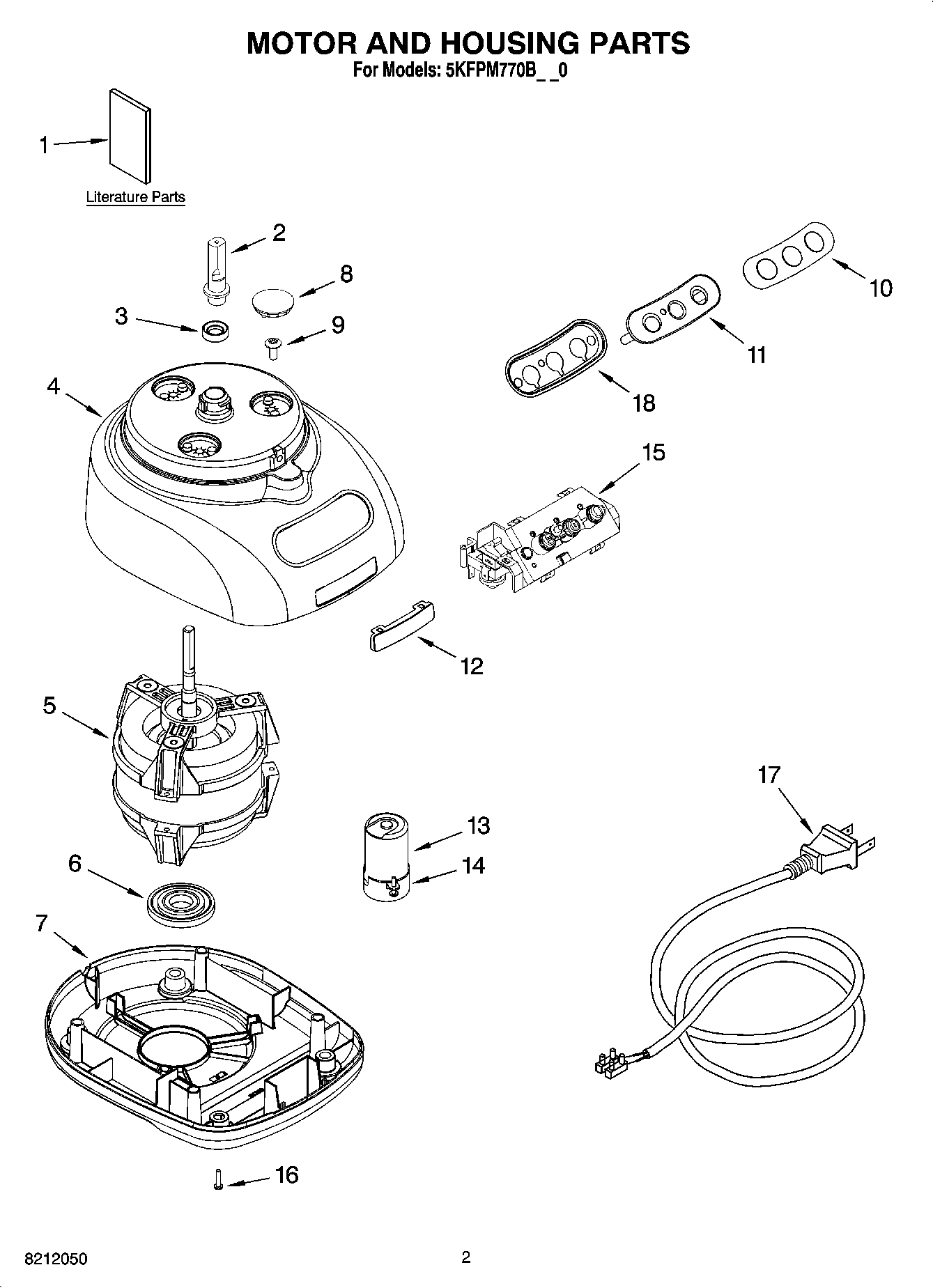

5KFPM770BOB0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Nickel)
4	Housing, Motor (Almond Creme)
4	Housing, Motor (White)
4	Housing, Motor (Empire Red)
5	Motor
6	Grommet, Motor
7	Base, Housing (White)
7	Base, Housing (Empire Red)
7	Base, Housing (Onyx Black)
7	Base, Housing (Almond Creme)
8	Cover, Screw (Almond Creme)
8	Cover, Screw (White)
8	Cover, Screw (Onyx Black)
8	Cover, Screw (Empire Red)
9	Screw, Motor Locking
10	Overlay w/Cover
10	Overlay, Switch (Black)
11	Cover, Panel Switch (Silver)
11	Cover, Panel Switch (Transparent)
12	Nameplate
13	Capacitor
14	Clip, Capacitor
15	Relay/Switch Assy
16	Foot (White)
16	Foot (Black)
17	Cord, Power (Black)
17	Cord, Power (White)
18	Bezel, Switch Panel
