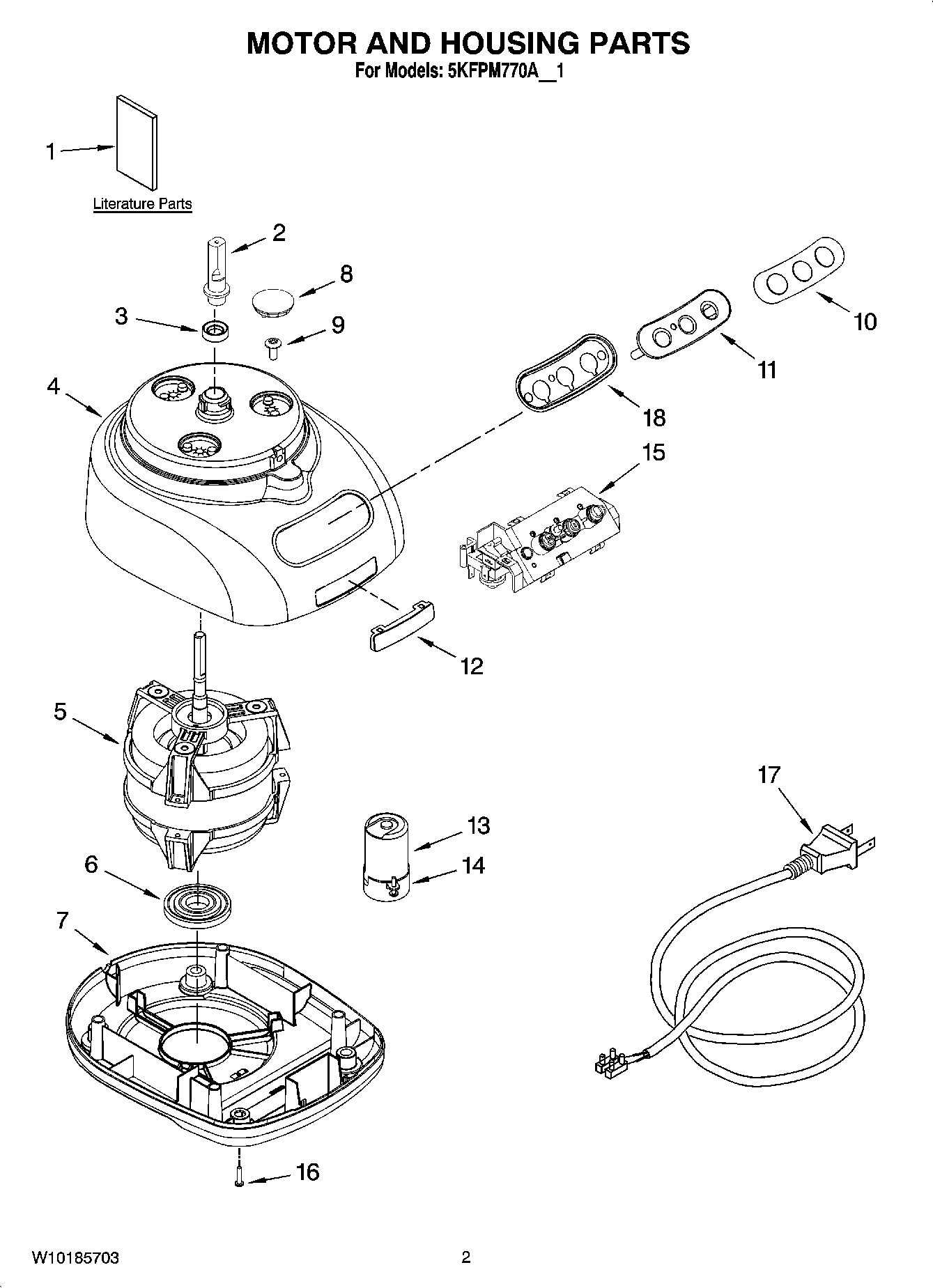

5KFPM770PM1 01 – MOTOR AND HOUSING PARTSadmin2025-04-26T11:38:23+00:005KFPM770PM1 01 – MOTOR AND HOUSING PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Repair Parts List |
| 2 | Sleeve, Motor Shaft |
| 3 | Seal, Oil |
| 4 | Housing, Motor (White) |
| 4 | Housing, Motor (Nickel) |
| 4 | Housing, Motor (Empire Red) |
| 4 | Housing, Motor (Almond Creme) |
| 4 | Housing, Motor (Pearl Metallic) |
| 5 | Motor |
| 6 | Grommet, Motor |
| 7 | Base, Housing (Almond Creme) |
| 7 | Base, Housing (Empire Red) |
| 7 | Base, Housing (White) |
| 7 | Base, Housing (Onyx Black) |
| 8 | Cover, Screw (Onyx Black) |
| 8 | Cover, Screw (White) |
| 8 | Cover, Screw (Almond Creme) |
| 8 | Cover, Screw (Empire Red) |
| 9 | Screw, Motor Locking |
| 10 | Overlay, Switch (Black) |
| 10 | Overlay w/Cover |
| 11 | Cover, Panel Switch (Transparent) |
| 11 | Cover, Panel Switch (Silver) |
| 12 | Nameplate |
| 13 | Capacitor |
| 14 | Clip, Capacitor |
| 15 | Relay/Switch Assy |
| 16 | Foot (Black) |
| 16 | Foot (White) |
| 17 | Cord, Power (Black) |
| 17 | Cord, Power (White) |
| 18 | Bezel, Switch Panel |
