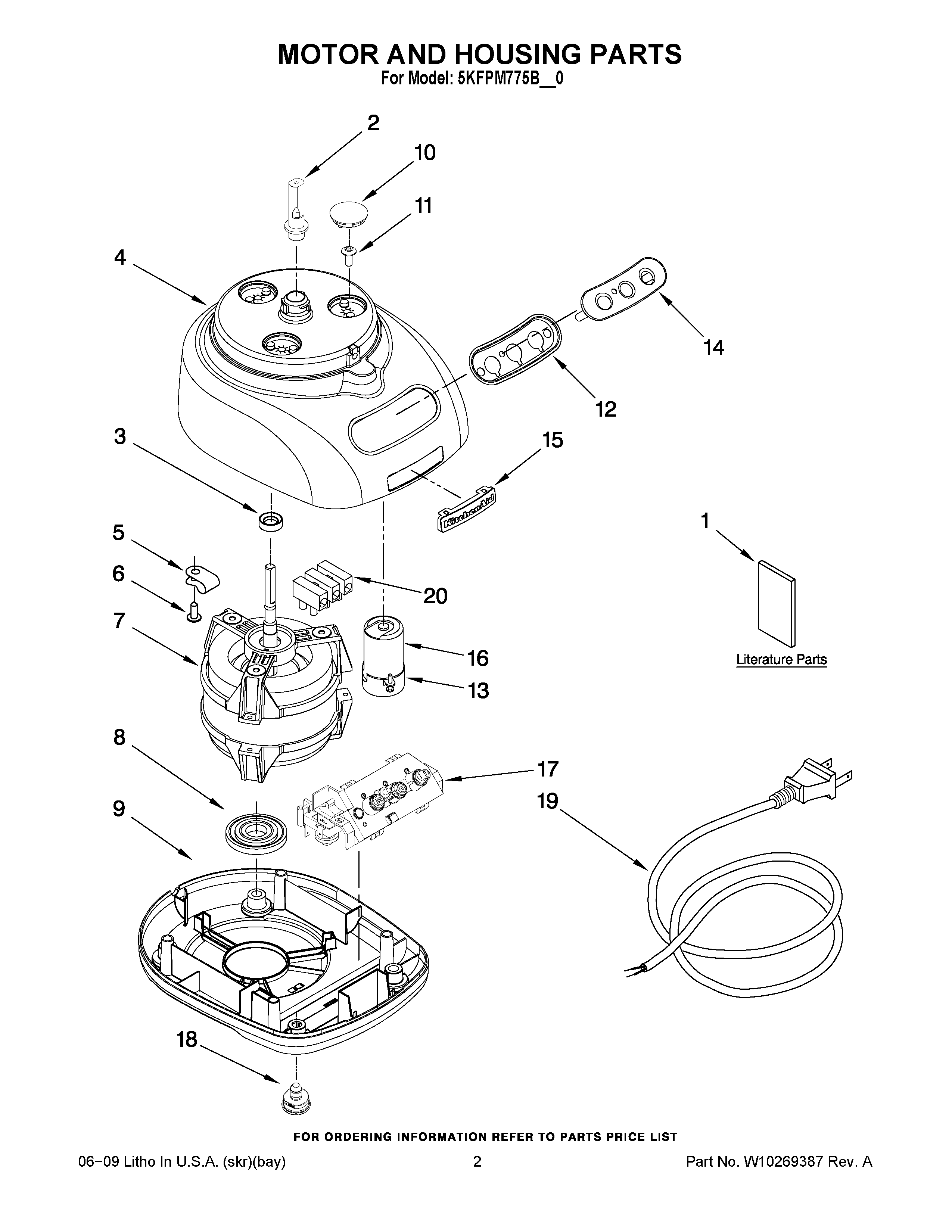

5KFPM775BPM0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE GUIDE
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Empire Red)
4	HOUSING, MOTOR (BLACK)
4	Housing, Motor (Pearl Metallic)
4	Housing, Motor (Almond Creme)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	BASE, HOUSING (ALMOND CREME)
9	BASE, HOUSING (BLACK)
9	BASE, HOUSING (EMPIRE RED)
10	Cover, Screw (Empire Red)
10	Cover, Screw (Almond Creme)
10	COVER, SCREW (BLACK)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	Overlay w/Cover
15	NAMEPLATE
16	Capacitor
17	Relay/Switch Assy
18	Foot (Black)
18	Foot (White)
19	Cord, Power (White)
19	Cord, Power (Black)
20	Block, Terminal
