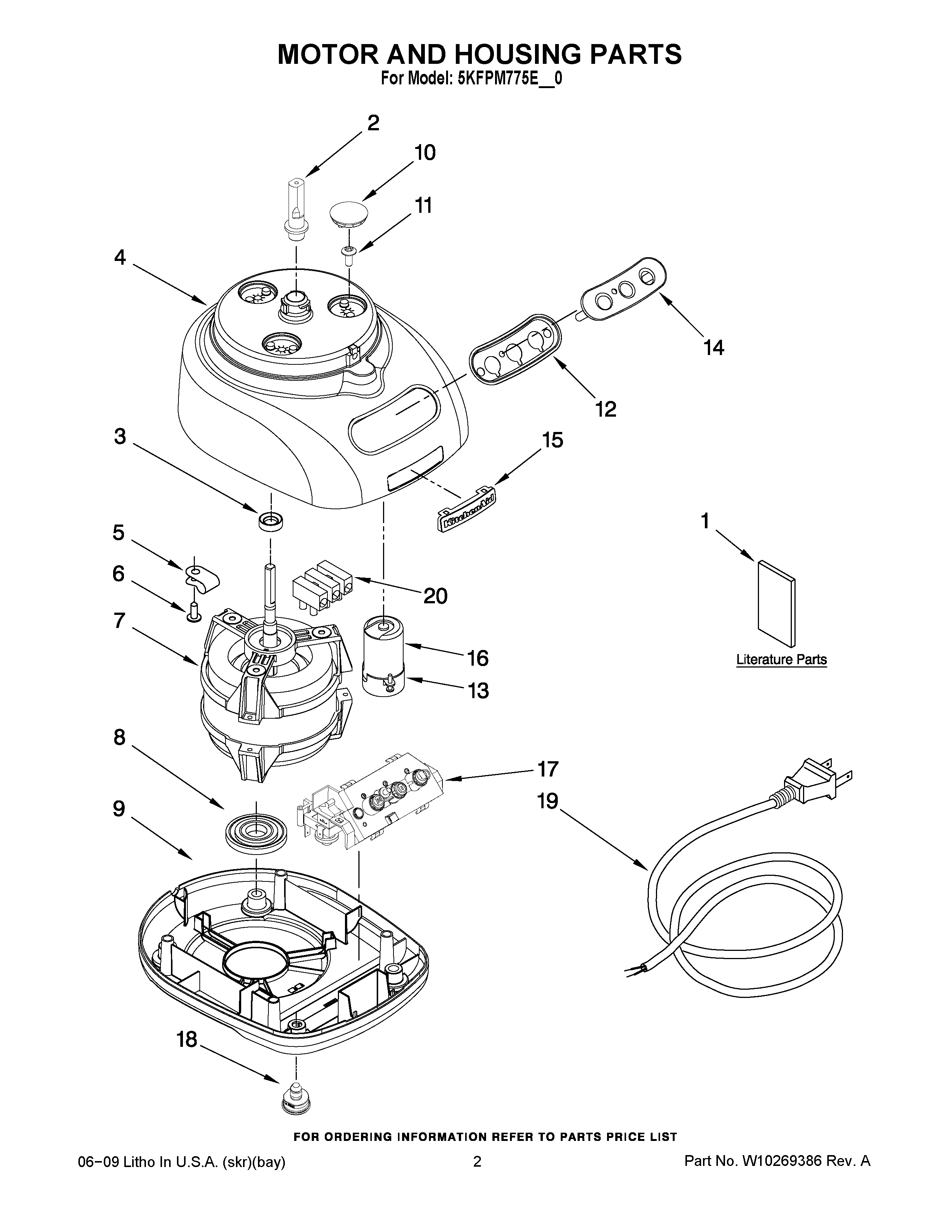

5KFPM775EOB0 01 – MOTOR AND HOUSING PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1USE & CARE GUIDE
2Sleeve, Motor Shaft
3Seal, Oil
4HOUSING, MOTOR (BLACK)
4Housing, Motor (Empire Red)
4Housing, Motor (Almond Creme)
4Housing, Motor (Pearl Metallic)
52185825 Whirlpool Refrigerator Clamp
6Screw, Clamp
7Motor
8Grommet, Motor
9BASE, HOUSING (EMPIRE RED)
9BASE, HOUSING (ALMOND CREME)
9BASE, HOUSING (BLACK)
10COVER, SCREW (BLACK)
10Cover, Screw (Almond Creme)
10Cover, Screw (Empire Red)
11Screw, Motor Locking
12Bezel, Switch Panel
13Clip, Capacitor
14Overlay w/Cover
15NAMEPLATE
16Capacitor
17Relay/Switch Assy
18Foot (White)
18Foot (Black)
19Cord, Power (Black)
19Cord, Power (White)
20Block, Terminal
