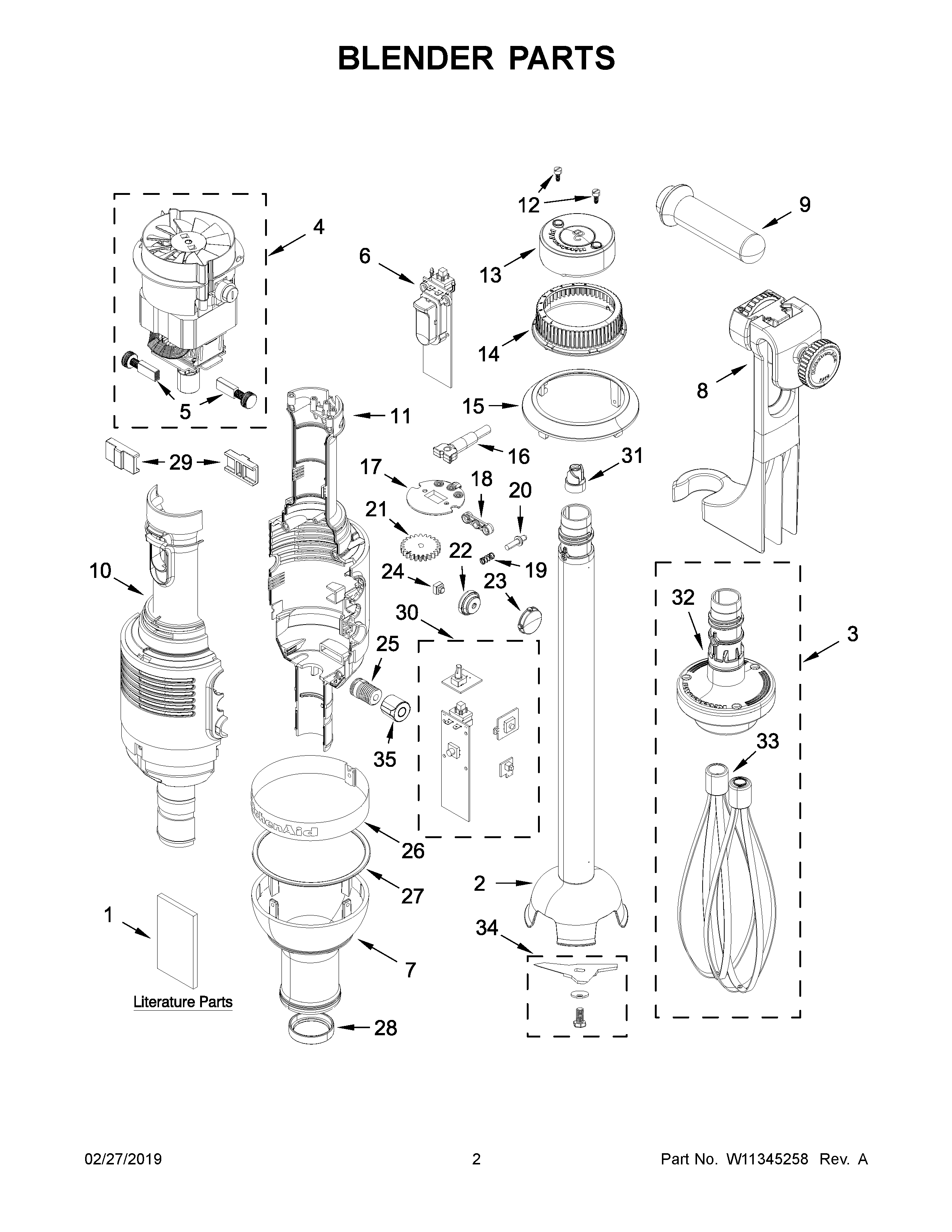

5KHBC414EOB0 02 – BLENDER PARTSadmin2025-04-26T11:38:01+00:005KHBC414EOB0 02 – BLENDER PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE |
| 2 | W10860149 Whirlpool Blender Arm |
| 2A | W10860150 Whirlpool Blender Arm |
| 2B | W10860151 Whirlpool Blender Arm |
| 2C | W10860152 Whirlpool Blender Arm |
| 2D | BLENDER ARM - 20" |
| 3 | WHISK |
| 4 | MOTOR ASSEMBLY (INCLUDES BRUSHES) |
| 5 | CABINET (NOT A SERVICEABLE PART) |
| 6 | PCBA & SWITCH ASSEMBLY (INCLUDES 30, EUROPE/UNITED KINGDOM/AUSTRALIA) |
| 7 | APRON ASSEMBLY |
| 8 | BOWL CLAMP ASSEMBLY |
| 9 | W10860164 Whirlpool Handle |
| 10 | MOTOR HOUSING, FRONT |
| 11 | MOTOR HOUSING, BACK (EUROPE/UNITED KINGDOM) |
| 12 | SCREW, HANDLE CAP |
| 13 | HANDLE CAP |
| 14 | W10860169 Whirlpool Button Assembly |
| 15 | SPEED SELECTOR BASE |
| 16 | POWER CORD (EUROPE) |
| 17 | CORD LOCK |
| 18 | SPRING STOP PLATE |
| 19 | SPRING, INTERLOCK |
| 20 | KNOB, AGITATOR |
| 21 | PINION, SPEED SELECTOR |
| 22 | W10860179 Whirlpool Rubber |
| 23 | BUTTON, CONTINUOUS RUN |
| 24 | RUBBER, INTERLOCK SWITCH |
| 25 | W10860183 Whirlpool Nut Assembly |
| 26 | TRIM BAND (EUROPE/UNITED KINGDOM) |
| 27 | GASKET |
| 28 | W10860187 Whirlpool Rubber Grommet |
| 29 | RUBBER, MOTOR SIDE |
| 30 | PCBA ASSEMBLY (EUROPE/UNITED KINGDOM/AUSTRALIA) |
| 31 | W10860192 Whirlpool Adapter |
| 32 | GEARBOX, WHISK |
| 33 | TINES, WHISK |
| 34 | W10860889 Whirlpool Blade |
| 35 | CAP, HUB |
