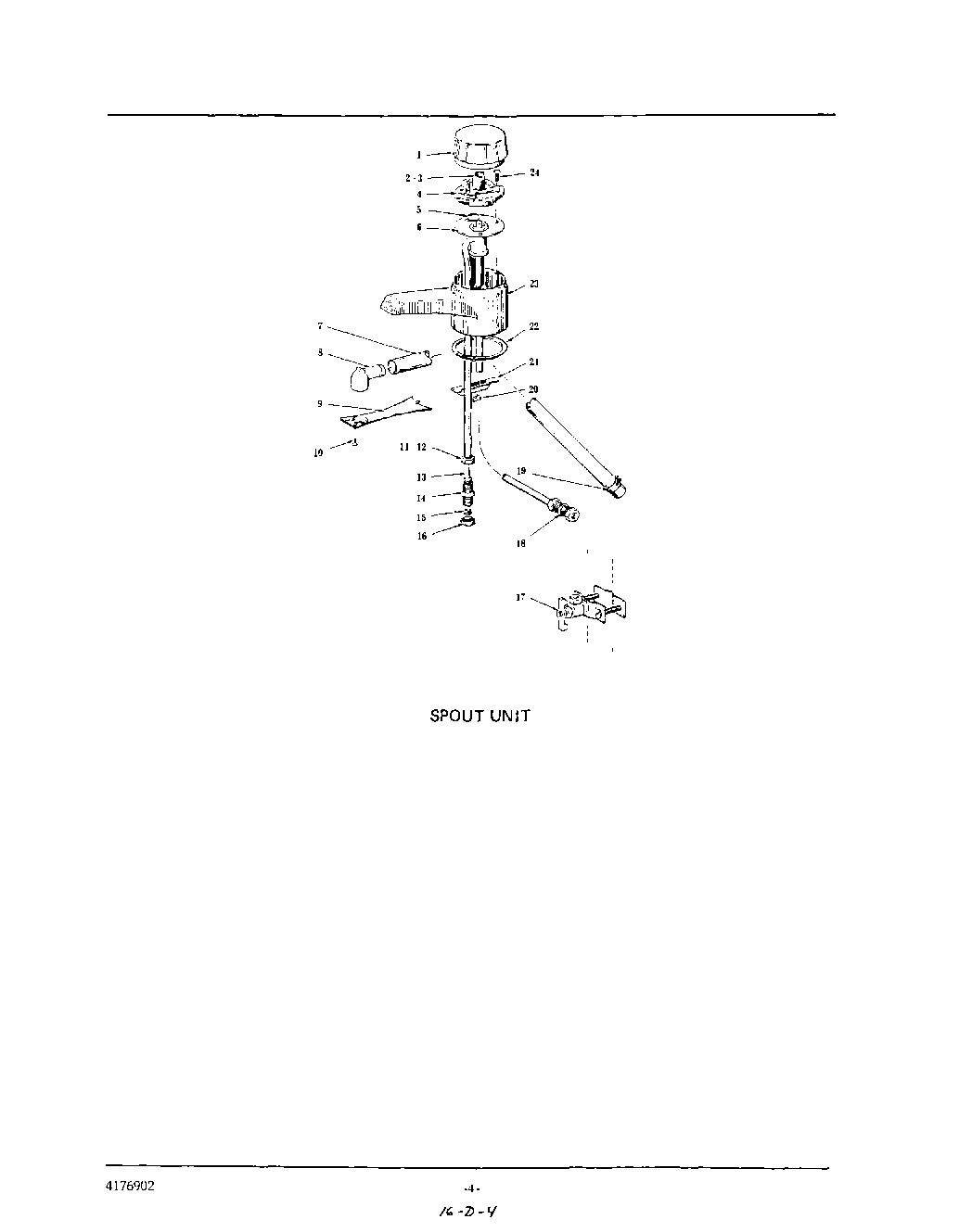

| 1 | Cap Assy |
| 2 | Hub - Valve Drive |
| 3 | Spring - Compression |
| 4 | Hub - Cam |
| 5 | Cap Screw - 1/4``-20 x 5`` Rd. Hd |
| 6 | Mechanical Valve Assy. (Incls. items No.13 & 14) |
| 7 | Tube (3/8`` I.D.) |
| 8 | Spout & Screen Assy |
| 9 | Plate - Spout |
| 10 | Self-Tapping Screw - No.4-20 x 5/16`` Phil. Flat Undercut Hd. ``Plastite`` |
| 13 | Screen - Inlet |
| 15 | Sleeve - 1/4`` Compression Union |
| 16 | Nut - 1/4`` Compression Union |
| 17 | Self-Drilling Valve Assy |
| 18 | Union - Compression (1/4`` Tube to 1/4`` Tube) |
| 19 | Clamp (1/2`` O.D. Tubing) |
| 20 | Mach. Nut - 1/4``-20 Sq |
| 21 | Bracket - Spout |
| 22 | Seal - Sink |
| 23 | Body - Spout |
| 24 | Kit - Tube & Bracket Assy. (Incls. items No.17, 18, 19, 22 & No.3 on page 3) |
| 24 | Spout Unit Assy. (Incls. items No.1 thru 16, 19 thru 24) |
| 24 | Self-Tapping Screw - No.6-20 x 1/2`` Rd. Hd. Type BT |
