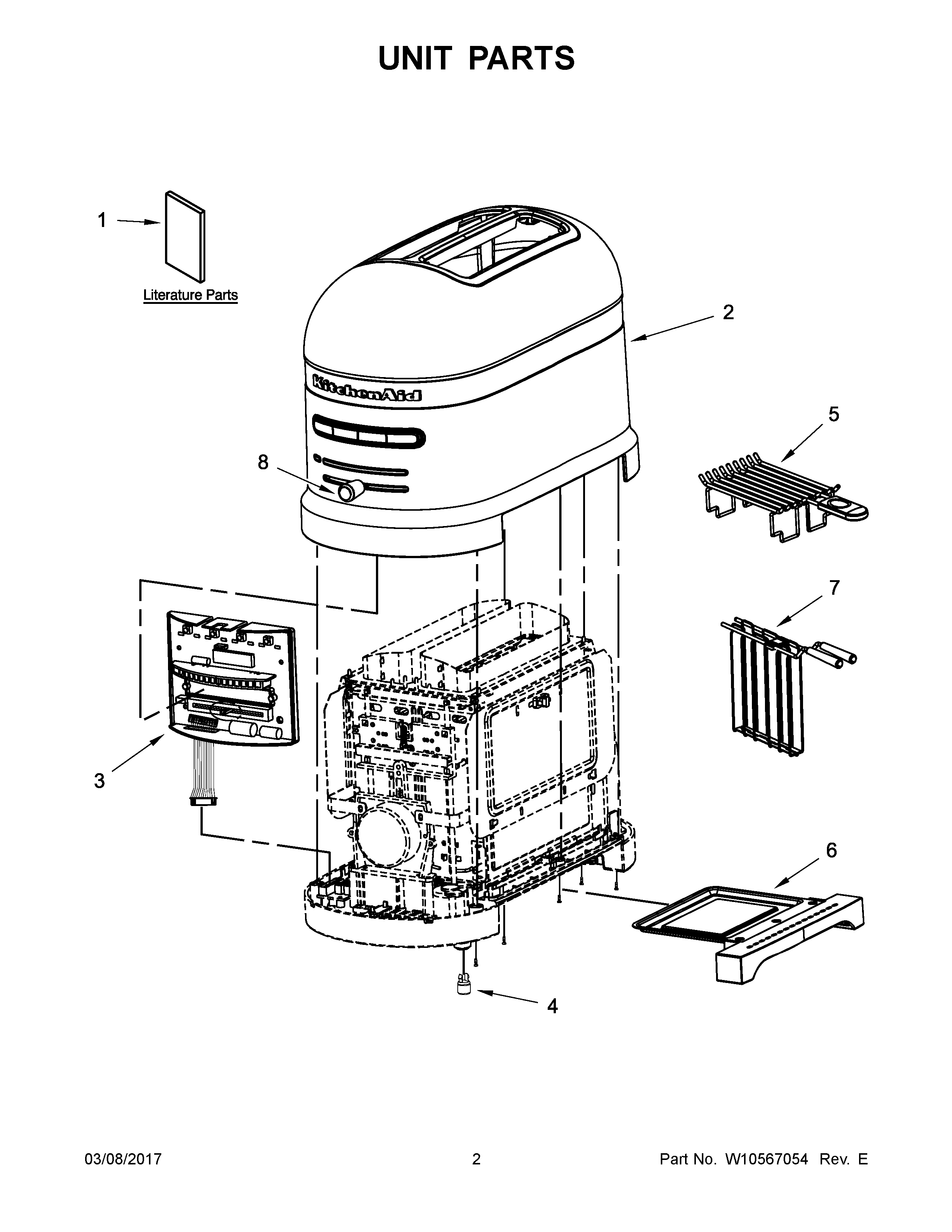

5KMT2204EAC0 02 – UNIT PARTSadmin2025-04-26T11:38:02+00:005KMT2204EAC0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE (EUROPE/BRITAIN) |
| 1A | USE AND CARE GUIDE, (AUSTRALIA AND BRAZIL) |
| 2I | HOUSING, UPPER (IMPERIAL BLACK (AUSTRALIA)) |
| 2H | HOUSING, UPPER (PISTACHIO) |
| 2G | HOUSING, UPPER (IMPERIAL BLACK) |
| 2F | HOUSING, UPPER (RASPBERRY ICE) |
| 2E | HOUSING, UPPER (ALMOND CREME) |
| 2D | HOUSING, UPPER (EMPIRE RED) |
| 2C | HOUSING, UPPER (FROSTED PEARL) |
| 2B | HOUSING, UPPER (MEDALLION SILVER) |
| 2A | HOUSING, UPPER (CANDY APPLE) |
| 2 | HOUSING, UPPER (ONYX BLACK) |
| 2J | HOUSING, UPPER (SUGAR PEARL (AUSTRALIA)) |
| 3 | WPW10567068 Whirlpool Control Board |
| 4 | FOOT, (INCLUDES FRONT AND REAR) |
| 5 | WARMER, BUN |
| 6H | TRAY, CRUMB (PISTACHIO) |
| 6F | TRAY, CRUMB (RASPBERRY ICE) |
| 6E | TRAY, CRUMB (ALMOND CREME) |
| 6D | TRAY, CRUMB (EMPIRE RED) |
| 6C | WPW10521159 Whirlpool Tray Assembly |
| 6B | WPW10521157 Whirlpool Tray Assembly |
| 6A | WPW10521158 Whirlpool Tray |
| 6 | WPW10521155 Whirlpool Tray |
| 7 | RACK, SANDWICH |
| 8 | HANDLE, SLIDER |
