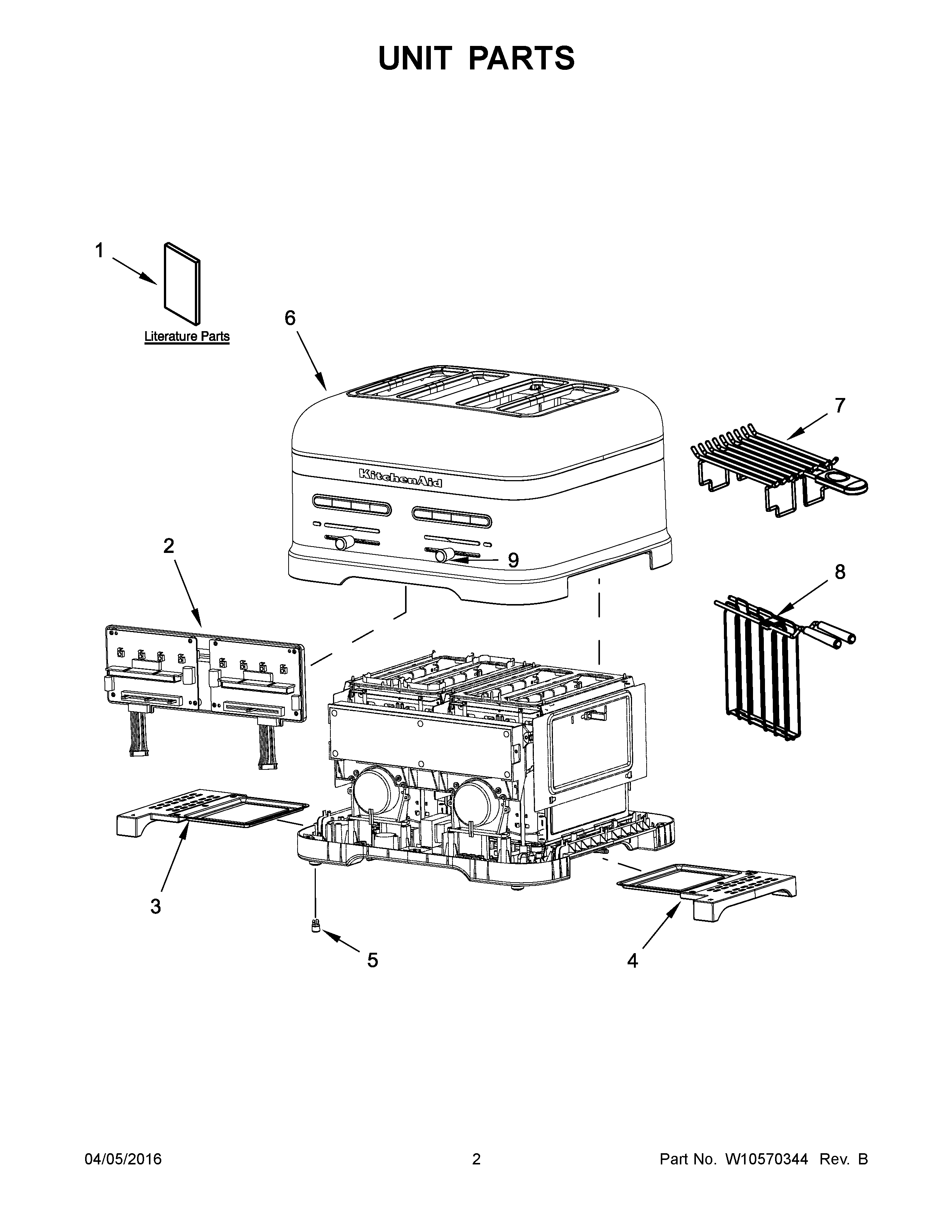

5KMT4204ACA0 02 – UNIT PARTS

5KMT4204ACA0 02 – UNIT PARTS

Written by

in

5KMT4204ACA0 02 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE (EUROPE/BRITAIN)
1AUSE & CARE GUIDE (AUSTRALIAN)
2WPW10570463 Whirlpool Control Board
3AW10539052 Whirlpool Tray Assembly
3BW10539053 Whirlpool Tray Assembly
3CTRAY, CRUMB (LEFT) (FROSTED PEARL)
3DTRAY, CRUMB (LEFT) (ALMOND CREME)
3ETRAY, CRUMB (LEFT) (EMPIRE RED)
3W10539054 Whirlpool Tray
4TRAY, CRUMB (RIGHT) (ONYX BLACK)
4AW10539043 Whirlpool Tray Assembly
4BW10539048 Whirlpool Tray
4CW10539042 Whirlpool Tray
4DTRAY, CRUMB (RIGHT) (ALMOND CREME)
4ETRAY, CRUMB (RIGHT) (EMPIRE RED)
5FOOT, (INCLUDES FRONT AND REAR)
6HOUSING (ONYX BLACK)
6AHOUSING (CANDY APPLE)
6BHOUSING (MEDALLION SILVER)
6CHOUSING (FROSTED PEARL)
6DHOUSING (ALMOND CREME)
6EHOUSING (EMPIRE RED)
7WARMER, BUN
8RACK, SANDWICH
9HANDLE, SLIDER
