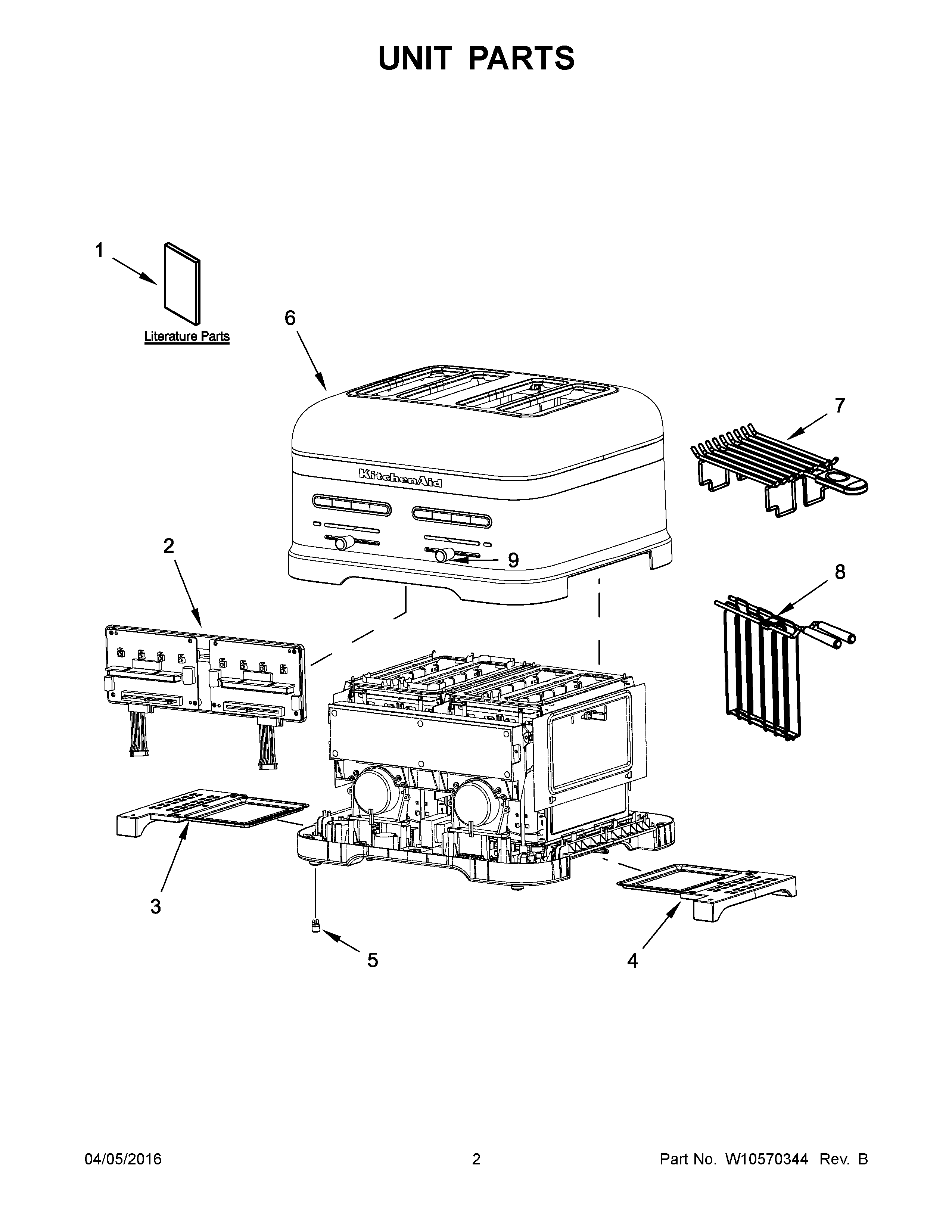

5KMT4205BFP0 02 – UNIT PARTSadmin2025-04-26T11:40:23+00:005KMT4205BFP0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE (EUROPE/BRITAIN) |
| 1A | USE & CARE GUIDE (AUSTRALIAN) |
| 2 | WPW10570463 Whirlpool Control Board |
| 3A | W10539052 Whirlpool Tray Assembly |
| 3B | W10539053 Whirlpool Tray Assembly |
| 3C | TRAY, CRUMB (LEFT) (FROSTED PEARL) |
| 3D | TRAY, CRUMB (LEFT) (ALMOND CREME) |
| 3E | TRAY, CRUMB (LEFT) (EMPIRE RED) |
| 3 | W10539054 Whirlpool Tray |
| 4 | TRAY, CRUMB (RIGHT) (ONYX BLACK) |
| 4A | W10539043 Whirlpool Tray Assembly |
| 4B | W10539048 Whirlpool Tray |
| 4C | W10539042 Whirlpool Tray |
| 4D | TRAY, CRUMB (RIGHT) (ALMOND CREME) |
| 4E | TRAY, CRUMB (RIGHT) (EMPIRE RED) |
| 5 | FOOT, (INCLUDES FRONT AND REAR) |
| 6 | HOUSING (ONYX BLACK) |
| 6A | HOUSING (CANDY APPLE) |
| 6B | HOUSING (MEDALLION SILVER) |
| 6C | HOUSING (FROSTED PEARL) |
| 6D | HOUSING (ALMOND CREME) |
| 6E | HOUSING (EMPIRE RED) |
| 7 | WARMER, BUN |
| 8 | RACK, SANDWICH |
| 9 | HANDLE, SLIDER |
