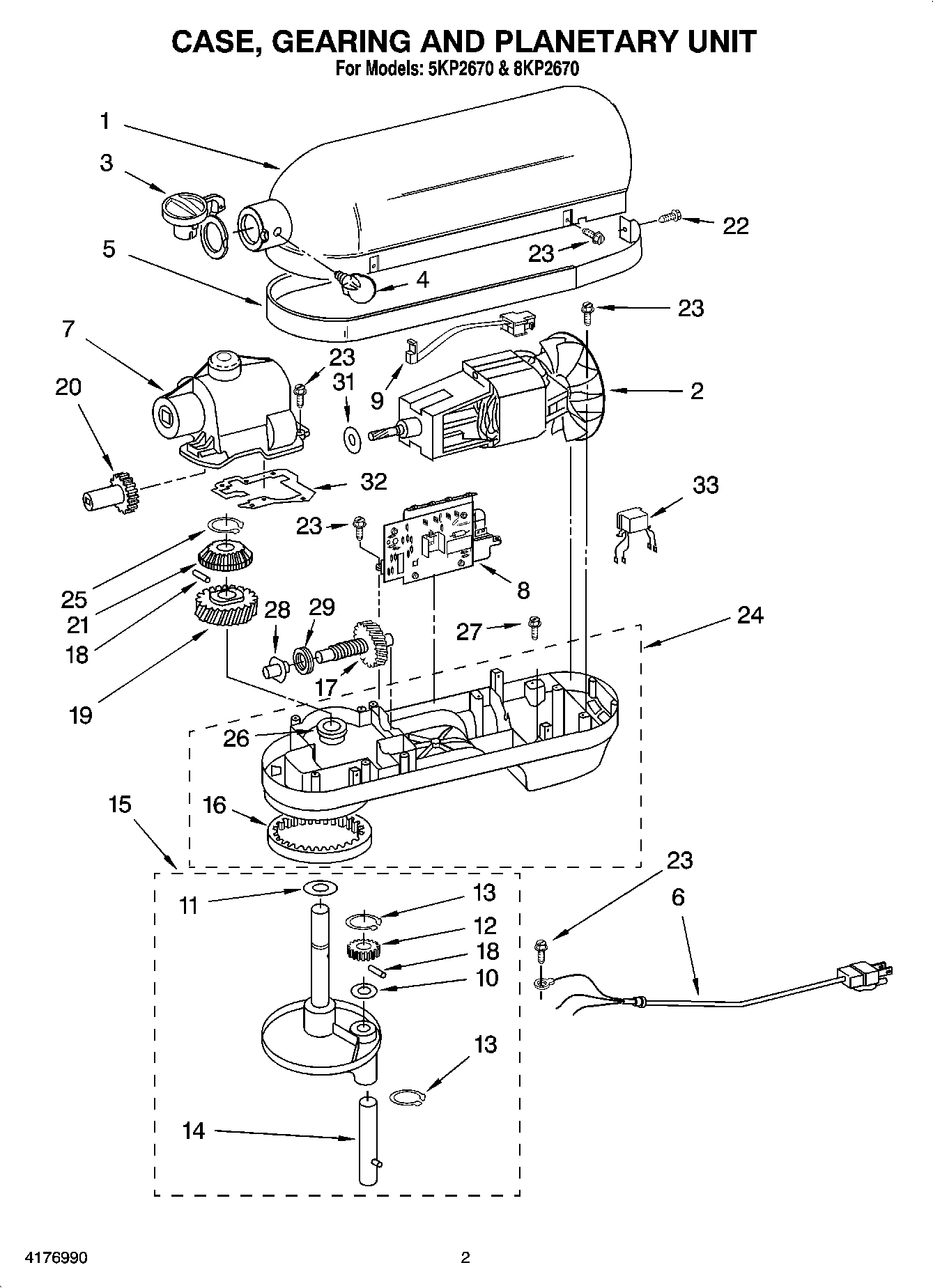

5KP2670 01 – CASE, GEARING AND PLANETARY UNIT

5KP2670 01 – CASE, GEARING AND PLANETARY UNIT

Written by

in

5KP2670 01 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
19703311 Whirlpool Housing Assembly
2Motor (10 Tooth) (Taiwan)
2Motor (10 Tooth) (International)
2WPW10247536 Whirlpool Motor
2WP9706549 Whirlpool Motor
3WP9703315 Whirlpool Hub Cap
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
6Power Cord (S/N WL18 – WL37)
6Power Cord (S/N WL18 – WP18)
6Power Cord (International)
6Power Cord (Australia)
6Power Cord (Taiwan)
8Control Assembly
9WP9706648 Whirlpool Speed Control
10WP9706090 Whirlpool Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14Agitator Shaft
15WP9708172 Whirlpool Planetary Assembly
16W11181966 Whirlpool Gear
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24WP9706047 Whirlpool Gearcase
25WP9703680 Whirlpool Retainer Ring
26WP16897 Whirlpool Bearing
27W10913677 Whirlpool Screw
28WPW10170080 Whirlpool Bearing Assembly
28WPW10170081 Whirlpool Bearing
29WP9703445 Whirlpool Bearing Kit Thrust
31WP9706247 Whirlpool Seal
328212396 Whirlpool Housing
339706073 Whirlpool Filter
