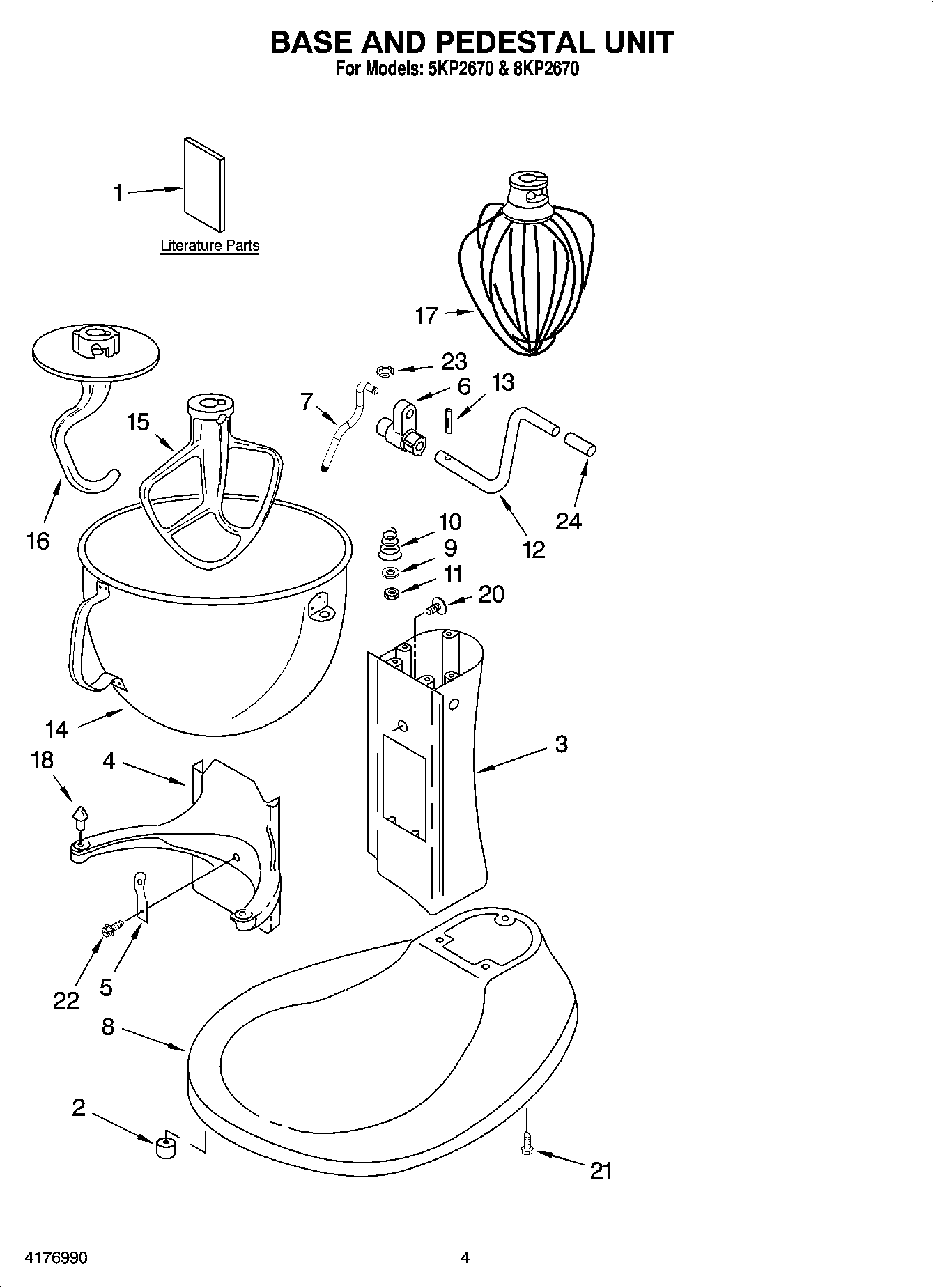

5KP2670 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

5KP2670 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Written by

in

5KP2670 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Products

PositionProduct
1Literature Parts (Use And Care Guide)
1Literature Parts (Repair Parts List)
28211628 Whirlpool Foot Assembly
39703673 Whirlpool Column
49703674 Whirlpool Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
89703690 Whirlpool Base
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
16W11319616 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
18WP240185 Whirlpool Bowl Retaining Pin
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
24W11501449 Whirlpool Handle Assembly
2467500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
24FOOD GRINDER (FG-A)
24JUICER (JE)
24CAN OPENER (CO)
24Food Tray (FT)
24W11200218 Whirlpool Grease Filter
24PASTA MAKER PLATES (SNPA)
24SAUSAGE STUFFER KIT (SSA)
24FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
24FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
24ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
24Grain Mill (GM-A)
