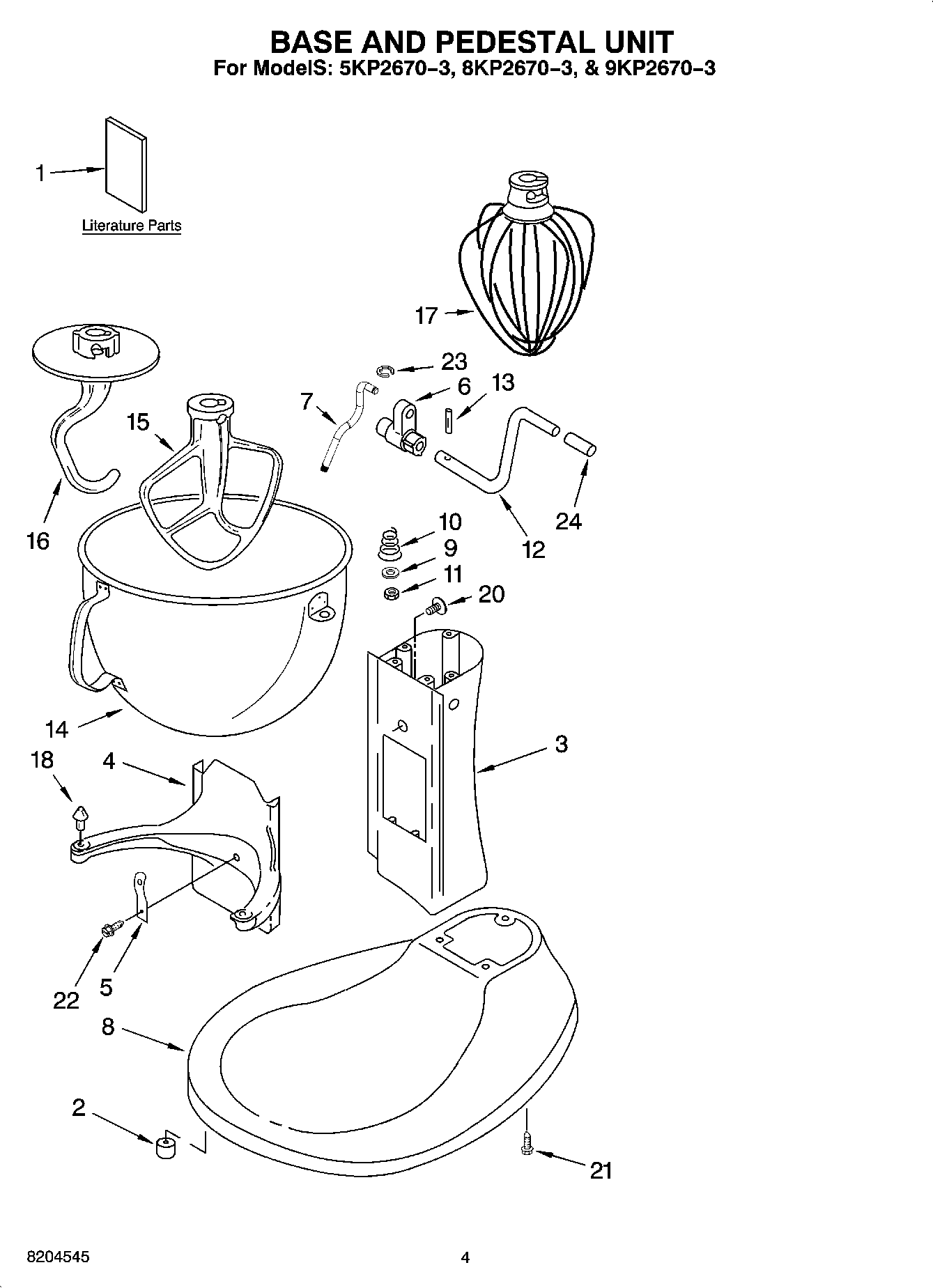

5KP2670-3 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

5KP2670-3 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Written by

in

5KP2670-3 02 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Use And Care Guide)
28211628 Whirlpool Foot Assembly
39703673 Whirlpool Column
49703674 Whirlpool Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
89703690 Whirlpool Base
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
16W11319616 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
18WP240185 Whirlpool Bowl Retaining Pin
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24W11501449 Whirlpool Handle Assembly
