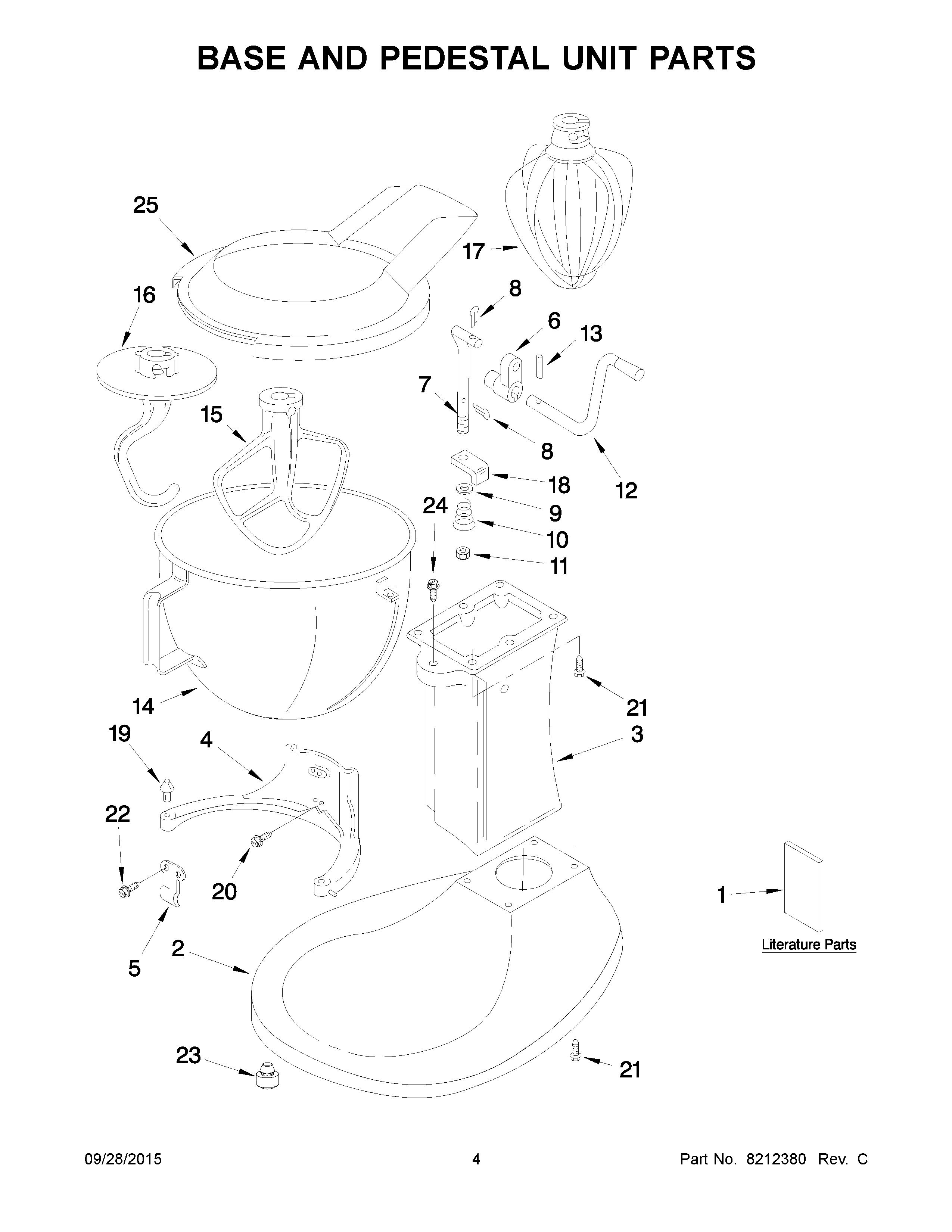

5KPM50BGR4 03 – BASE AND PEDESTAL UNIT PARTS

5KPM50BGR4 03 – BASE AND PEDESTAL UNIT PARTS

Written by

in

5KPM50BGR4 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
4CABINET (NOT A SERVICEABLE PART)
5WP3182857 Whirlpool Spring
6WP241764 Whirlpool Mixer Lift Arm Bowl
7W10598834 Whirlpool Lift Rod
8WP9704608 Whirlpool Cotter Pin
9W11708396 Whirlpool Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W10598843 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14W10802050 Whirlpool Mixer Bowl
15W10807813 Whirlpool Mixer Beater
16WPW10674621 Whirlpool Dough Hook Assembly
17WPW10731415 Whirlpool Stand Mixer Wire Whip
18240169 Whirlpool Bracket
19WP240185 Whirlpool Bowl Retaining Pin
20W10861883 Whirlpool Screw
21WP4162403 Whirlpool Screw
22WP4159193 Whirlpool Screw
23WP9708649 Whirlpool Foot
243182904 Whirlpool Screw
25W11312468 Whirlpool Pour Shelf
