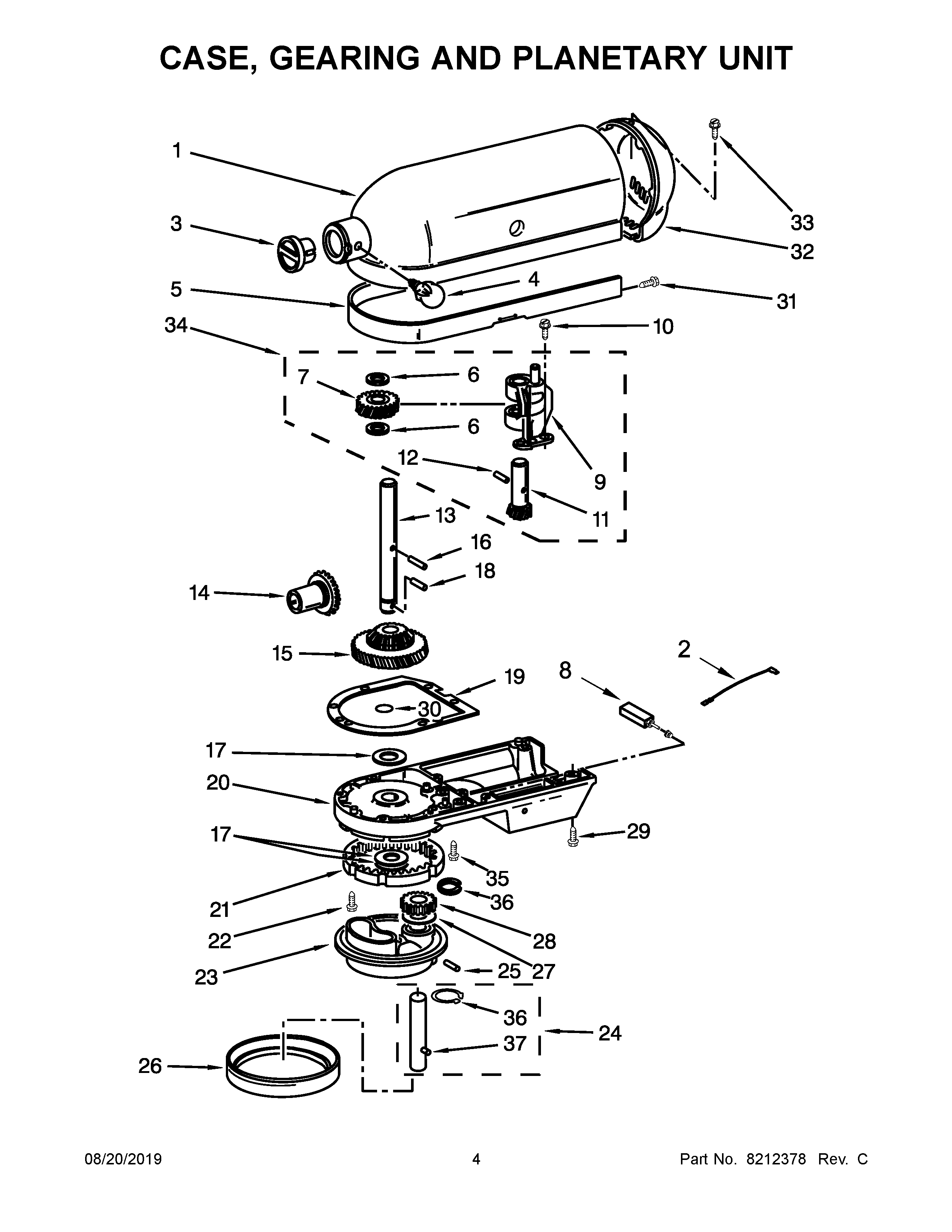

5KPM5BWH4 03 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
2	WPL 9702311
3	W11048596 Whirlpool Hub Chrome Cap
4	WP9709194 Whirlpool Black Thumb Screw
6	WPW10323373 Whirlpool Washer
7	WPW10112253 Whirlpool Gear Assembly
8	4176340 Whirlpool Refrigerator Mixer Filter
9	W11082541 Whirlpool Bearing
10	W11097298 Whirlpool Dishwasher Screw
11	Shaft & Pinion
12	WP9705444 Whirlpool Pin Groove
13	WP240026 Whirlpool Control Shaft
15	W11192794 Whirlpool HUB Gear
17	WPW10323378 Whirlpool Washer
18	WP9705443 Whirlpool Pin Groove
19	WP4162324 Whirlpool Case Gasket
21	W11340106 Whirlpool Gear Assembly
22	W11170598 Whirlpool Screw
24	WP243368 Whirlpool Agitator Shaft
25	Pin (Vertical Center Shaft)
26	WP240285 Whirlpool Drip Ring
27	WP9706090 Whirlpool Washer
28	W11133645 Whirlpool Pinion Gear
29	W11173547 Whirlpool Screw
30	O RING
31	W10853069 Whirlpool Screw
32	CABINET (NOT A SERVICEABLE PART)
33	WP241877 Whirlpool Screw
34	GEAR, WORM AND BRACKET
35	WP9708653 Whirlpool Screw
36	WP9703438 Whirlpool Snap Retaining Ring
37	W11664709 Whirlpool Groove Pin
