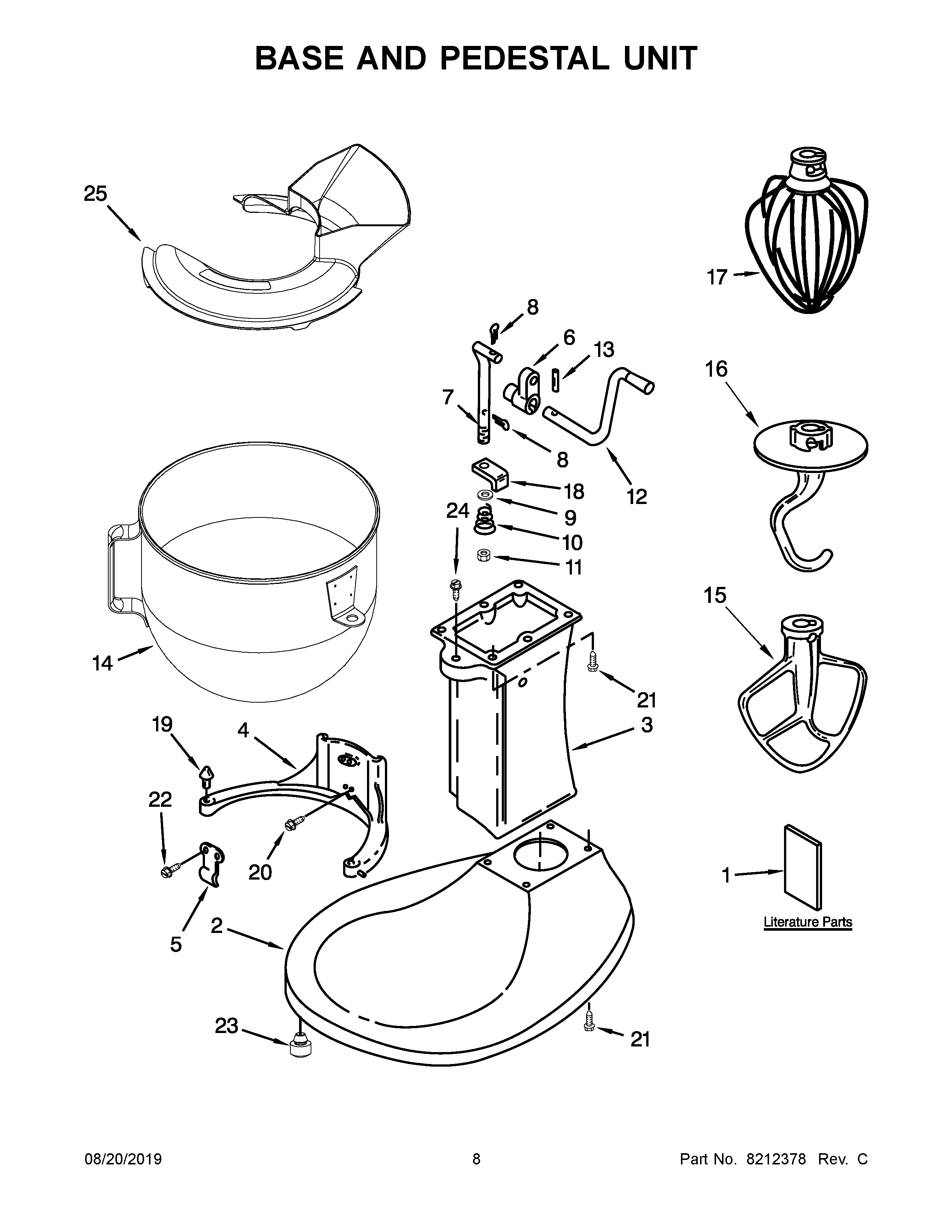

5KPM5BWH4 05 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	USE & CARE GUIDE
4	CABINET (NOT A SERVICEABLE PART)
5	WP3182857 Whirlpool Spring
6	WP241764 Whirlpool Mixer Lift Arm Bowl
7	W10598834 Whirlpool Lift Rod
8	WP9704608 Whirlpool Cotter Pin
9	WASHER
10	4159622 Whirlpool PP Spring
11	8533907 Whirlpool Dishwasher Nut
12	W10598843 Whirlpool Handle Assembly
13	WP9703442 Whirlpool Roll Pin
14	W10802050 Whirlpool Mixer Bowl
15	W10807813 Whirlpool Mixer Beater
16	WPW10674621 Whirlpool Dough Hook Assembly
17	WPW10731415 Whirlpool Stand Mixer Wire Whip
18	240169 Whirlpool Bracket
19	WP240185 Whirlpool Bowl Retaining Pin
20	W10861883 Whirlpool Screw
21	WP4162403 Whirlpool Screw
22	WP4159193 Whirlpool Screw
23	WP9708649 Whirlpool Foot
24	3182904 Whirlpool Screw
25	W11312468 Whirlpool Pour Shelf
