5KSB1320BOB0 03 – UNIT PARTS

5KSB1320BOB0 03 – UNIT PARTS

Written by

in

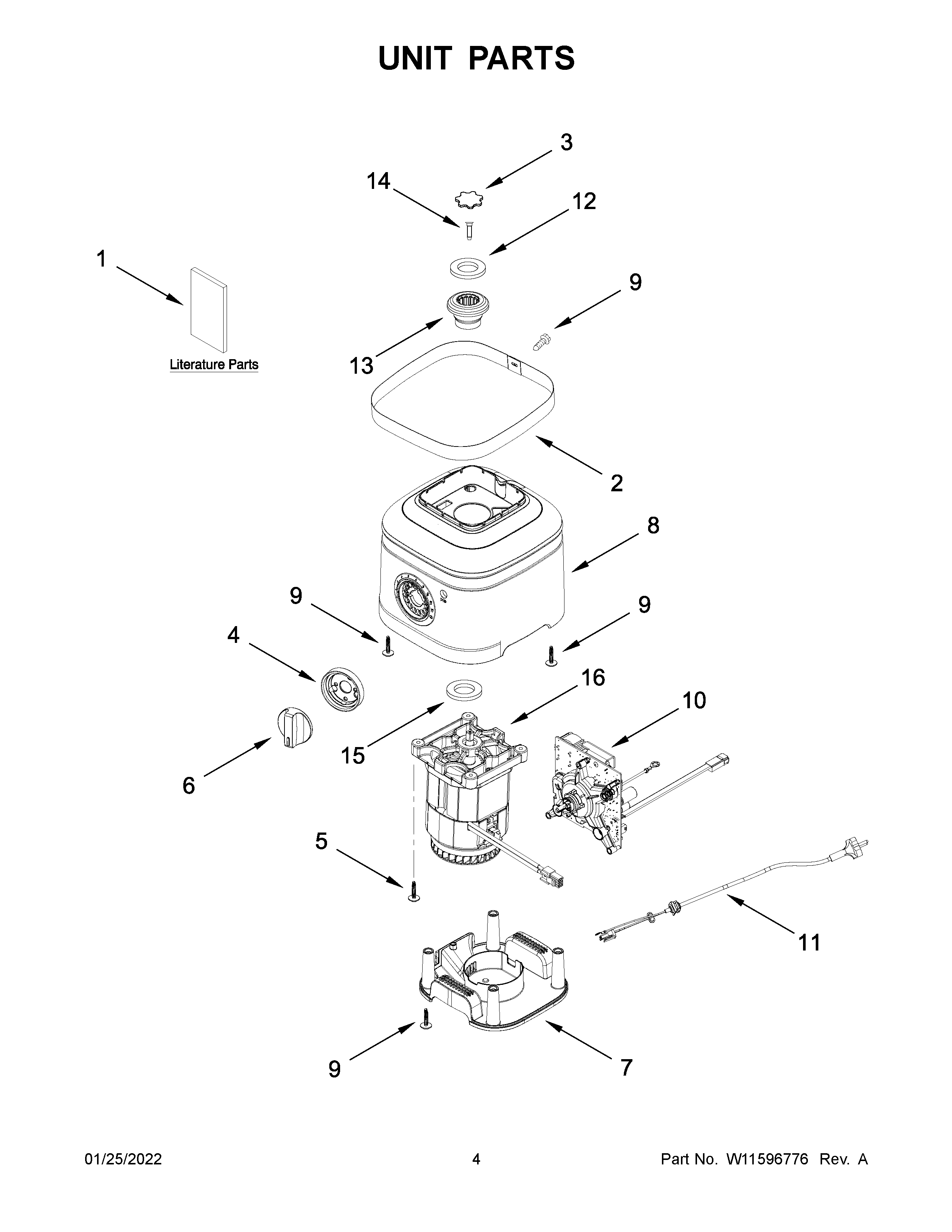

5KSB1320BOB0 03 – UNIT PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8	UPPER BASE (ONYX BLACK)
8A	UPPER BASE (WHITE)
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	W10912260 Whirlpool Shim
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP9709366 Whirlpool Seal
16	MOTOR
