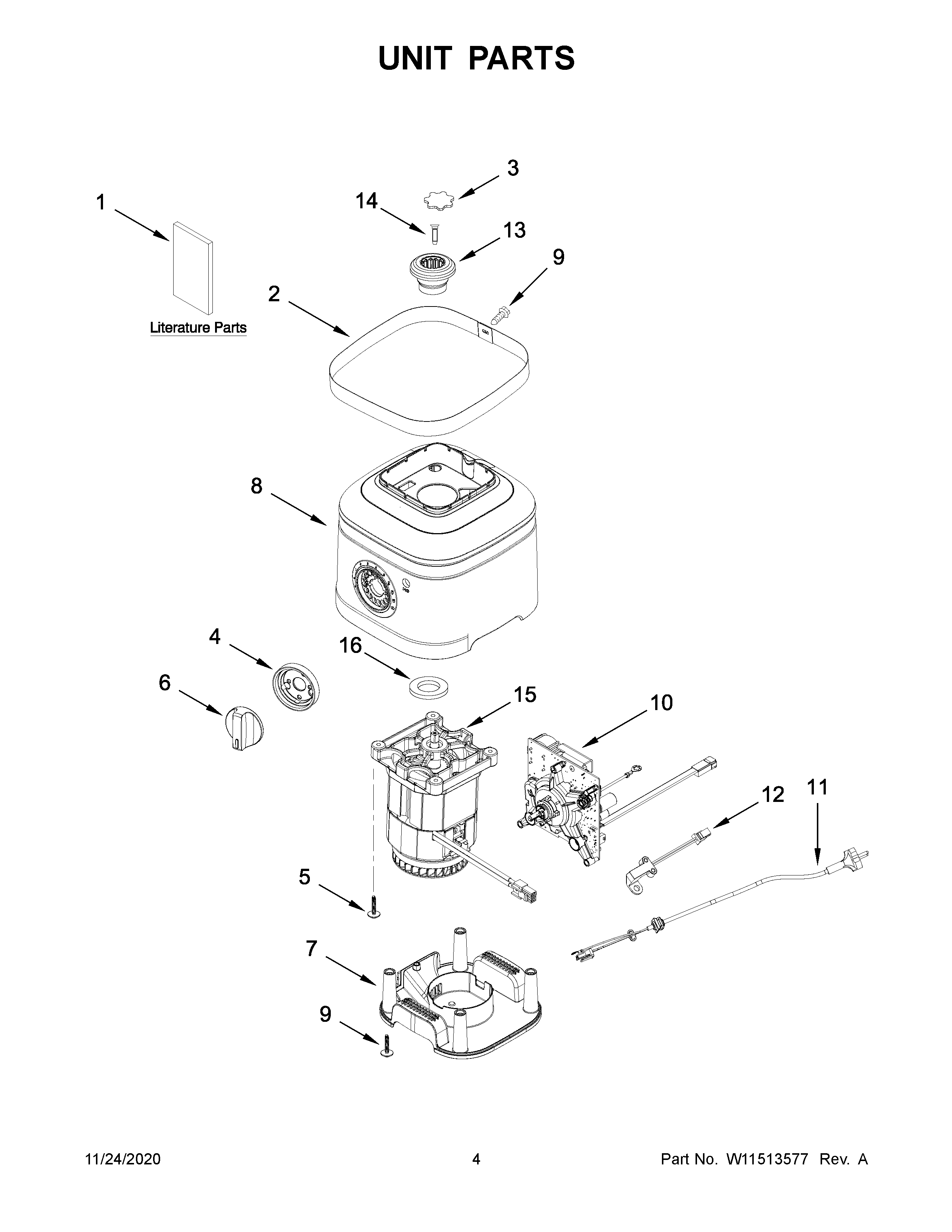

5KSB1325BDG0 03 – UNIT PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8E	UPPER BASE (BLUE VELVET)
8B	UPPER BASE (ALMOND CREAM)
8	UPPER BASE (ONYX BLACK)
8A	UPPER BASE (EMPIRE RED)
8C	UPPER BASE (BLACK MATTE)
8D	W11212371 Whirlpool Housing
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	REED SWITCH
13	COUPLER
14	W11486756 Whirlpool Screw
15	MOTOR
16	WP9709366 Whirlpool Seal
