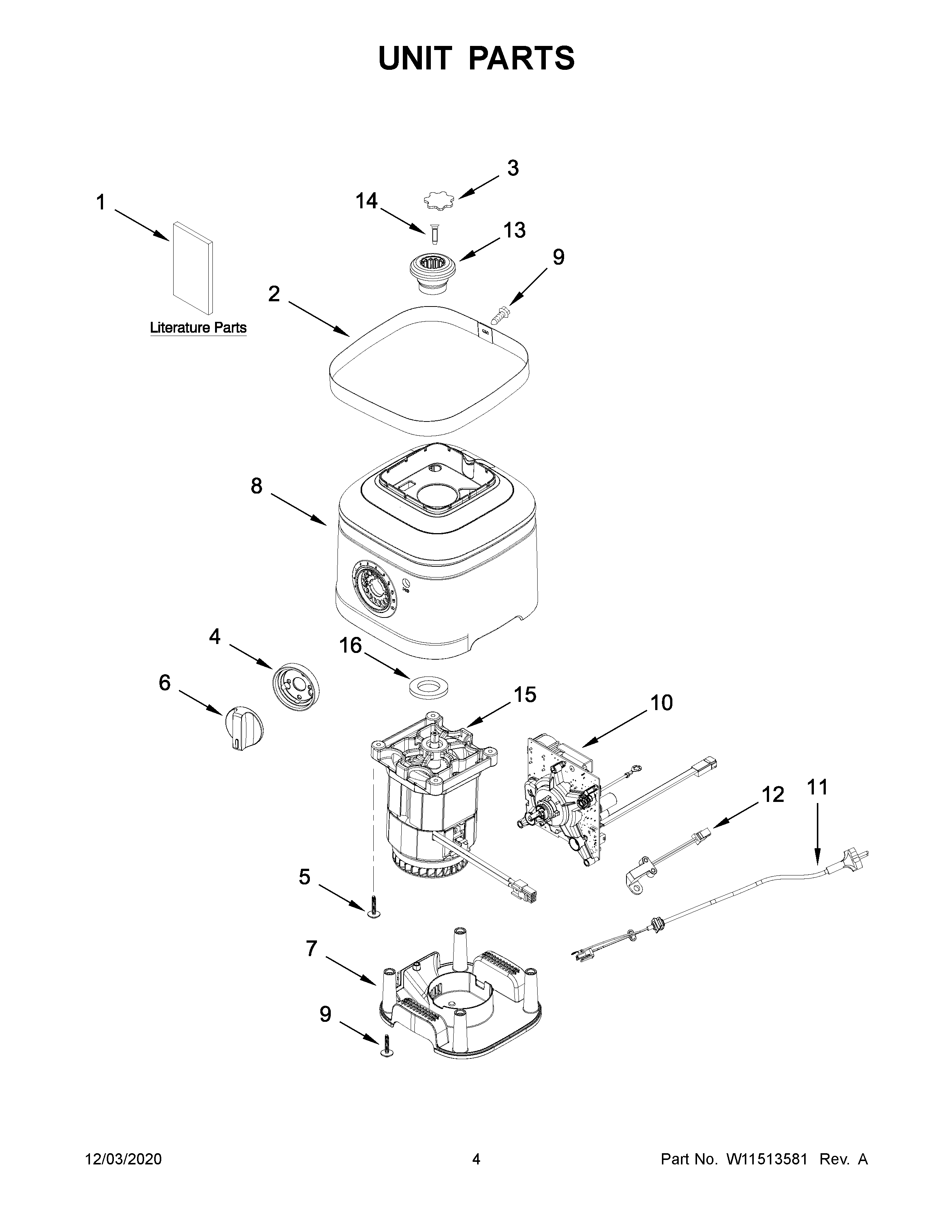

5KSB1325EVB0 03 – UNIT PARTS

Products

PositionProduct
1OWNER'S MANUAL
2TRIMBAND
3W11486757 Whirlpool Coupling
4BEZEL, ROTARY SWITCH
5WP3395530 Whirlpool Screw
6KNOB, ROTARY SWITCH
7BASE
8DUPPER BASE (ONYX BLACK)
8EUPPER BASE (PASSION RED)
8GUPPER BASE (WHITE)
8BW11212371 Whirlpool Housing
8UPPER BASE (ALMOND CREAM)
8AUPPER BASE (BLACK MATTE)
8CUPPER BASE (EMPIRE RED)
8FUPPER BASE (BLUE VELVET)
9SCREW
10ELECTRONIC CONTROL
11POWER CORD
12REED SWITCH
13COUPLER
14W11486756 Whirlpool Screw
15MOTOR
16WP9709366 Whirlpool Seal
17W10912260 Whirlpool Shim
